462 Keysight EXG and MXG X-Series Signal Generators User’s Guide

Troubleshooting

Front Panel Tests

Self Test Overview

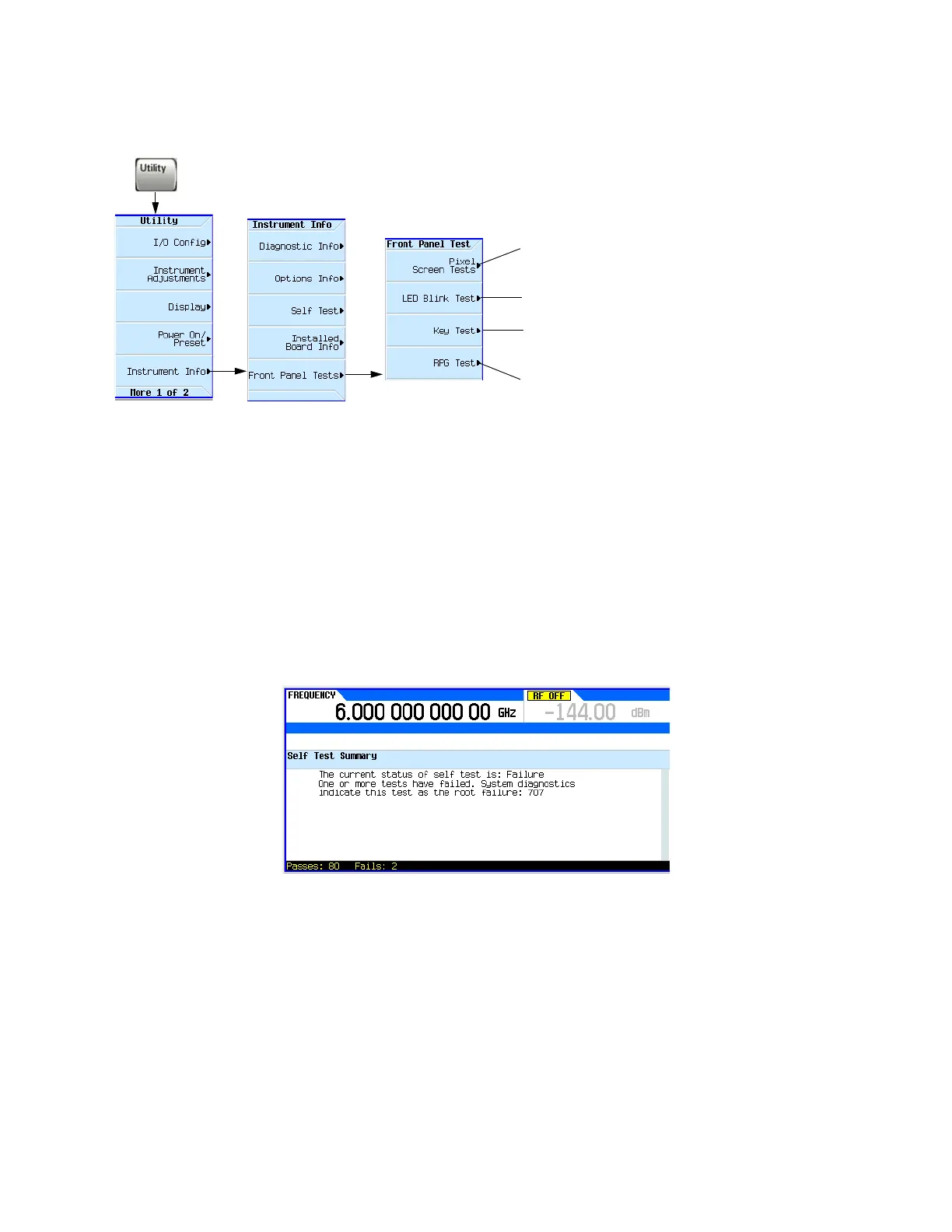

The self test is a series of internal tests that checks different signal generator functions. The self

test, is also available by via the remote web interface. For more information on the Web-Enabled

MXG, refer to the Programming Guide.

Set all display pixels to the selected color.

To return to normal operation, press any key.

Blink RF On/Off, Mod on/Off, and More LEDs

Correct operation:

Full CCW = 10

Full CW = 10

Displays a keyboard map.

As you press a key, the map indicates the key

location.

For details on each key, use key help

as described on page56.
