Keysight EXG and MXG X-Series Signal Generators User’s Guide 317
Using Multitone and Two-Tone Waveforms for N5172B/82B with Option 430 and 653/655/656/657
Using Two–Tone Softkeys
Using Two–Tone Softkeys
In the following sections, this chapter describes the two–tone mode, which is available only in
Keysight X-Series vector signal generators with Option 430:
— Creating a Two–Tone Waveform on page 318
— Viewing a Two–Tone Waveform on page 318
— Minimizing Carrier Feedthrough on page 319
— Changing the Alignment of a Two–Tone Waveform on page 320
See also: Saving a Waveform’s Settings & Parameters on page 163

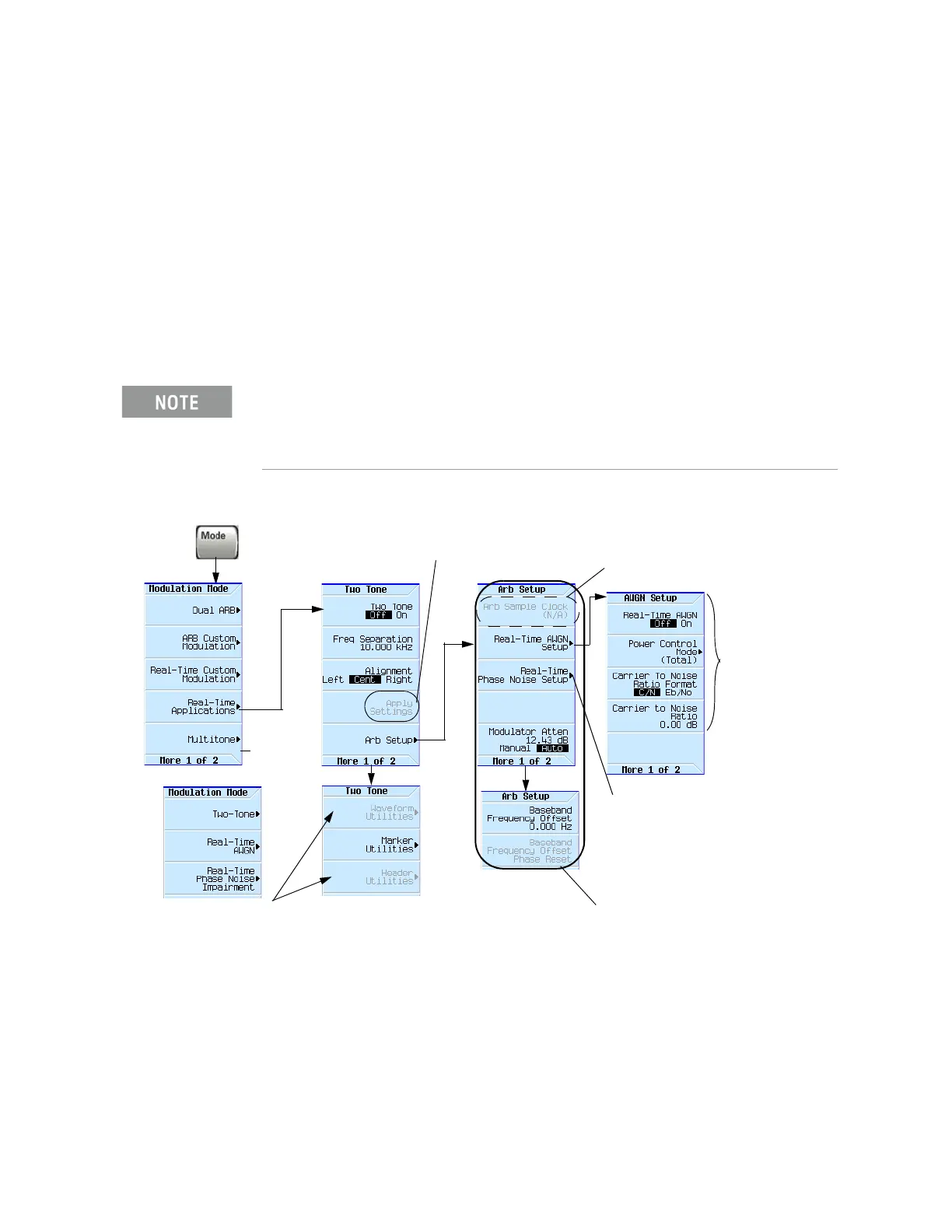

Two–Tone Softkeys
For more information about two–tone waveform characteristics, and the
two–tone standard, download
Application Note 1410 from our website by
going to
http://www.keysight.com and searching for “AN 1410” in Test &
Measurement.
Becomes active when a change is made to the Freq
Separation or Alignment Softkeys.
Becomes active when Two Tone is
turned On.
Active when Two–
Tone enabled.
For softkey usage,
see page154.
page324
For details on each key, use key help as described on page56.
page312
page332
see page154
(Two–Tone’s Arb Setup is similar to the Dual Arb Setup.)
Exceptions:
> No Waveform Runtime Scaling softkey,
> No Multi–BBG Sync Setup softkey, and
> No DAC Over–Range Protection softkey
To Next Page
