434 Keysight EXG and MXG X-Series Signal Generators User’s Guide
Using the N5102A Digital Signal Interface Module for N5172B/82B with Option 003/004 and
653/655/656/657
Operating the N5102A Module in Output Mode
Operating the N5102A Module in Output Mode
This section shows how to set the parameters for the N5102A module using the signal generator UI
in the output direction. Each procedure contains a figure that shows the softkey menu structure for
the interface module function being performed.
Setting up the Signal Generator Baseband Data
The digital signal interface module receives data from a baseband source and outputs a digital IQ
or digital IF signal relative to the selected logic type. Because a signal generator provides the
baseband data, the first procedure in operating the interface module is configuring the signal
generator using one of the real-time or ARB modulation formats, or playing back a stored file using
the Dual ARB player. For information on configuring the signal generator, refer to Chapter 8, “Basic
Digital Operation for N5172B/82B with Options 653/655/656/657”, on page 151.
1. Preset the signal generator.
2. Select the modulation format (GSM, Custom, and so forth) and set the desired parameters.
3. Turn-on the modulation format.
Accessing the N5102A Module User Interface

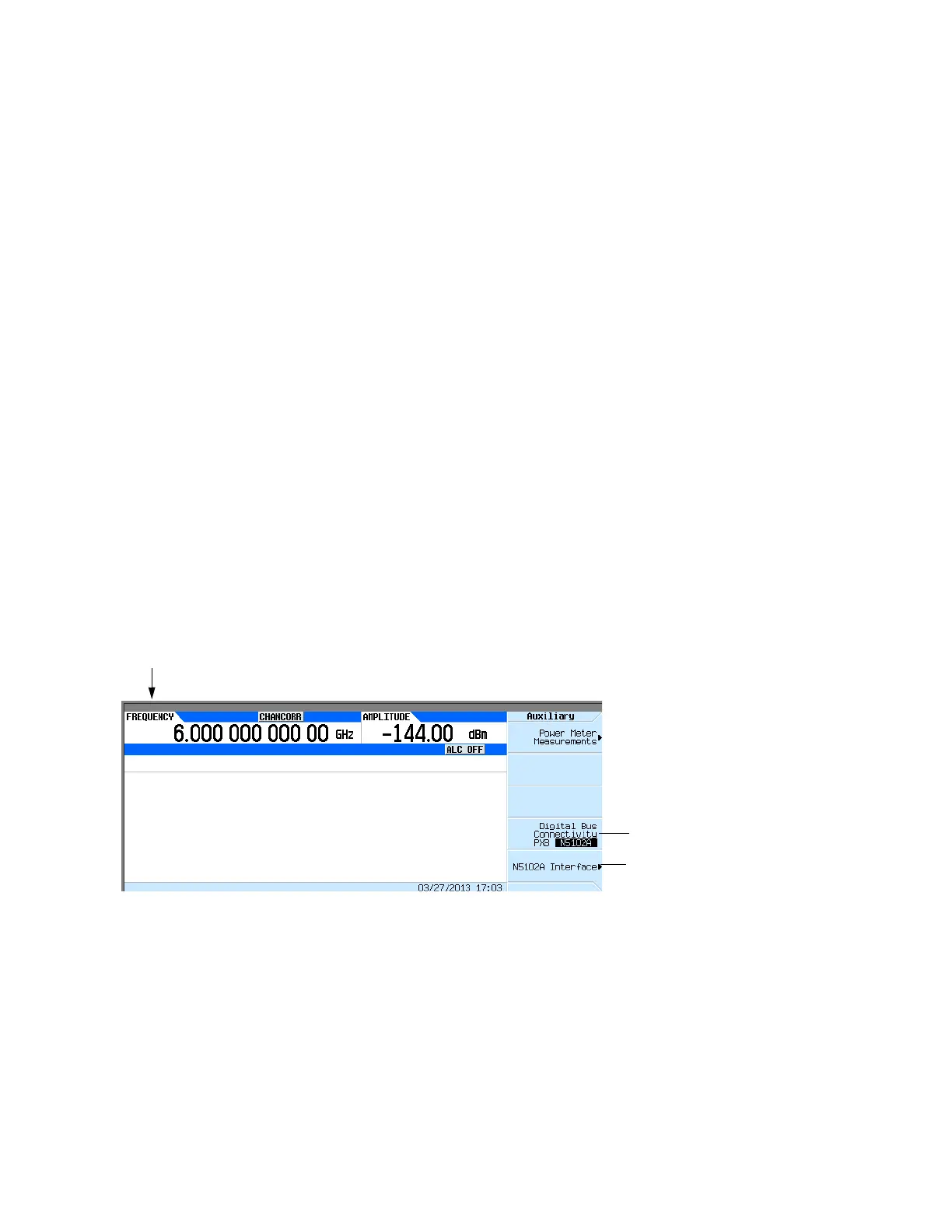

Figure 17-9 shows the Auxiliary menu that is accessed by pressing the Aux Fctn key on the front
panel of the signal generator.
Figure 17-9 First-Level Softkey Menu
Select either PXB or N5102A
connectivity.
The default selection is N5102A.
Aux Fctn
Press here to access the N5102A
menu.
To Next Page
