Keysight EXG and MXG X-Series Signal Generators User’s Guide 195

Basic Digital Operation for N5172B/82B with Options 653/655/656/657

Clipping a Waveform

How Power Peaks Cause Spectral Regrowth

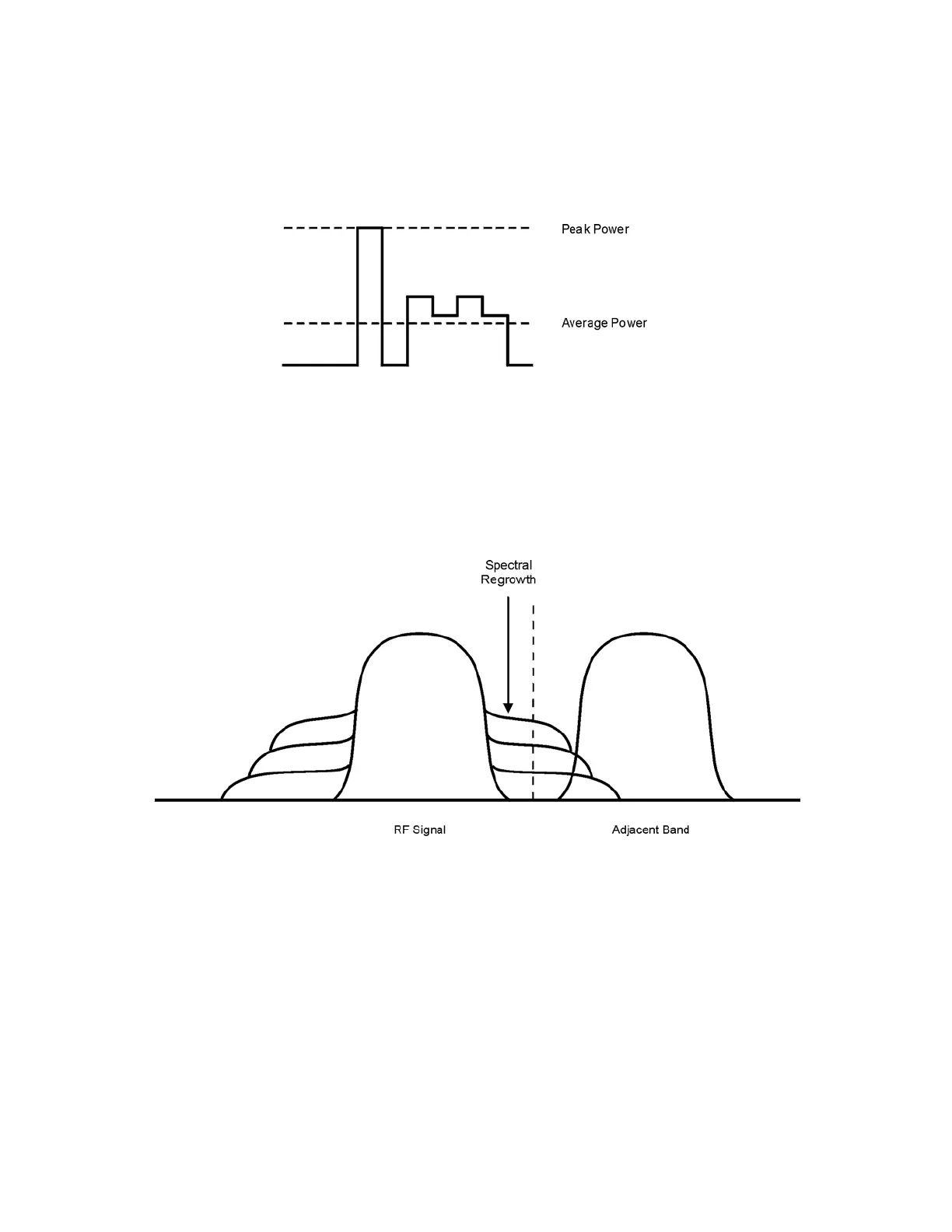

In a waveform, high power peaks that occur infrequently cause the waveform to have a high peak–

to–average power ratio, as illustrated in the following figure.

Because the gain of a transmitter’s power amplifier is set to provide a specific average power, high

peaks can cause the power amplifier to move toward saturation. This causes the intermodulation

distortion that generates spectral regrowth. Spectral regrowth is a range of frequencies that

develops on each side of the carrier (similar to sidebands) and extends into the adjacent frequency

bands (see the following figure). Clipping provides a solution to this problem by reducing the peak–

to–average power ratio.
