78 Keysight EXG and MXG X-Series Signal Generators User’s Guide
Front Panel Operation for All Models
Working with Files (Viewing/Storing/Loading/Moving)

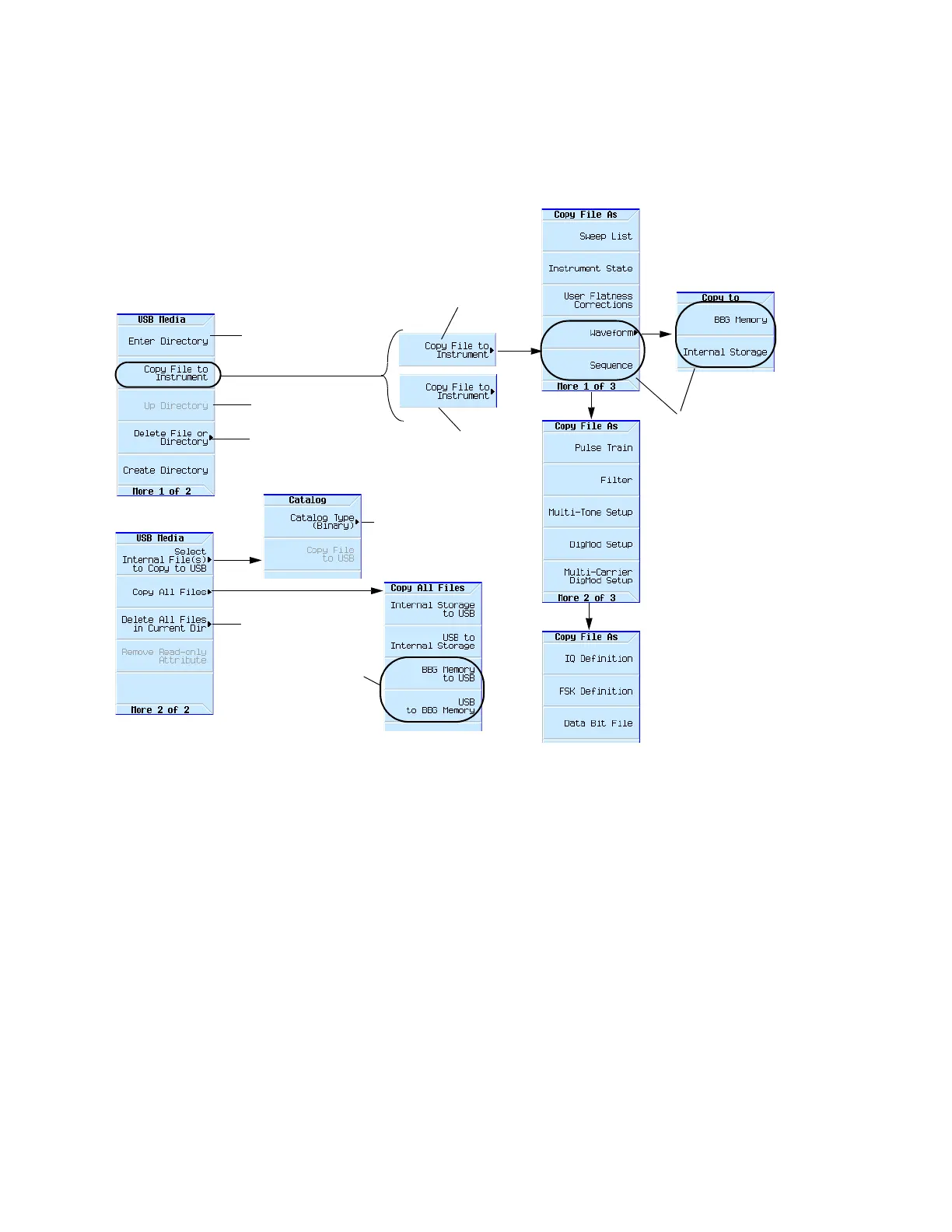

Moving a File from One Media to Another
Use the USB Media Manager to move files between USB and internal media.
Working with Instrument State Files
— Saving an Instrument State on page 80
— Saving a User Preset on page 80
— Recalling an Instrument State on page 80
— Recalling an Instrument State and Associated Waveform File on page 81
— Recalling an Instrument State and Associated List File on page 81
— Moving or Copying a Stored Instrument State on page 82
Selecting a waveform or
an unknown file type
displays this softkey.
File > Catalog Type > <type> > More > USB File Manager
or
File > More > USB File Manager
or
Insert the USB Flash Drive (UFD)
For details on each key, use key help as described on page56.
This key changes,
depending on the selected
file. See page77
Whether a menu is available
depends on the selected file.
Requires confirmation
Catalog Type Menu
page73
Requires confirmation
Moves up one directory level
These
softkeys are
These
softkeys
If the file type is recognized
the “Filename.xxx copied
to Internal Storage” is
displayed.
To Next Page
