Using BERT for N5172B/82B with Option UN7

Bit Error Rate Test

Triggering

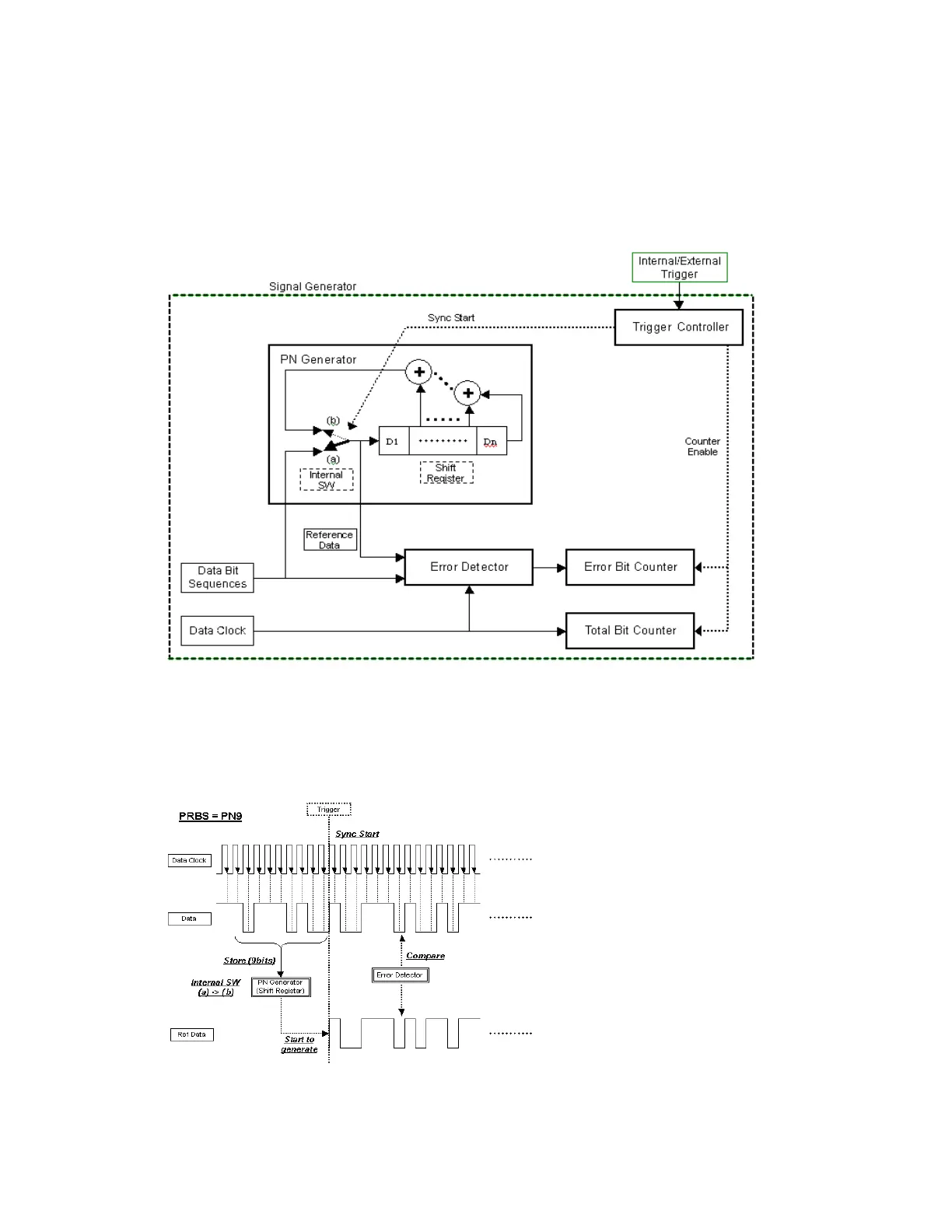

This section describes the operating principles of the triggering function for Option UN7. To see the

signal flow of the triggering function refer to Figure 16-7.

Figure 16-7

In this example, the triggering sequence is where you have an incoming data clock and data bit

sequences, the trigger is active, and the BERT measurement begins. Refer to Figure 16-8.

Figure 16-8
