76 Keysight EXG and MXG X-Series Signal Generators User’s Guide

Front Panel Operation for All Models

Working with Files (Viewing/Storing/Loading/Moving)

Storing a File

Several menus enable you to store instrument parameters. For example, you can store instrument

states, lists, and waveforms.

— An instrument state file contains instrument settings. For this type of file, use the Save key

shown in Figure 4-9 on page 79.

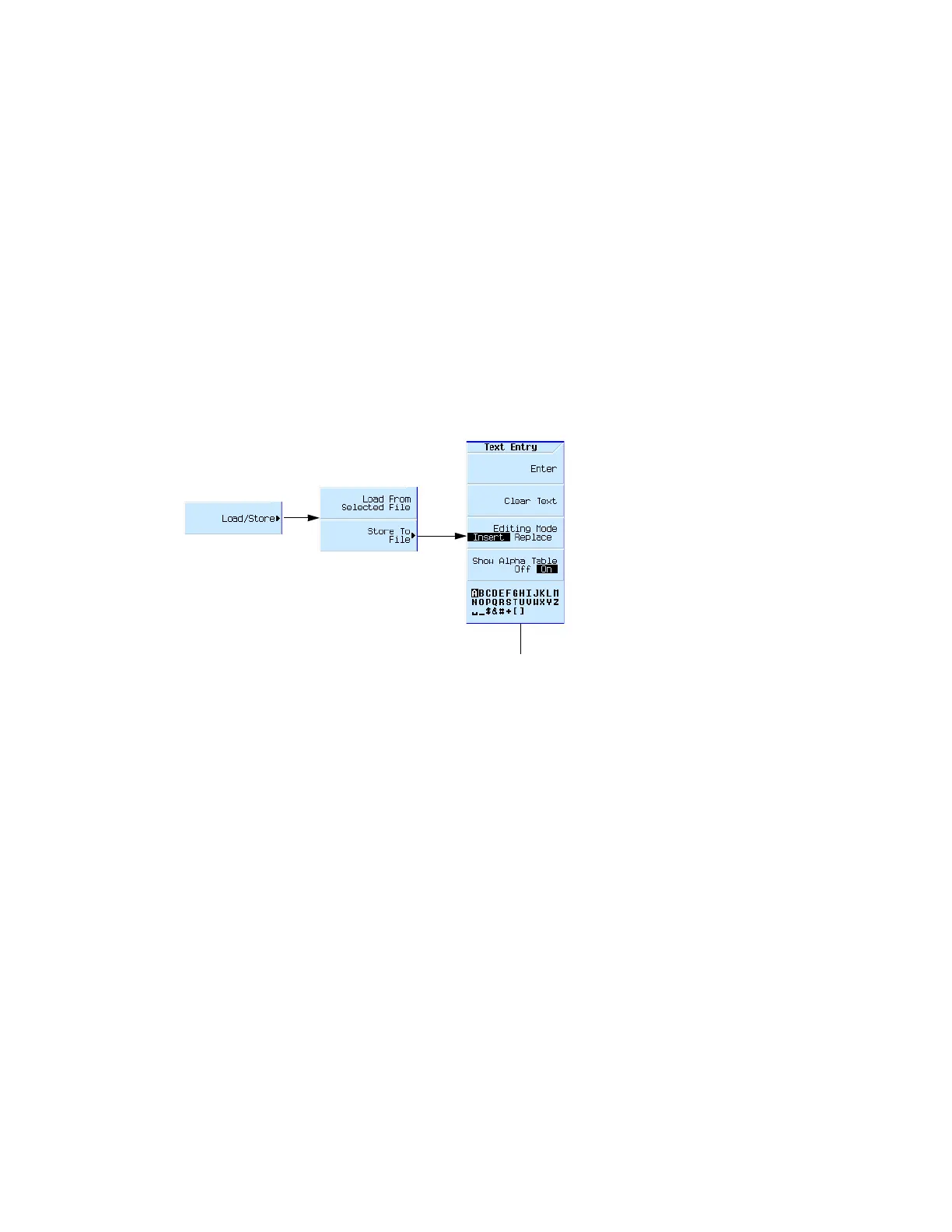

— For other types of data, use the Load/Store softkey (shown below) that is available through the

menu used to create the file.

Use this menu to enter the file name,

as described on page57.

For details on each key, use key help as described on page56.

File Type

List

State

Waveform

User Flatness

User Preset

Pulse Train

Save From

Sweep menu

Save menu

Mode menu

Amplitude menu

User Preset menu

Pulse Train menu

File Length (including extension)

Internal Media: 25 characters

USB Media: 39 characters

Default Chapter5
