Keysight Technologies N5183B MXG - Using the Arbitrary Waveform Generator

258 Keysight EXG and MXG X-Series Signal Generators User’s Guide
Using Custom Digital Modulation for N5172B/82B with Option 431 and 653/655/656/657
Using ARB Custom Modulation Softkeys

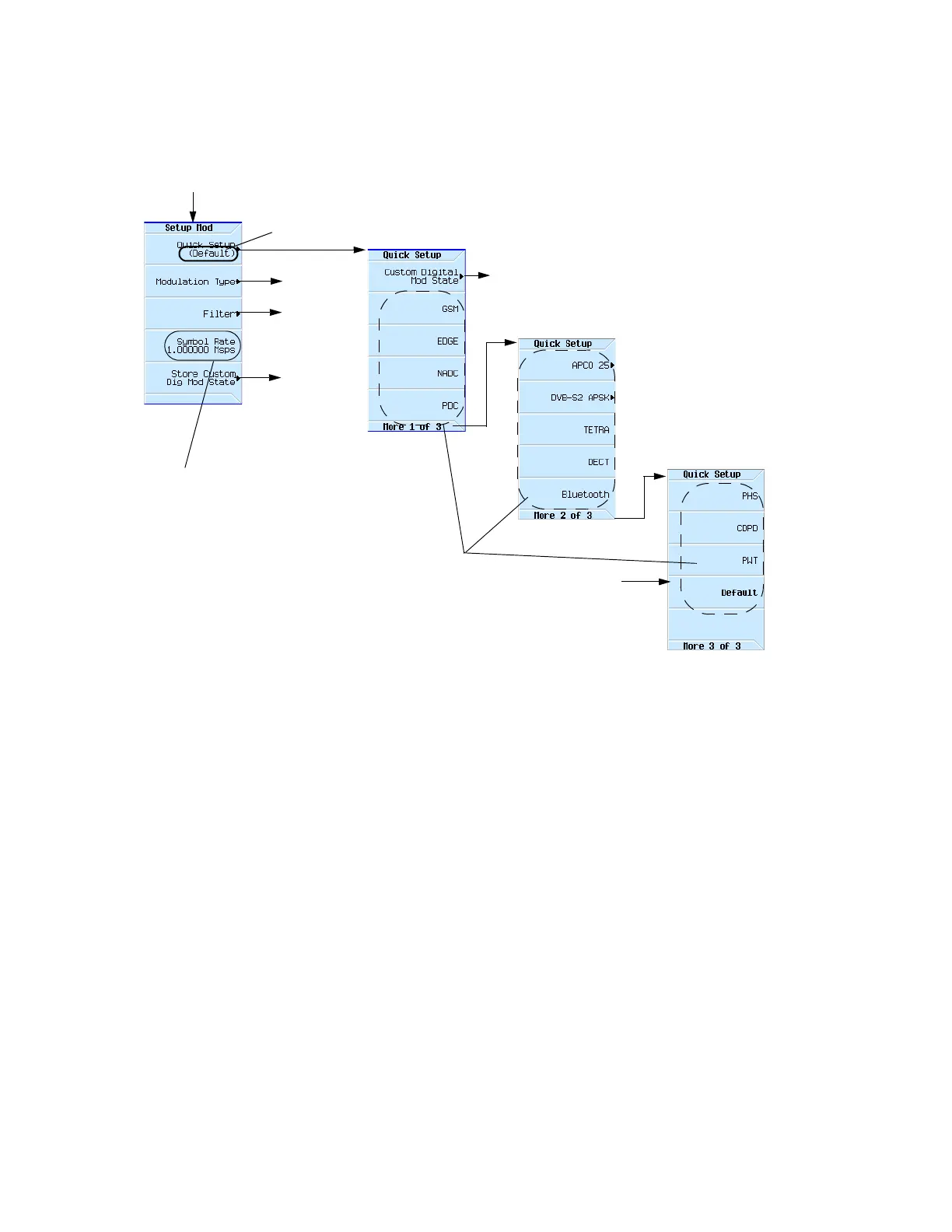

Figure 9-2 ARB Custom Modulation, Quick Setup Softkeys
page259
page292
page281
Mode > ARB Custom Modulation > Single Carrier Setup
page260
This softkey label shows the currently
selected modulation standard.
Press Symbol Rate
softkey and use
numeric keypad to
change value as
required.
The default (initial)
Symbol Rate
maximum range value
is dependent upon the
modulation standard
selected with the
Quick Setup softkey.
When one of these pre–defined
modulation standards is selected,
default values for components of the
setup (including filter, symbol rate, and
modulation type) are automatically
specified.
For details on each key, use key help as described on page56.
Default: This softkey selects the
following default settings:
Modulation Type = QPSK,
Symbol Rate = 1 Msps,
Filter = Root Nyquist, and
Filter Alpha = 0.5
