424 Keysight EXG and MXG X-Series Signal Generators User’s Guide

Using the N5102A Digital Signal Interface Module for N5172B/82B with Option 003/004 and

653/655/656/657

Clock Timing

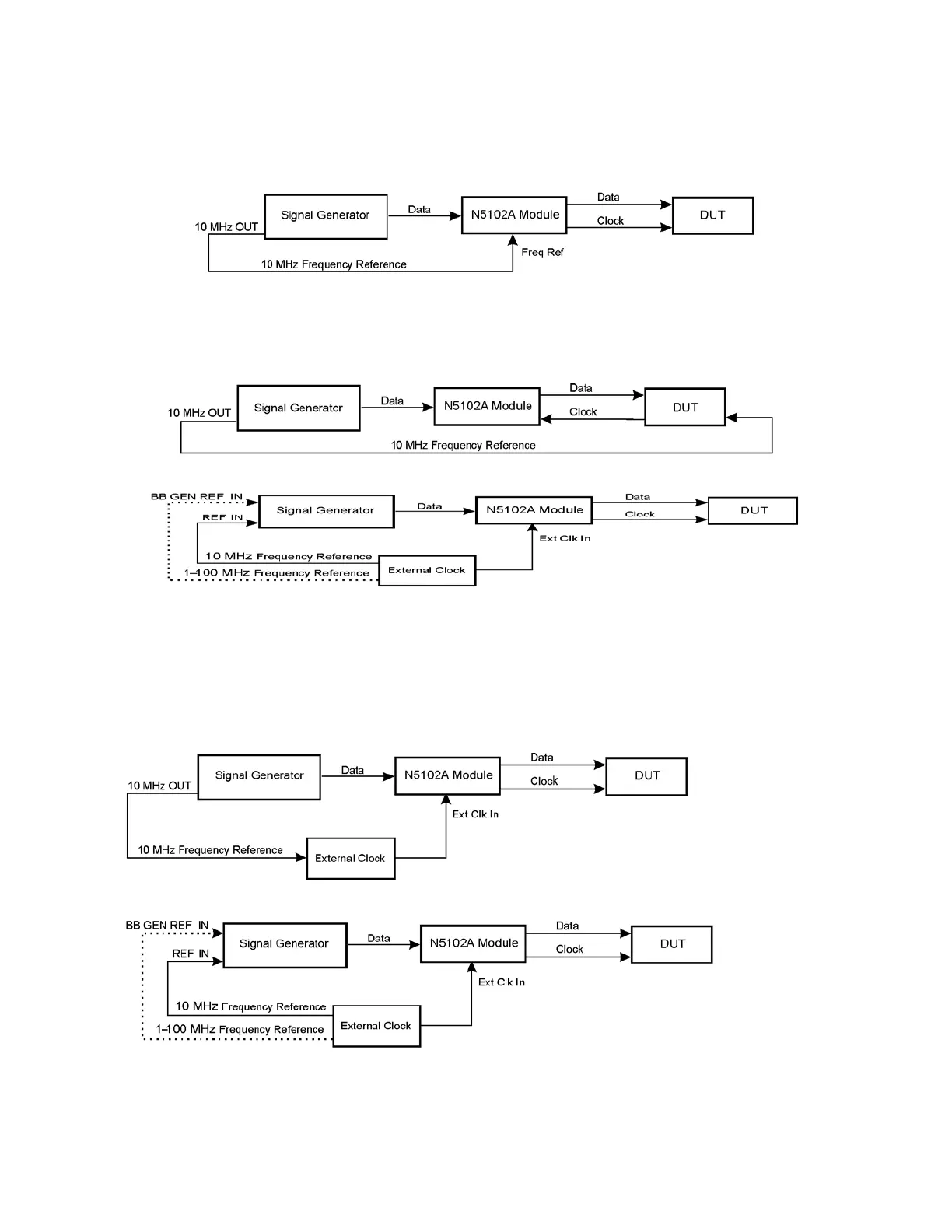

Figure 17-3 Frequency Reference Setup Diagrams for the N5102A Module Clock Signal

NOTE

: Use only one of the two signal generator frequency reference inputs.

Internally Generated Clock

Device (DUT) Supplied Clock

NOTE

: Use only one of the two signal generator frequency reference inputs.

Externally Supplied Clock
