Keysight Technologies N5183B MXG - Operating the N5102 A Module in Input Mode

426 Keysight EXG and MXG X-Series Signal Generators User’s Guide
Using the N5102A Digital Signal Interface Module for N5172B/82B with Option 003/004 and
653/655/656/657

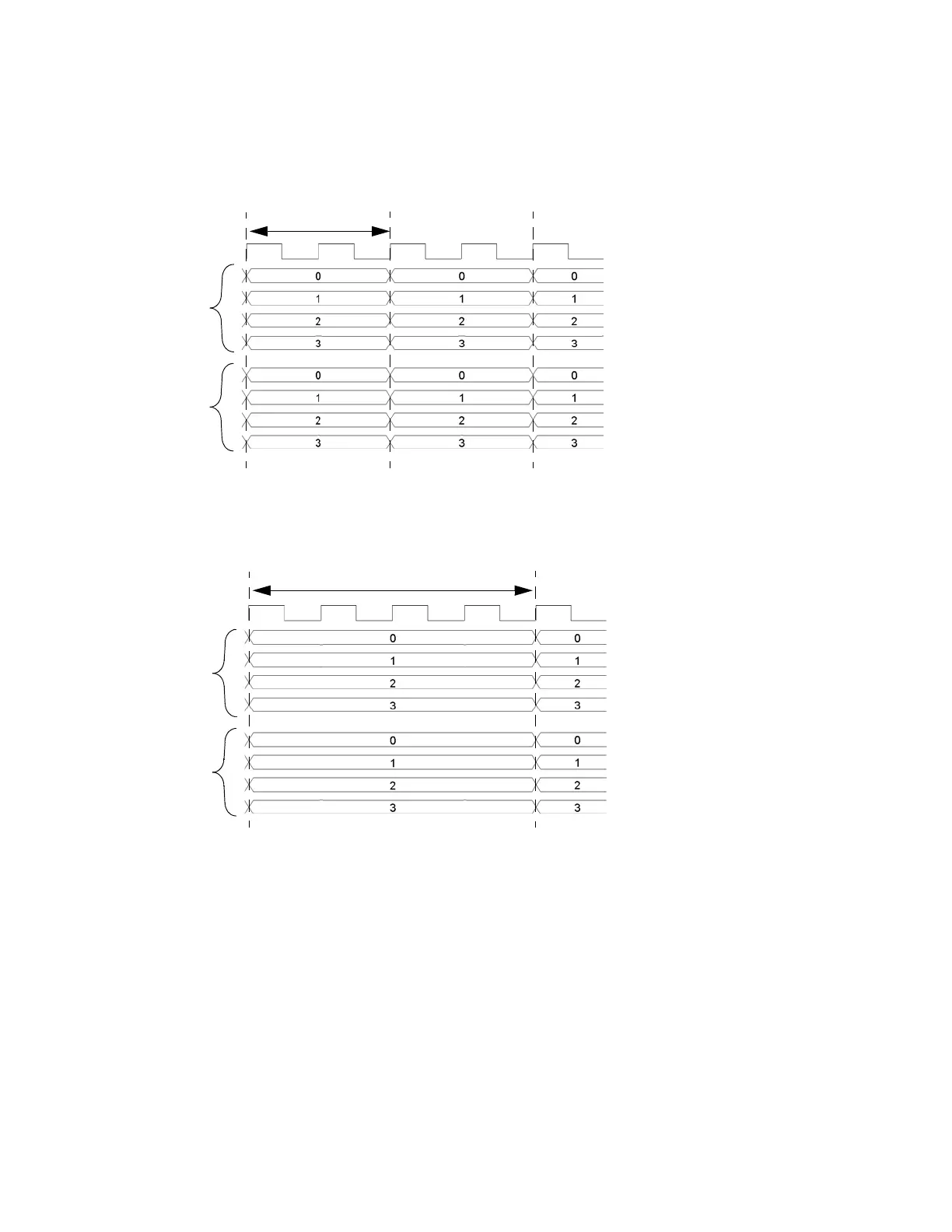

Clock Timing
1 Sample Period
4 Clocks Per Sample
4 Clocks
Sample rate decreases by a factor of four
I sample
Q sample
Clock
4 bits per word
4 bits per word
1 Sample Period
2 Clocks Per Sample
2 Clocks
I sample
Q sample
Sample rate decreases by a factor of two
Clock
4 bits per word
4 bits per word
