Keysight N5221A/22A Service Guide 3-25
Tests and Adjustments
System Verification
Kit Substitution
Non-Keysight calibration kits and verification kits are not recommended nor
supported.
System Verification Procedure
1. If you desire printed test outputs, connect a printer to the analyzer. For the
printer, ensure that the correct driver is loaded and the printer is defined
as the default printer. Refer to the embedded help in the analyzer for
printer setup. Let the analyzer warm up for at least 90 minutes.
2. Insert the verification kit disk into the analyzer disk drive.
3. Press UTILITY , then , then . The
System Verification dialog box is displayed; refer to Figure 3-10.

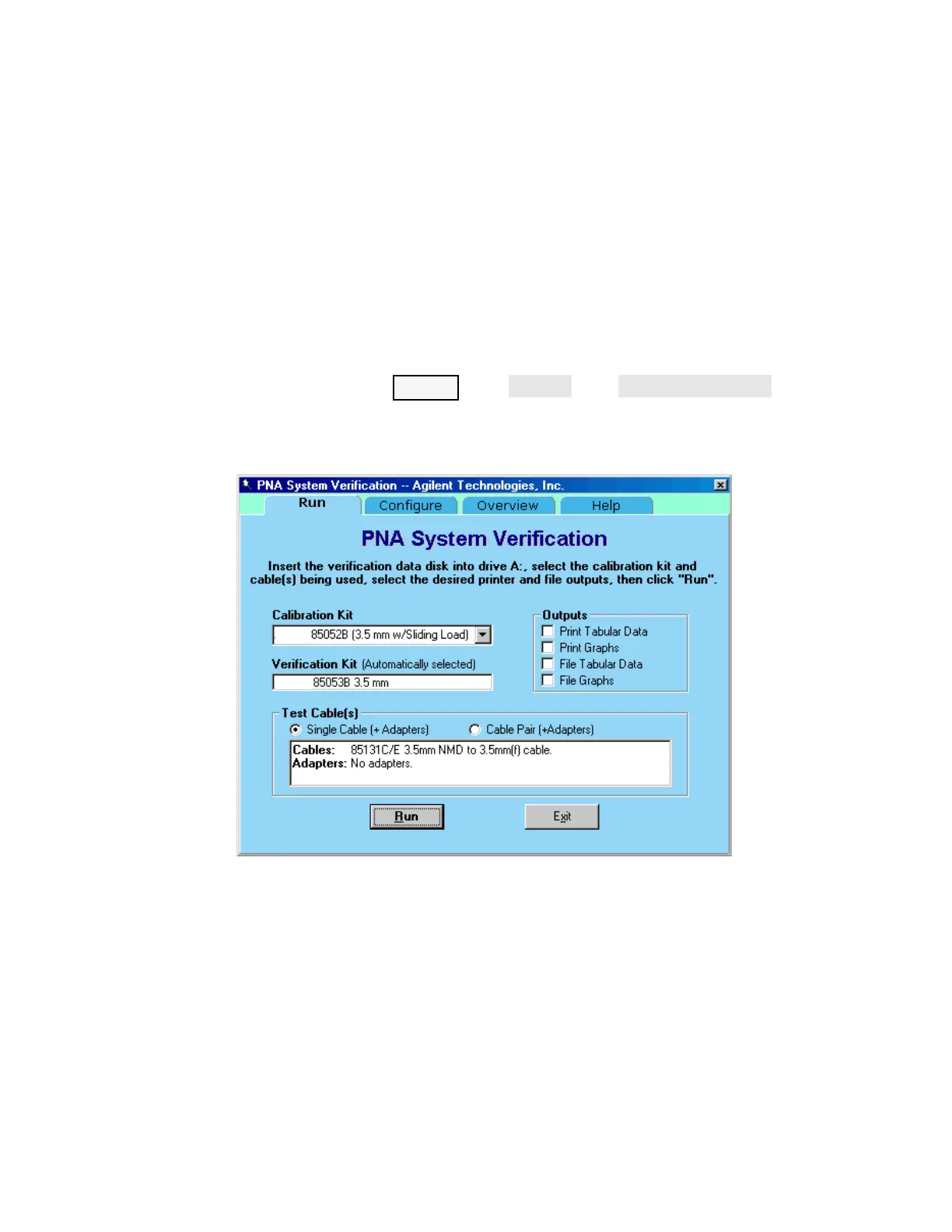

Figure 3-10 System Verification Dialog Box
4. In the Calibration Kit box, select the calibration kit or electronic calibration
module (ECal) that is being used by clicking on it. The corresponding
verification kit to use is selected for you and displayed in the Verification
Kit box. Refer to Figure 3-10.
5. Under Printer Output, click one of the following options. Refer to Figure
3-10.
— Print Tabular Data: Prints the verification data in tabular form which
includes measured data and uncertainty limits. For an example,
refer to Figure 3-12 on page 3-28.
To Next Page
