Chapter 1 31
Introducing the N8241/2A AWGs
Verifying System Operation

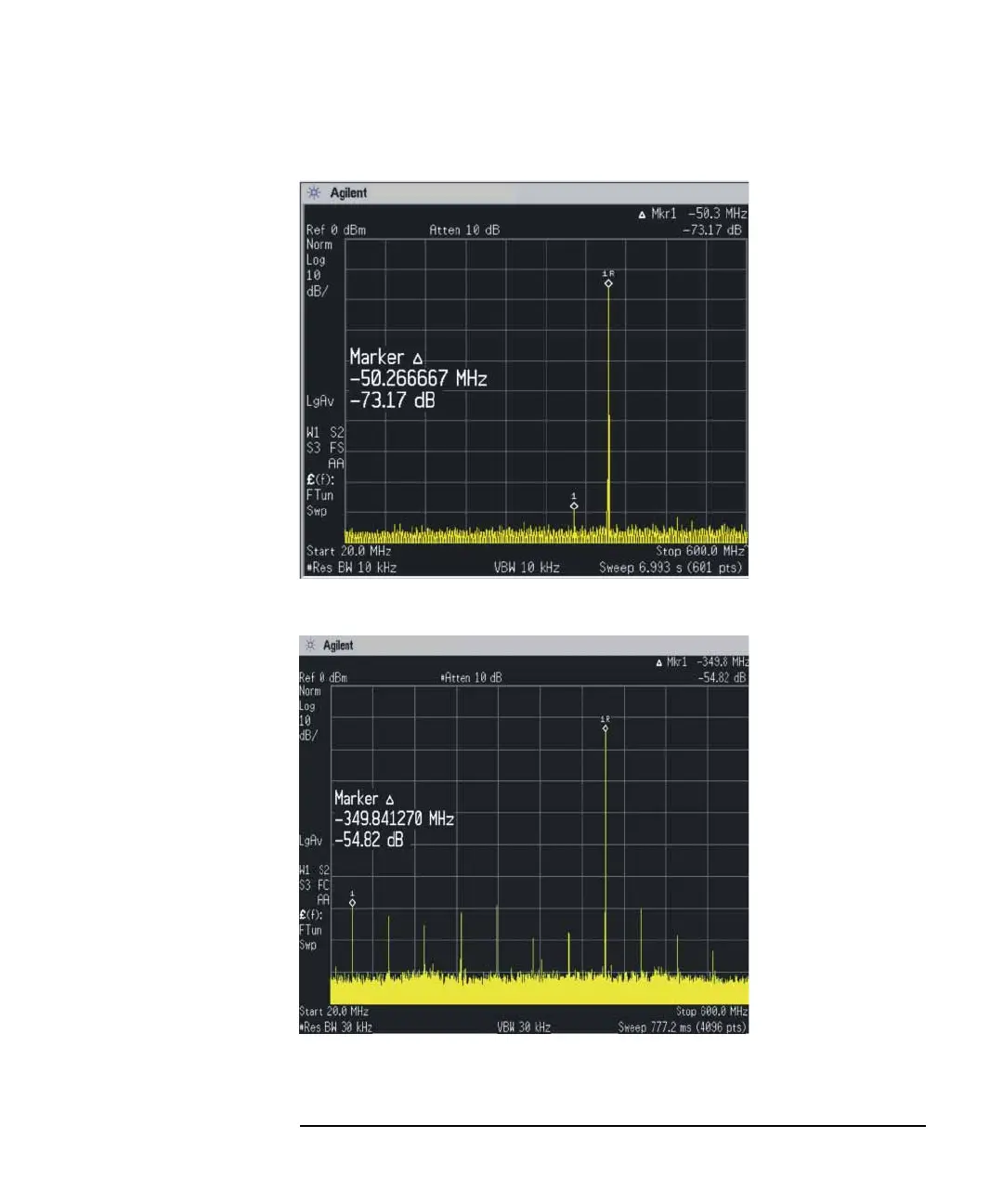

Figure 1-4 N8241A Playback of a 400 MHz Tone
Figure 1-5 N8242A Playback of a 400 MHz Tone
7. You should get the same performance when you connect channel 2 positive (+)
to the spectrum analyzer RF input connector.
