38 Chapter 2
Basic Operation
Using the Graphical User Interface
configured correctly.

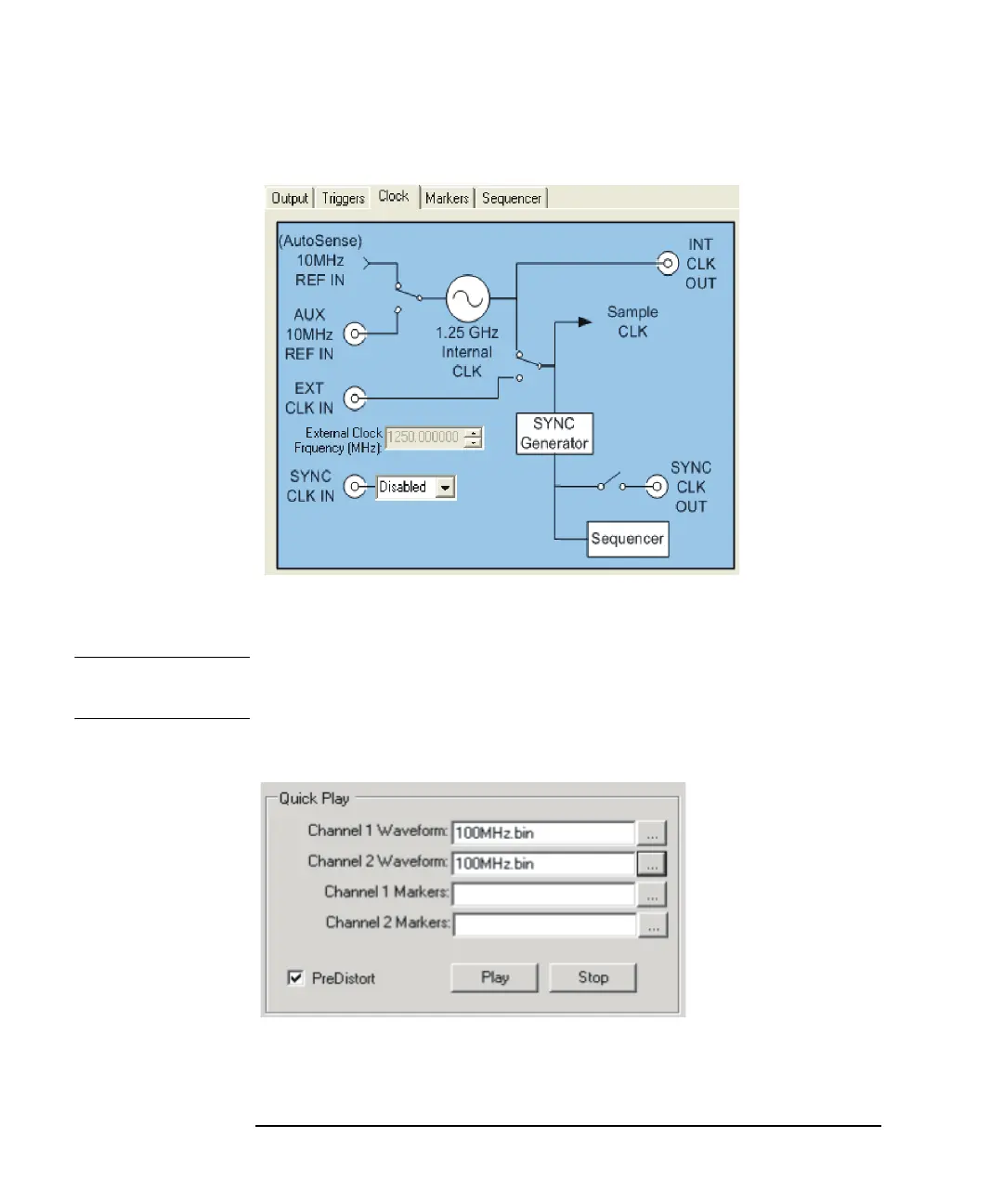

7. In the Quick Play section of the user interface, browse and select the desired
single-tone waveform file for Channel 1 Waveform. The AWG accepts data
formatted as 16-bit signed integers ignoring the LSB.
NOTE Different waveforms can be loaded into channel 1 and 2, but the length of the
waveforms must be the same.
8. Use the default setting for the play mode and predistortion.
9. Click Play.
Figure 2-1 and Figure 2-2 display a 100 MHz waveform played back on the
N8241A and N8242A respectively. The SFDR is greater than –70.0 dBc for the
To Next Page
