Keysight E36300 Series User Manual

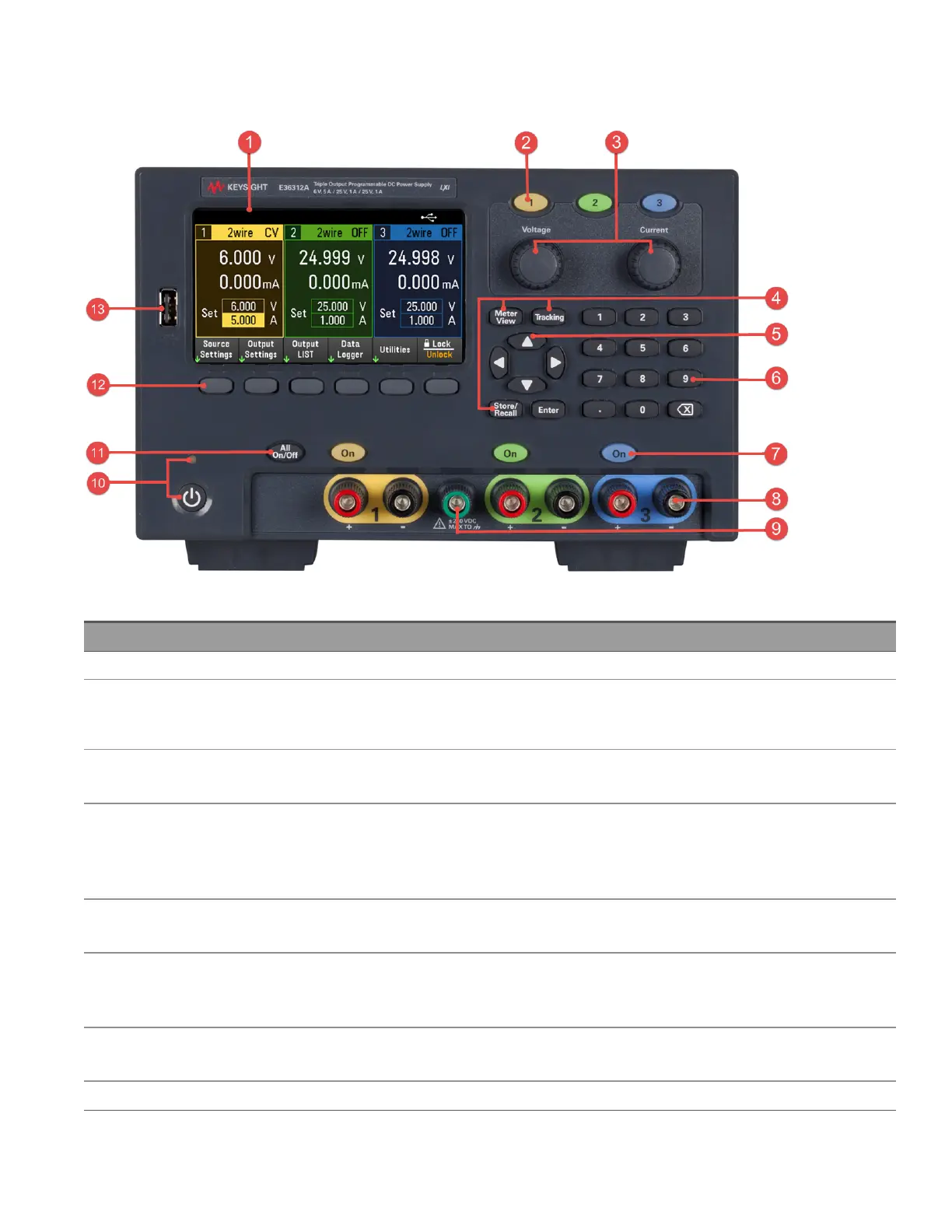

Front panel at a glance
Item Description
1 Information-packed, high contrast LED display; easily viewable even from sharp angles
2 Output selection keys
Selects an output to control. The lit key indicates the selected output.
Tip: When this key is selected, pressing this key again will toggle between multiple and single output view.
3 Voltage/Current knobs
Set the voltage and current of the selected output.
4
Meter View, Tracking and Store/Recall keys
– [Meter View] turns on the meter view for the selected output.
– [Tracking] turns on or off the track mode for output 2 and 3. (E36312A and E36313A only)
– [Store/Recall] opens the Store/Recall menu.
5 Navigation keys.
– Navigate through the control dialog windows; press [Enter] key to select a control.
6 Numeric keypad
– Enters numeric values. Press [Enter] key to complete the entry.
– Deletes the values entered into the dialog using the back key.
7 Output On key
Turns individual outputs On or Off; outputs are on when the key is lit.
8 Output terminals
Keysight E36300 Series User's Guide 15
