Parallel and series connections (E36312A and E36313A only)
Parallel connections
Series connections
Parallel connections
Only connect outputs that have identical voltage and current ratings in parallel.
Connecting outputs in parallel provides a greater current capability than can be obtained from a single output.

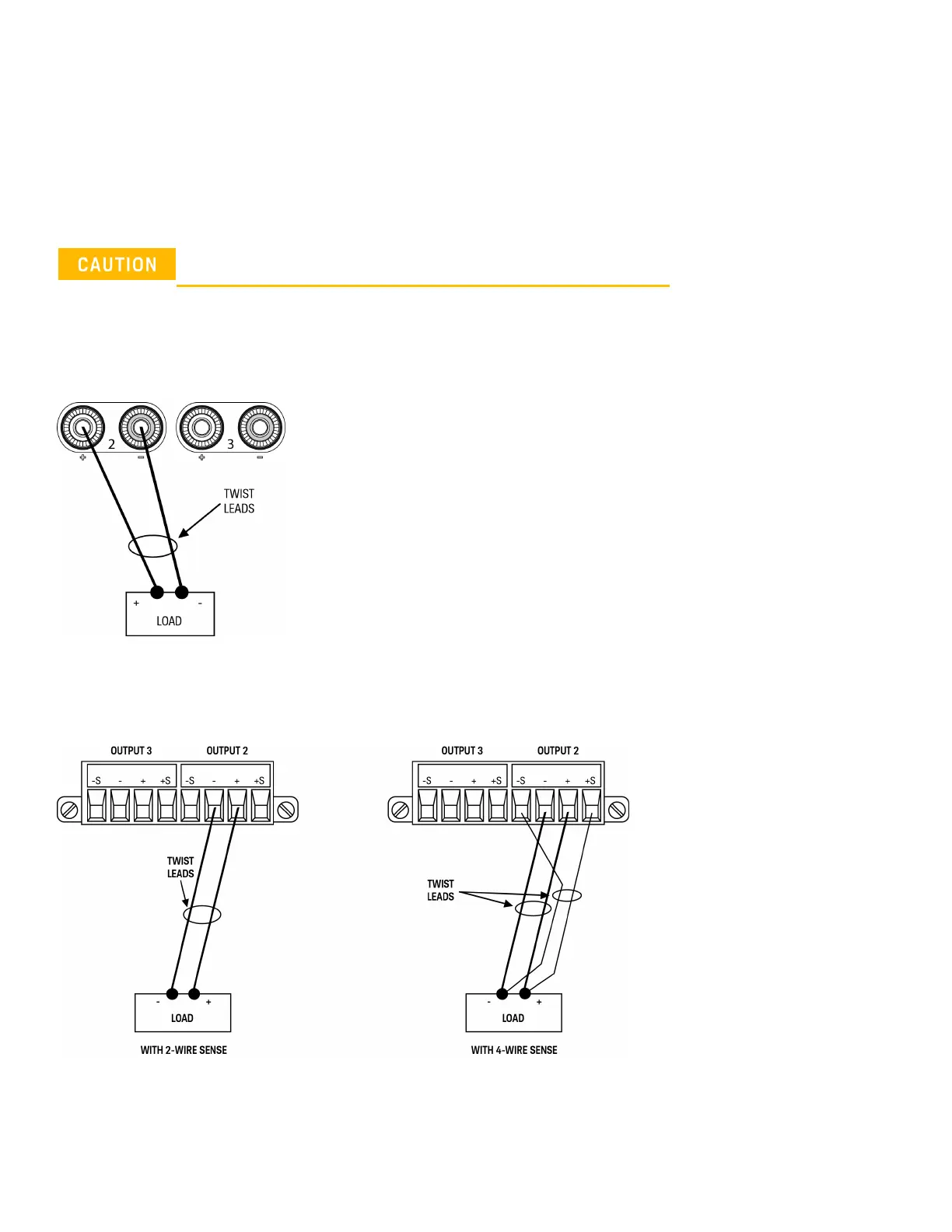

The following figures show how to connect two outputs when in Auto-Parallel mode.
Front panel
Rear panel
The figure on the left illustrates 2-wire sensing. If voltage drop in the load leads is a concern, the figure on the right
shows how to connect the sense leads directly at the load.
