Connecting the outputs
All loads should either be connected to the front panel binding post or rear panel output.

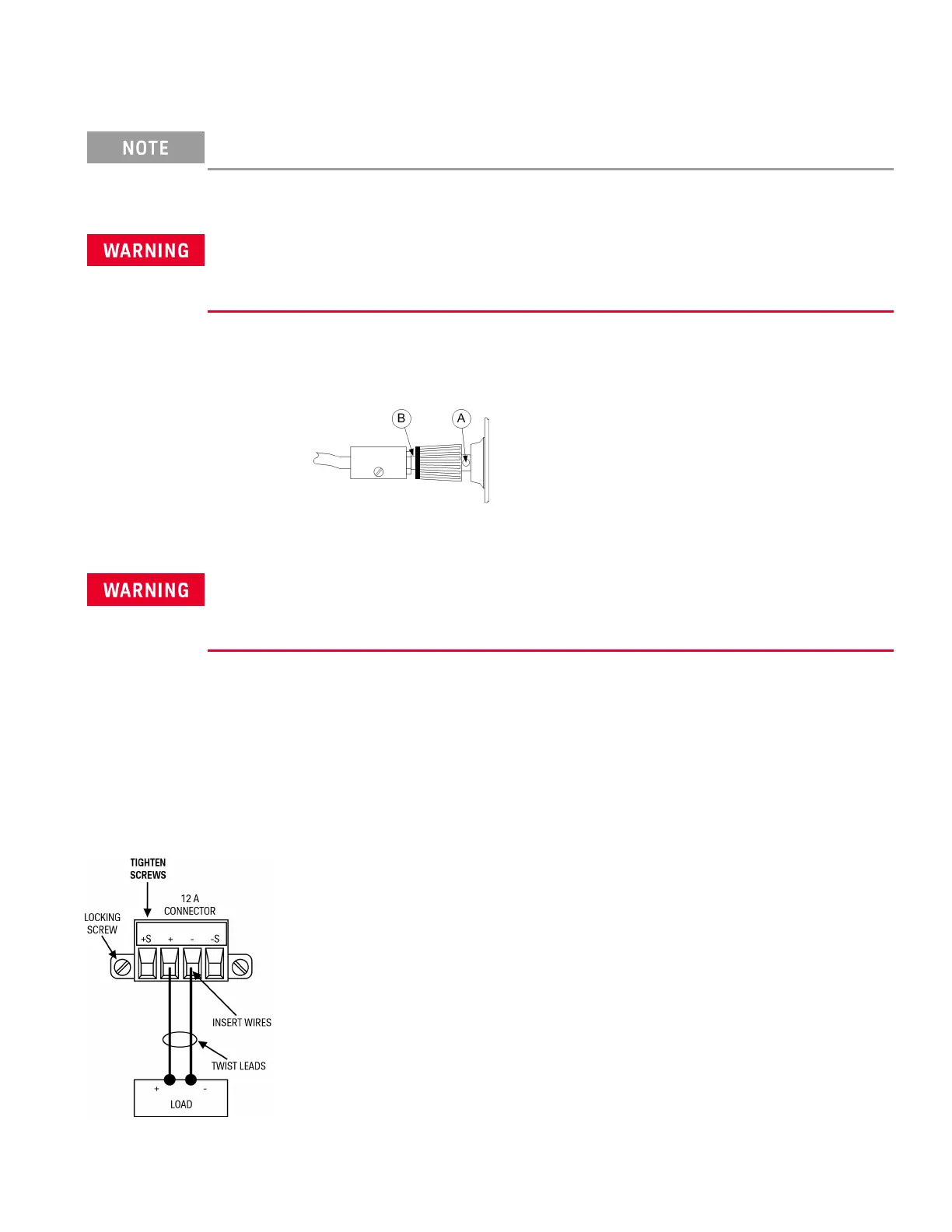

Binding posts
SHOCK HAZARD
Turn off AC power before making rear panel connections. All wires and straps must be properly connected with
the terminal block screws securely tightened.
The binding posts accept wires sizes up to AWG 14 in location (A). Securely fasten all wires by hand-tightening the
binding posts. You can also insert standard banana plugs into the front of the connectors as shown in (B). A chassis
ground binding post is located on the front panel for convenience.
Maximum current rating:
(A) = 20 A
(B) = 15 A
Rear outputs connections
SHOCK HAZARD
Turn off AC power before making rear panel connections. All wires and straps must be properly connected with
the terminal block screws securely tightened.
Disconnect the connector plug to make your wire connections. The 12 A connector plug accepts wires sizes from
AWG 12 to AWG 30. Wire sizes smaller than AWG 20 are not recommended. Connect the load wires to the + and -
terminals. Connect the sense wires to the +s and -s terminals.
Securely fasten all wires by tightening the screw terminals. Insert the connector plug into the back of the unit.
Secure the 12 A connector by tightening the locking screws. A chassis ground binding post is located next to the fan
ventilation hole for ground connections.
Part number information for the connector kit is provided under Standard Shipped Items.
Keysight E36300 Series User's Guide 27
