Items Description
4 Offset time Indicates the time that the right gridline is offset or away from the end of the data log. When this value is
zero, it means that the right gridline is positioned at the end of the data log. Adjusting the offset using the
Horizontal Offset + and Offset – in Waveform Settings will move the grid away from the end of the data log,
as indicated by the Offset Time.
5 Time elapsed Indicates the time elapsed during the data log and the total duration. The values match when data logging
finishes.
6 Filename Indicates the filename of the data that is being logged.
7 Output traces Voltage trace labels appear on the left side of the grid (V1 V2, V3) as shown in the display.
Current trace labels appear on the right side of the grid (I1, I2, I3).
Power trace labels appear on the center of the grid (P1, P2, P3).
Press Auto Scale to auto-scale the data traces.
8 Ground reference The ground reference of the trace. Ground references are offset so that they do not overlap. The ground ref-
erence offset value is referenced to the horizontal center line of the grid.
9 Grid time Displays the time on the gridline.
10 Out of view arrows Indicate that the trace, V3 in the figure, is out of view. Use the Vertical Volts/Div + and Volts/Div – or the
Vertical Offset + and Offset – in Waveform Settings to bring the trace into view. Press Auto Scale to auto-
scale the data traces.
11 Trigger point indicator Indicates the trigger position in the data log. In this example the trigger point was offset by 0% and the
post trigger data was logged. The time at the trigger point is always zero. Change the trigger offset in the
Data Logger Logging Settings.
Menu Description
13 Waveform Settings Sets the waveform display. See
Adjusting the Waveform Display
.
14 Run Stopped Run or stop data logging.
15 Properties Sets the data logging and waveform displays properties. See
Data Logger Properties and Waveform Set-
tings
.
16 Auto Scale Auto scales the traces on the display.

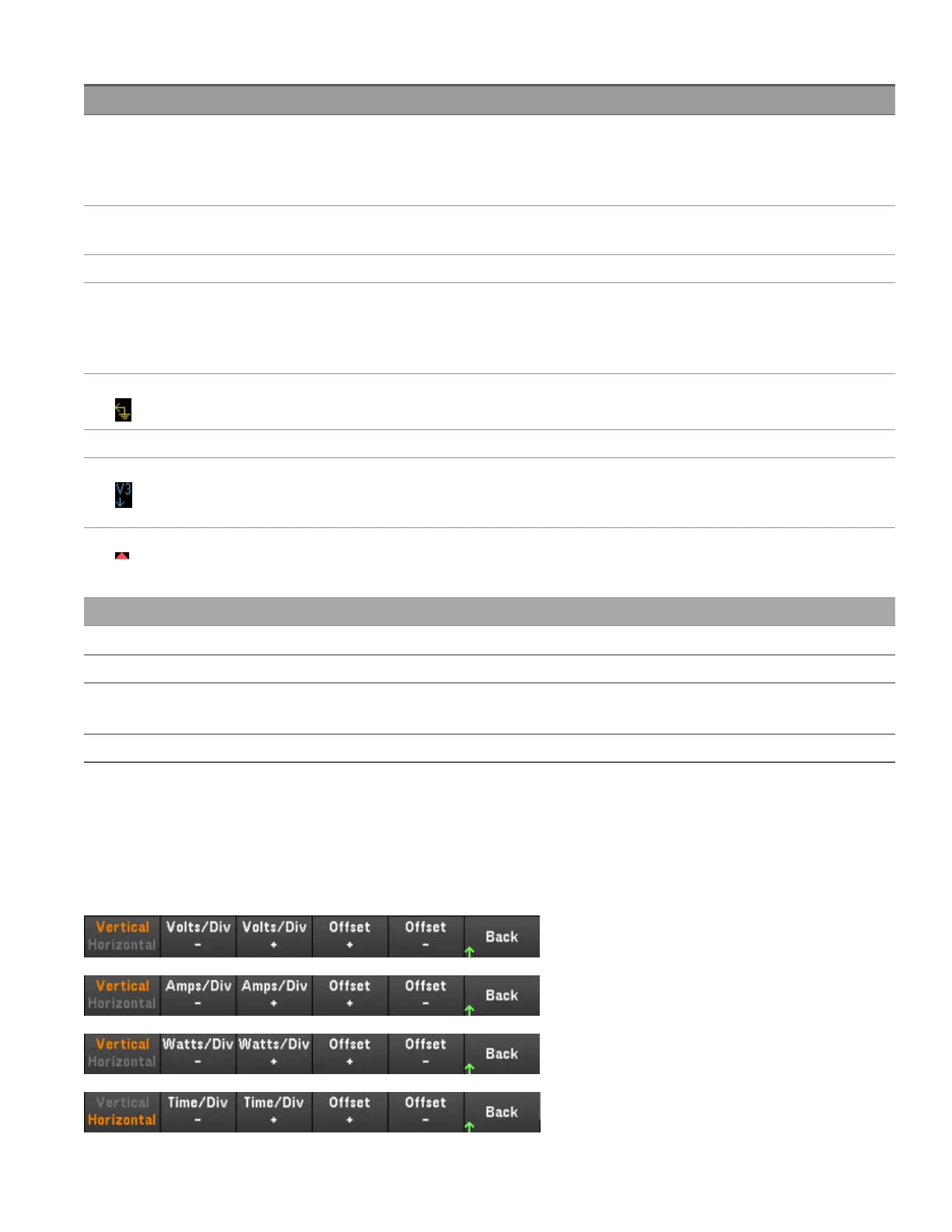

Adjusting the waveform display
Press Waveform Settings to access the waveform settings menu. Press the first softkey to toggle between Vertical
and Horizontal to display the vertical and horizontal settings menu. The Vertical settings menu will change
accordingly to the selected trace.
Keysight E36300 Series User's Guide 85
