Installing the optional GPIB interface (E36312A and E36313A only)
TURN OFF POWER AND REMOVE ALL CONNECTIONS PRIOR TO INSTALLATION
Turn off the power and remove all connections, including the power cord, from the instrument prior install-
ation of the GPIB interface.
RETAIN GPIB COVER PLATE
After installing the GPIB option, retain the cover plate for use in the event that you ever remove the GPIB
option. The instrument should never be connected to power or inputs on the output terminals without either
the GPIB module or the cover plate securely covering the rear-panel opening.
The following tools are required.
– T10 Torx driver
Make sure you turn the power supply upside down before proceed.

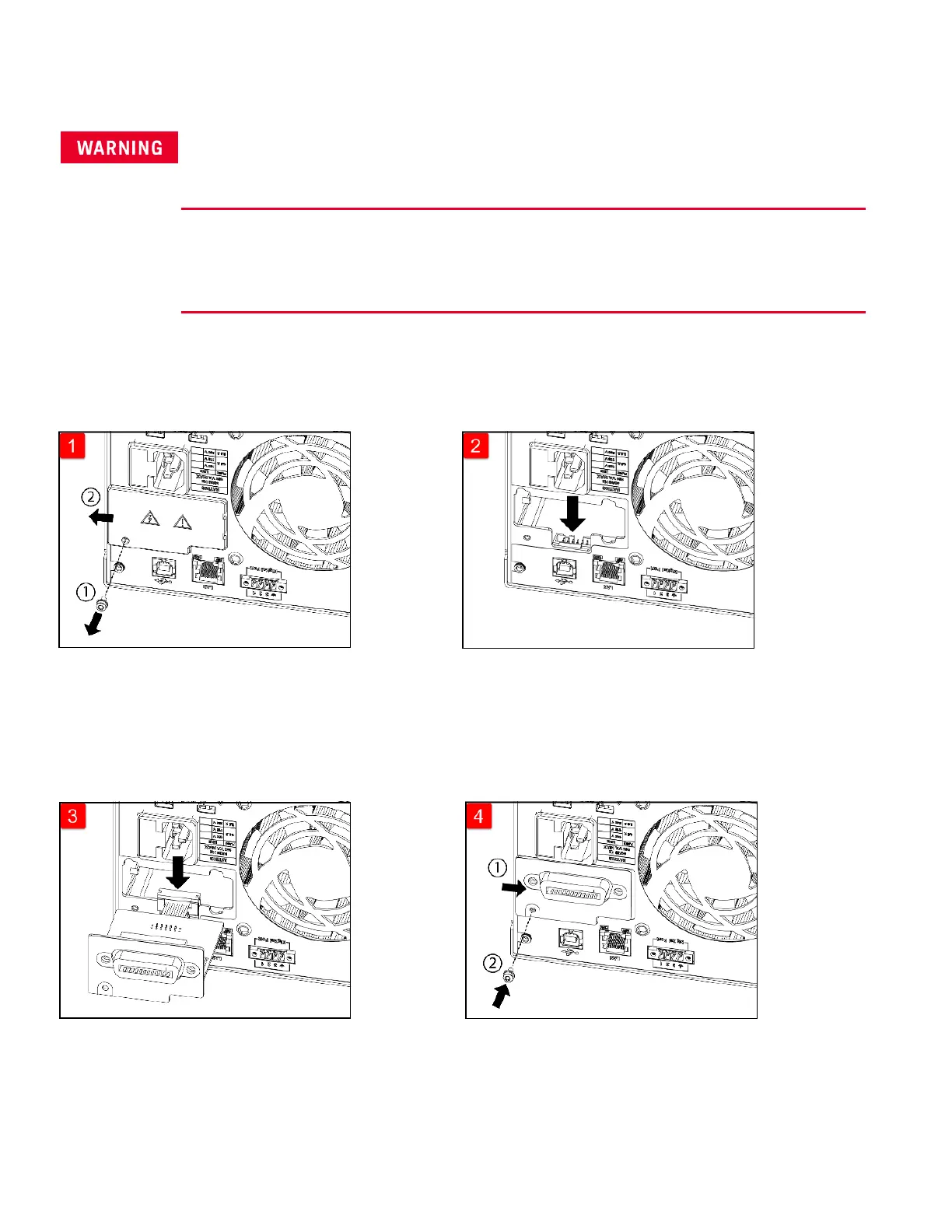

Use T10 Torx driver to remove the screw from the
GPIB cover plate. Retain the screw for use later in
this procedure.
Then, remove the cover plate by sliding it to the left.
Locate the connector, just inside the unit, to connect
the cable that is attached to the GPIB module.
Attach the cable to the connector located in the
previous step.
Put the module into the unit and slide the GPIB
board to the right so that it is flushed against the
instrument's sheet metal. Use the screw that was
removed earlier to secure the GPIB plate in place.
This concludes the GPIB installation procedure.
