Menu Description
Volts/Div +/–
Amps/Div +/–
Watts/Div +/–
Makes the waveform bigger or smaller vertically in relation to its ground reference. Specified in volts/division,
ampere/division and watts/division on the y axis.
Time/Div +/– Stretches or shrinks the waveform horizontally around the horizontal offset reference. Specified in time/division on
the x axis. Applies to ALL traces.
Vertical
Offset +/–
Moves the ground reference of the trace up or down in relation to the horizontal center line of the grid.
Horizontal Offset +/– Moves the waveform to the right or left of the horizontal offset reference.

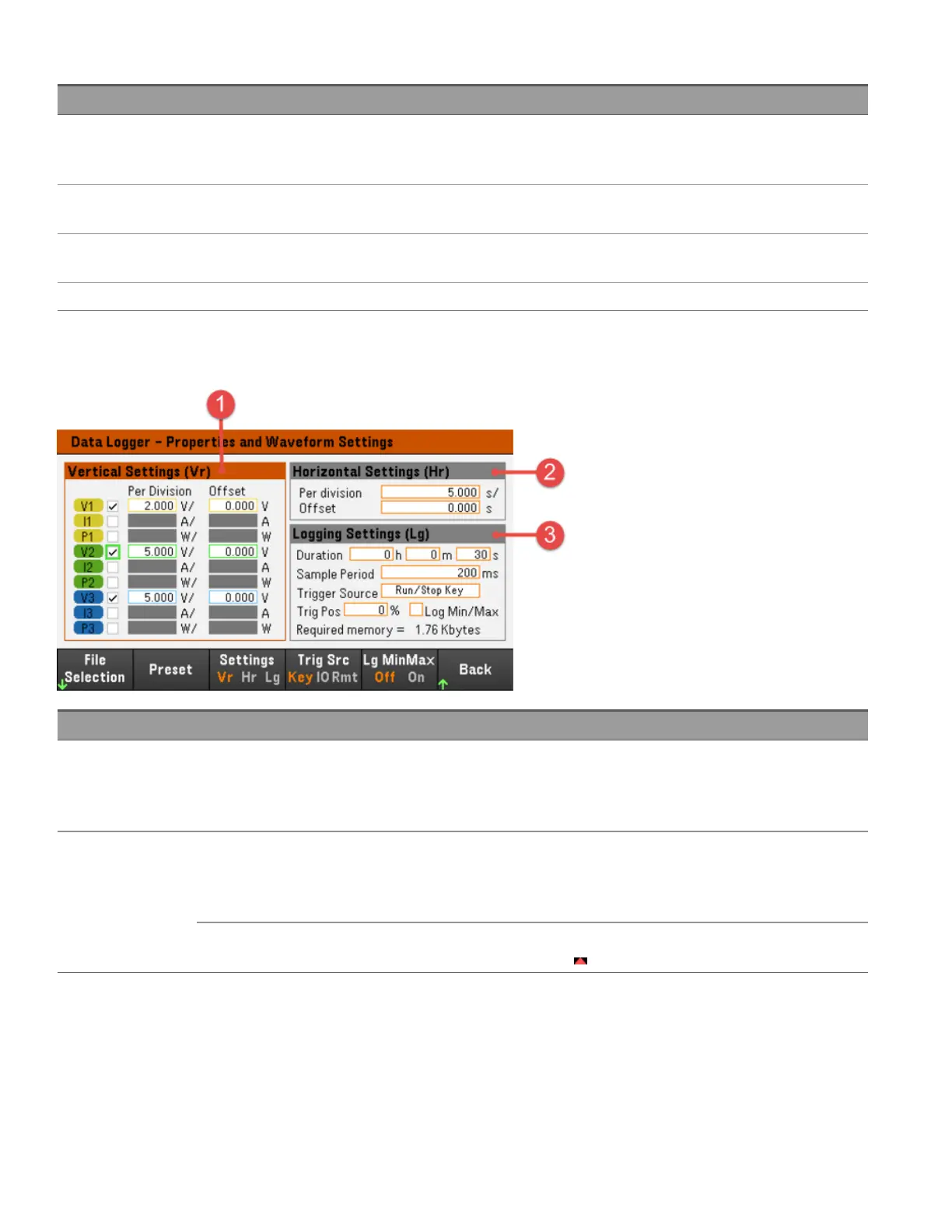

Data logger properties and waveform settings
Items Available Settings Description
1 Vertical Settings
(Vr)
Trace checkbox Selects the trace to display for the output. If no checkbox is enabled, data logging will not
logged for the selected output.
Configures the voltage/division, current/division, power/division and offsets for each out-
put.
2 Horizontal Set-
tings (Hr)
Time/Division Configures to zoom in or out of the data so that you can view waveform details. The
numbers on the top of the display indicate the location of the data that is being viewed
relative to the entire data log. Specified in time/division on the x axis. Applies to ALL
traces.
Offset Configures the waveform location (right or left) of the horizontal offset reference. The trig-
ger point is indicated by the solid arrow .
