Specifying the Operation Mode (E36312A and E36313A Only)
DO NOT use Coupling mode and Tracking mode when Auto-Series or Auto-Parallel mode is selected.
The Operation Mode allows you to specify the output capability when two independent outputs are being used.
Independant: This operation supply two independent outputs capability to a maximum rating of +25 V, 1 A
(E36312A ) and +25 V, 2 A (E36313A). In Independent mode, the instrument is at its default output state.
Auto-Series: This operation increase the output voltage capability to a maximum rating of +50 V, 1 A (E36312A)
and +50 V, 2 A (E36313A). In Auto-Series mode, the instrument doubles the voltage across Output 2 and Output 3,
but Output 3 no longer operates. .
Auto-Parallel: This operation increase the current capability to a maximum rating of +25 V, 2 A (E36312A) and +25
V, 4 A (E36313A). In Auto-Parallel mode, the instrument doubles the output current on Output 2, but Output 3 no
longer operates.
Tracking: This operation tracks the voltage for Output 2 and Output 3. See Using the Tracking Operation for
details.

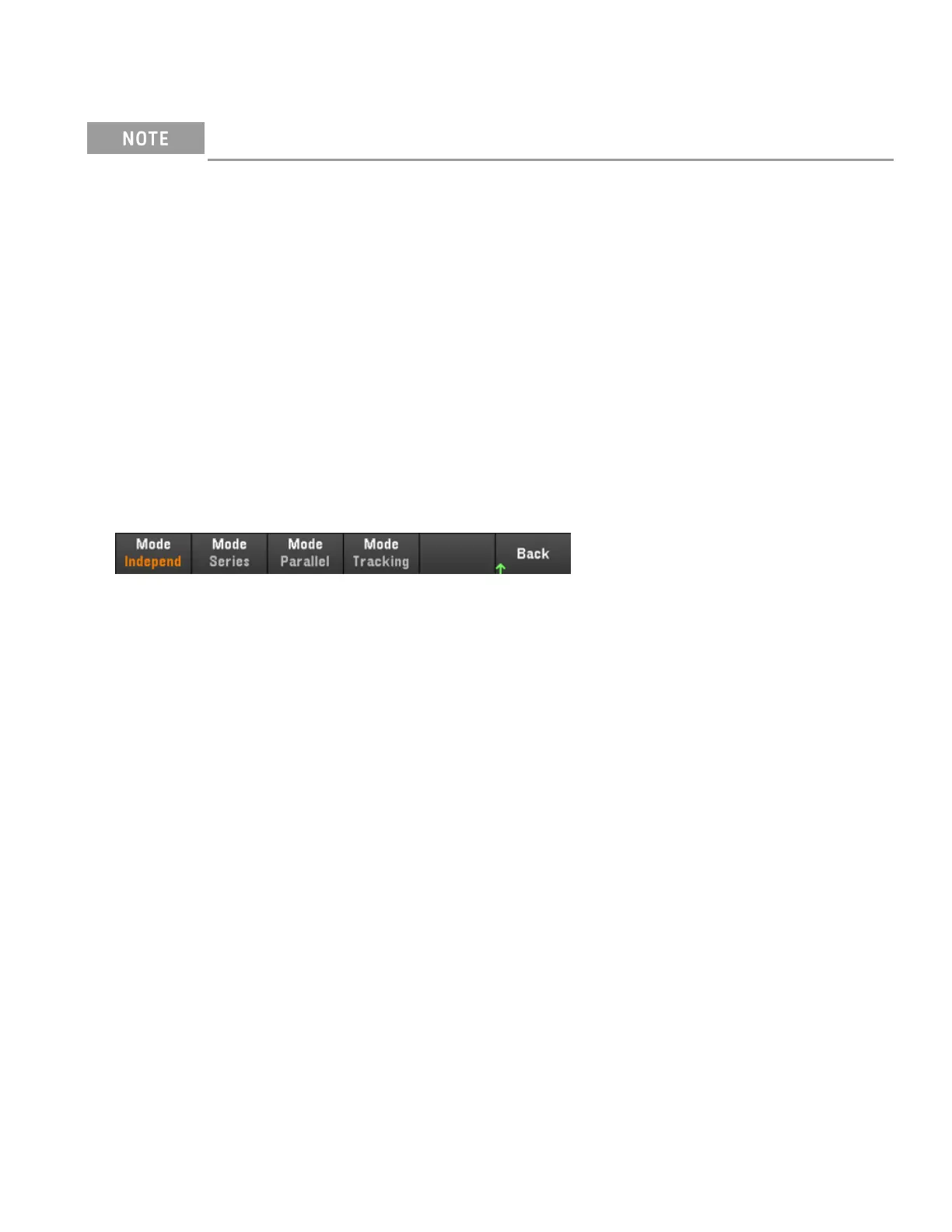

1. Press Source Settings > Operation Mode.
2. Press Independent, Series, Parallel or Tracking to select the desired operation mode.
3. Press Back to exit.
For output connection in Auto-Series and Auto-Parallel mode, see Parallel and Series Connections for details.
From the remote interface:
To enable Auto-Series mode:
OUT:PAIR SER
To enable Auto-Parallel mode:
OUT:PAIR PAR
To enable Tracking mode:
OUTP:TRAC ON
Keysight E36300 Series User's Guide 65
