Keysight E5071C ENA Series User Manual

Keysight E5071C ENA Series RF Network Analyzers 33
Installation
Initial Registration of E5071C
Step 3. In the Windows XP Professional Setup dialog box, read the license
agreement, then select the I accept this agreement box and click the Next >
button (Figure 2-15).

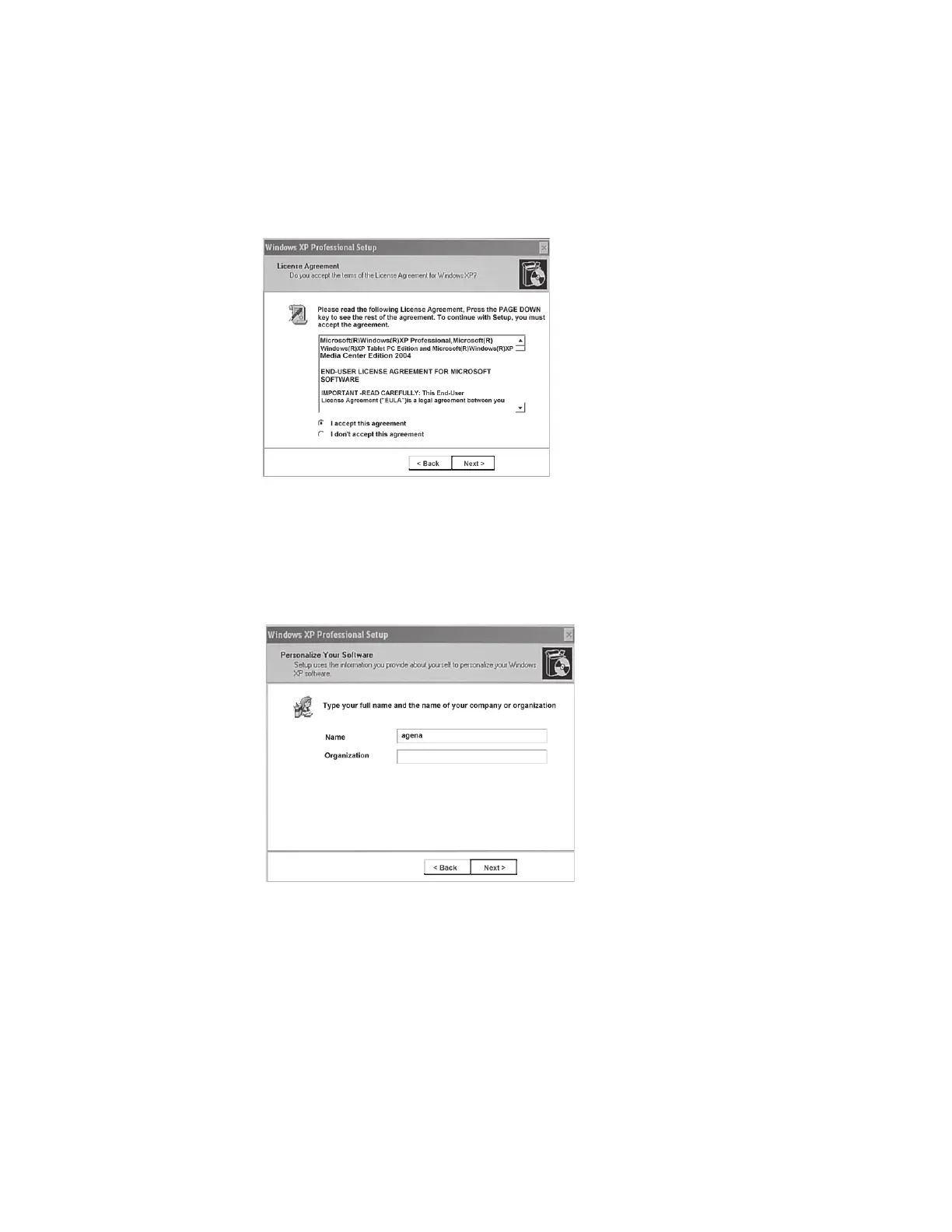

Figure 2-15 Windows XP Professional Setup dialog box (1/2)
Step 4. In the next dialog box, input agena in the Name box. Then, click the Next>
button (Figure 2-16).
Figure 2-16 Windows XP Professional Setup dialog box (2/2)
Step 5. The E5071C restart automatically.
Step 6. The Keysight Recovery Image Setup screen (Figure 2-17) appears. Click OK to
proceed.
e5071cse1074
e5071cse1075

Keysight E5071C ENA Series Specifications

General

Number of Ports	2 or 4
Dynamic Range	>123 dB (typical)
Connectivity	LAN, USB, GPIB
Display	10.4-inch LCD
Trace Noise	0.004 dB rms
Impedance	50 Ohm
Weight	20 kg
Dimensions	426 mm × 177 mm × 407 mm
