Keysight E5071C ENA Series User Manual

Keysight E5071C ENA Series RF Network Analyzers 51
Troubleshooting
System Recovery
Step 3. Type 2 to select Recover to original factory system image option and press
Enter.

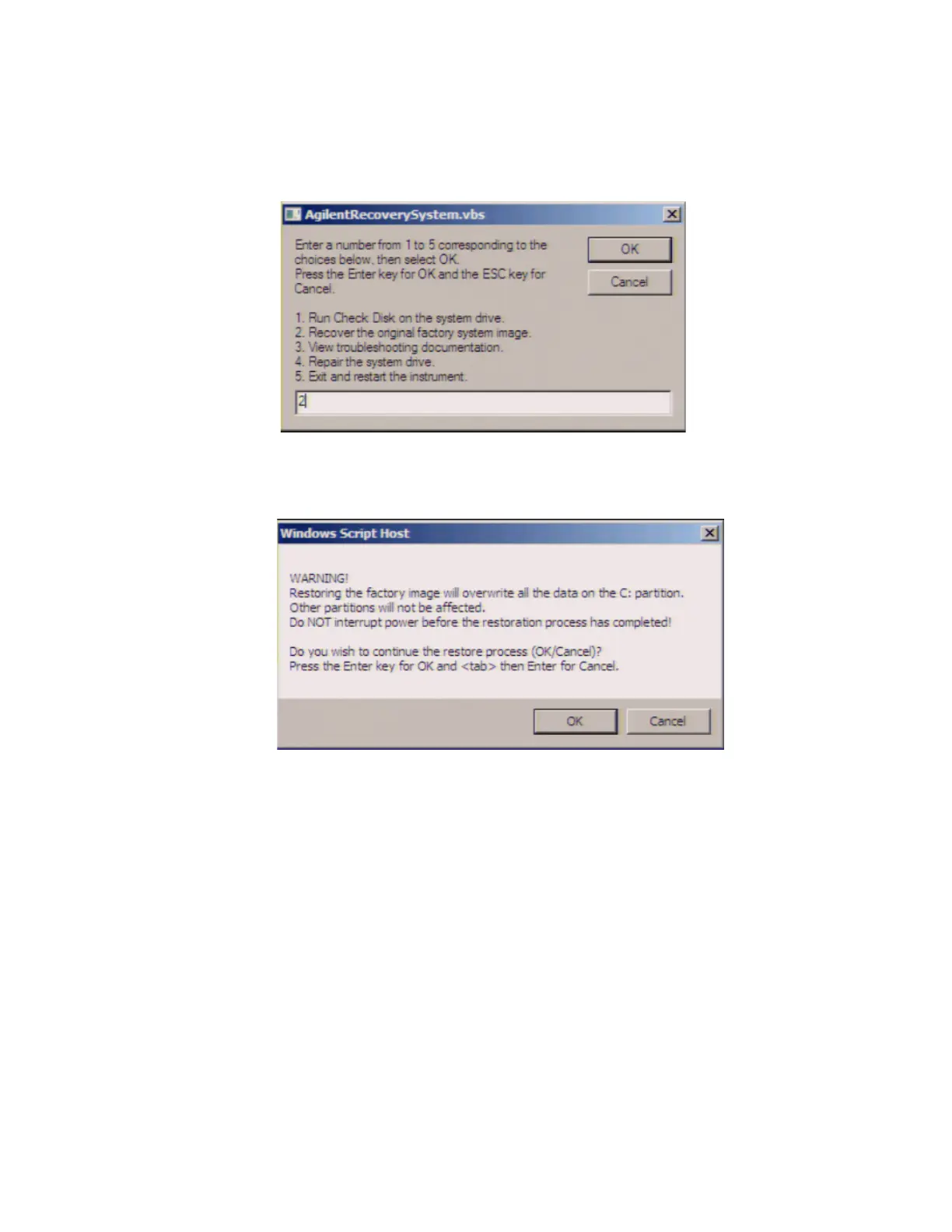

Figure 3-13 System recovery selection screen
Step 4. A confirmation message appears. Click OK to continue the process.
Figure 3-14 System recovery confirmation screen
Step 5. The progress of the system configuration is displayed on the screen. The
recovery takes a few minutes depending on the amount of data.

Keysight E5071C ENA Series Specifications

General

Number of Ports	2 or 4
Dynamic Range	>123 dB (typical)
Connectivity	LAN, USB, GPIB
Display	10.4-inch LCD
Trace Noise	0.004 dB rms
Impedance	50 Ohm
Weight	20 kg
Dimensions	426 mm × 177 mm × 407 mm
