Keysight E5071C ENA Series User Manual

50 Keysight E5071C ENA Series RF Network Analyzers
Troubleshooting
System Recovery
3-
Procedure for Windows XP Pro for Embedded Systems
Step 1. Turn ON the E5071C.
Step 2. The boot option is displayed. Use the downward arrow key to select the
“Keysight Recovery Solution” and press Enter

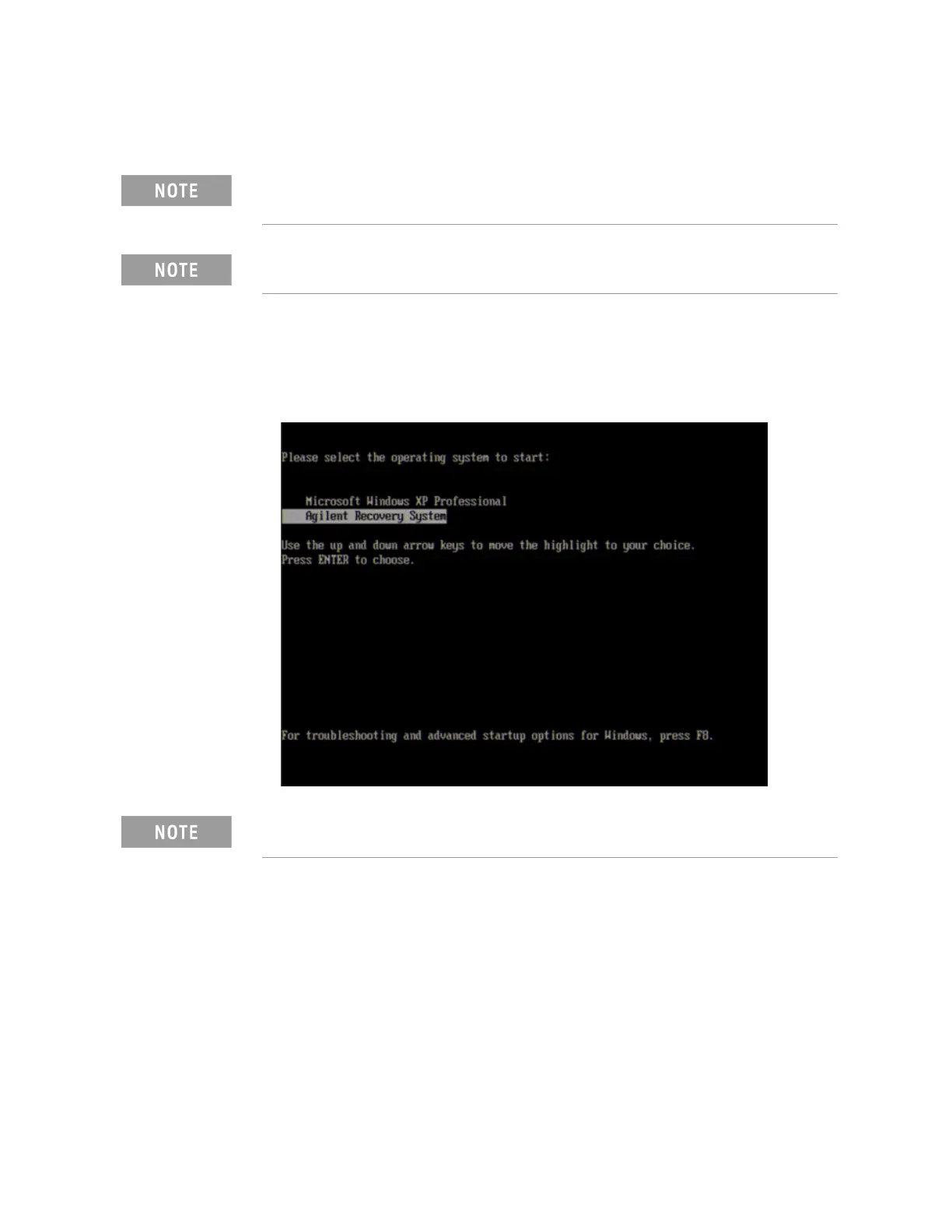

Figure 3-12 Keysight Recovery System selection screen
Only the recovery function for the Factory image is loaded.
The User back up function is not available.
You need a keyboard for this operation.
After several seconds, the next screen appears automatically even if you
do not press any key.

Keysight E5071C ENA Series Specifications

General

Number of Ports	2 or 4
Dynamic Range	>123 dB (typical)
Connectivity	LAN, USB, GPIB
Display	10.4-inch LCD
Trace Noise	0.004 dB rms
Impedance	50 Ohm
Weight	20 kg
Dimensions	426 mm × 177 mm × 407 mm
