Keysight U1732C - Measuring Capacitance (C); Figure 2-4 Capacitance Measurement with D Factor

Features and Functions 2
Keysight U1731C/U1732C/U1733C User’s Guide 47
Measuring capacitance (C)
Set up your LCR meter to measure capacitance as shown in Figure 2-5.
1 Press to power on the LCR meter.
2 Press to select a suitable test frequency, and
a press to enable the auto identification function; or
b alternatively press to select capacitance measurement.

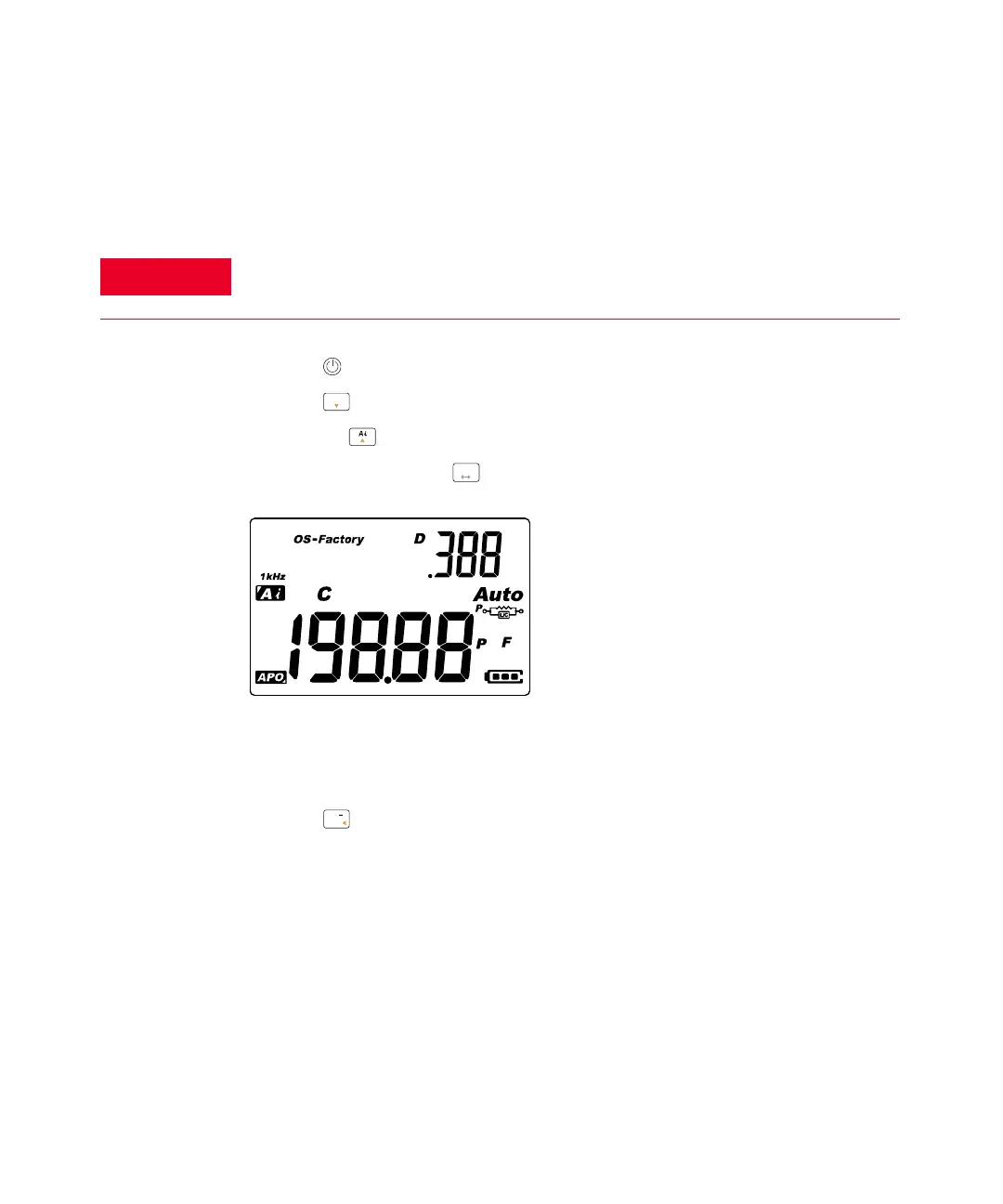

Figure 2-4 Capacitance measurement with D factor
3 Insert a capacitor into the component socket or connect the test clip to the
component leads as required.
4 Press to change the secondary display measurement (D, Q, or θ).
5 Read the displays.
WARNING
To avoid electrical hazards, discharge the capacitor to be tested before
measuring.
