KidKraft WINDALE - Swing End Assembly

19

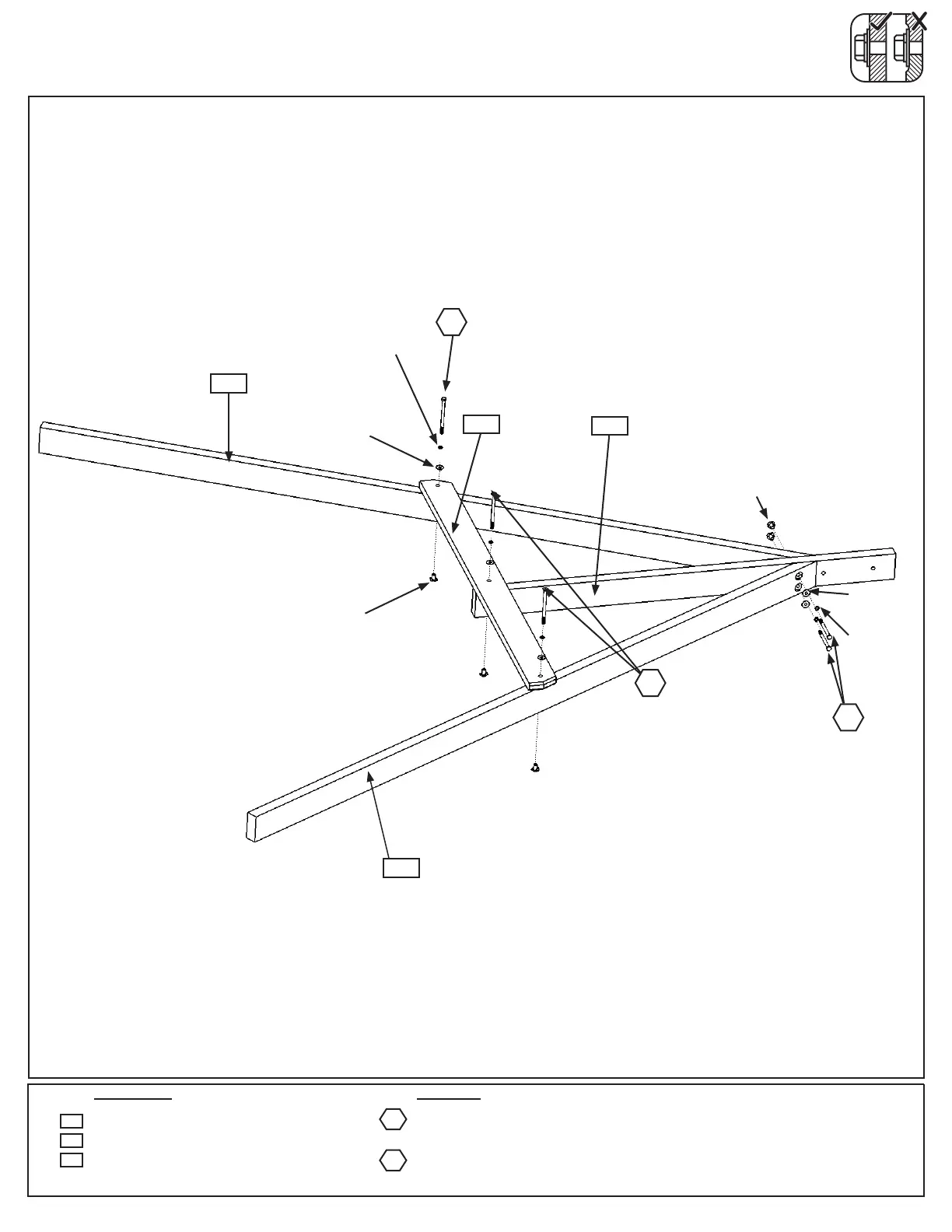

Step 4: Swing End Assembly
A: Attach 2 (1863) SW Posts to (1856) SW Upright using 2 (G4) 5/16 x 4” Hex Bolts (with lock washer, at
washer and t-nut). (g. 4.1)
B: Attach (1862) SW Support to both (1863) SW Posts and (1856) SW Upright using 3 (G5) 5/16 x 4-1/2” Hex
Bolts (with lock washer, at washer and t-nut). (g. 4.1)
Wood Parts
Hardware
2 x 5/16 x 4” Hex Bolt
(5/16” lock washer, 5/16” at washer, 5/16” t-nut)
3 x 5/16 x 4-1/2” Hex Bolt
(5/16” lock washer, 5/16” at washer, 5/16” t-nut)
G4
G5
2 x SW Post 2 x 4 x 86-11/16”
1 x SW Support 5/4 x 4 x 46-1/2”
1 x SW Upright 2 x 4 x 48-5/16”
1862
1863
1856
5/16” Flat
Washer
5/16” Lock
Washer
5/16”
T-Nut
Fig. 4.1
1863
1862
1856
G4
G5
1863
G5
5/16” Flat
Washer
5/16” Lock
Washer
5/16”
T-Nut
