Step 20: Lower Cafe Wall Assembly
A: Place 1 (1808) Short Trim tight to the top of (2221) Side Ground and ush to the outside edge of (2215) Post
on the Front Wall side of the assembly. Attach to (2215) Post with 3 (S2) #8 x 1-1/2” Wood Screws. (g. 20.1 and
20.2)
B: Tight to top of (2221) Side Ground and tight to (1808) Short Trim attach (2220) Siding to both (2215) Posts
with 2 (S0) #8 x 7/8” Truss Screws as shown in g. 20.2.
C: Tight to (2220) Siding and top of (2221) Side Ground attach a second (1808) Short Trim to (2215) Post with 3
(S2) #8 x 1-1/2” Wood Screws. (g 20.2)
D: Install 5 more (2220) Siding directly above the rst, attaching to both (2215) Posts with 2 (S0) #8 x 7/8” Truss
Screws per board. (g. 20.2)
E: From inside the assembly place (2205) Cafe Upright over the centre pilot holes of the (2220) Siding and
attach from outside of the assembly with 1 (S0) #8 x 7/8” Truss Screw per board. (g. 20.2 and 20.3)
F: Tight to the top of both (1808) Short Trims attach (2225) Table Support to (2215) Posts with 4 (S3) #8 x 2-1/2”
Wood Screws. (g. 20.2)
G: Tight to the top of (2225) Table Support and tight to both (2215) Posts attach (2204) Cafe Top to (2225) Table
Support with 4 (S7) #12 x 2” Pan Screws, as shown in g. 20.2.
Hardware
Wood Parts
18 x #8 x 7/8” Truss Screw
6 x #8 x 1-1/2” Wood Screw
4 x #8 x 2-1/2” Wood Screw
4 x #12 x 2” Pan Screw
6 x Siding 3/8 x 3-1/2 x 33”
2 x Short Trim 1 x 2 x 19-5/8”
1 x Table Support 2 x 2 x 35-7/8”
1 x Cafe Top 5/4 x 5 x 36”
1 x Cafe Upright 5/4 x 2 x 24-1/2”
2220
S0
1808
S2
2225
2204

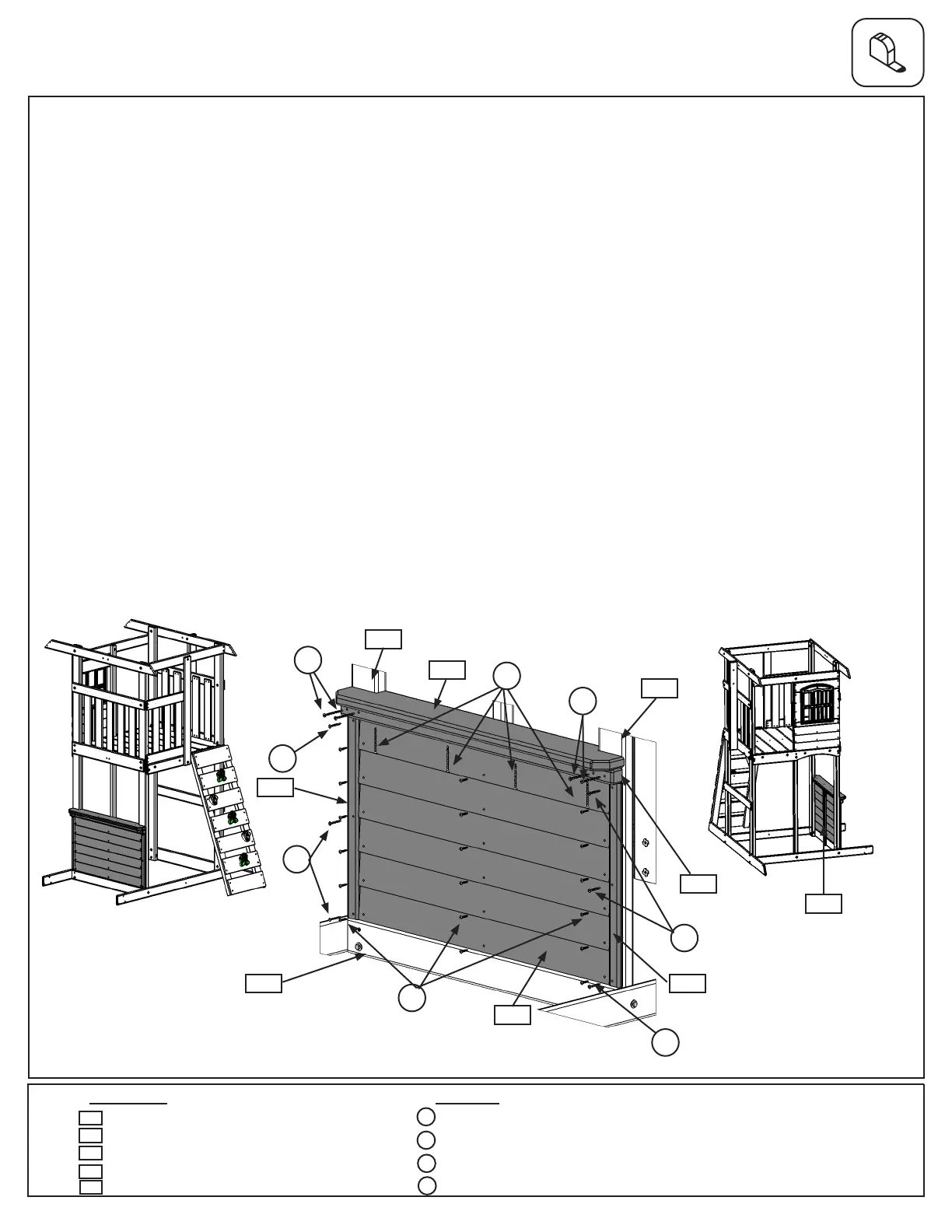

Fig. 20.1
2215
Fig. 20.2
2220
2221
2215
Fig. 20.3
2225
Outside View
S2
S2
x 6
Cafe Wall
Front Wall
2205
2204
1808
1808
S2
S0
x 3 per
board
S2
S3
S3
2205
S7
S7
S3
