KidKraft WINDALE - Door Assembly

42
3 x Door Siding 3/8 x 3-1/2 x 11-13/16”
1 x Door Siding Top 3/8 x 3-1/2 x 11-13/16”
Wood Parts
1 x Door Side Right 1-1/4 x 3 x 40-1/8”
1 x Door Side Left 1-1/4 x 3 x 40-1/8”
2 x Door Cross 1/2 x 3-3/8 x 15-7/8”
1 x Door Arch 1/2 x 4-1/2 x 15-7/8”
Hardware
16 x #8 x 1-1/8” Wood Screw
12 x #8 x 7/8” Truss Screw
2057
2231
2230
2058
2232
2233
S1
Step 25: Door Assembly
Part 1
A: Place 1 (2230) Door Cross ush to the bottom and outside edges of (2057) Door Side Right and (2058) Door
Side Left. (g. 25.1)
B: Place the second (2230) Door Cross in the middle notches of (2057) Door Side Right and (2058) Door Side
Left, ush to the outside edges. (g. 25.1)
C: Place (2231) Door Arch tight to the top notches of (2057) Door Side Right and (2058) Door Side Left, ush to
the outside edges. (g. 25.1)
D: Make sure assembly is square then attach top and bottom boards with 6 (S1) #8 x 1-1/8” Wood Screws per
board. Attach the middle (2230) Door Cross with 4 (S1) #8 x 1-1/8” Wood Screws in the outer holes and 2 (S0) #8
x 7/8” Truss Screws in the inner holes. (g. 25.1)
E: Starting tight to the bottom (2230) Door Cross, and working up, evenly space 3 (2232) Door Siding then 1
(2233) Door Siding Top tight to the inside edges of (2057) Door Side Right and (2058) Door Side Left. (2233)
Door Siding Top should sit tight to the top (2230) Door Cross. Attach each (2232) Door Siding with 2 (S0) #8 x
7/8” Truss Screws per board and (2233) Door Siding Top with 4 (S0) #8 x 7/8” Truss Screws. (g. 25.1)
S0

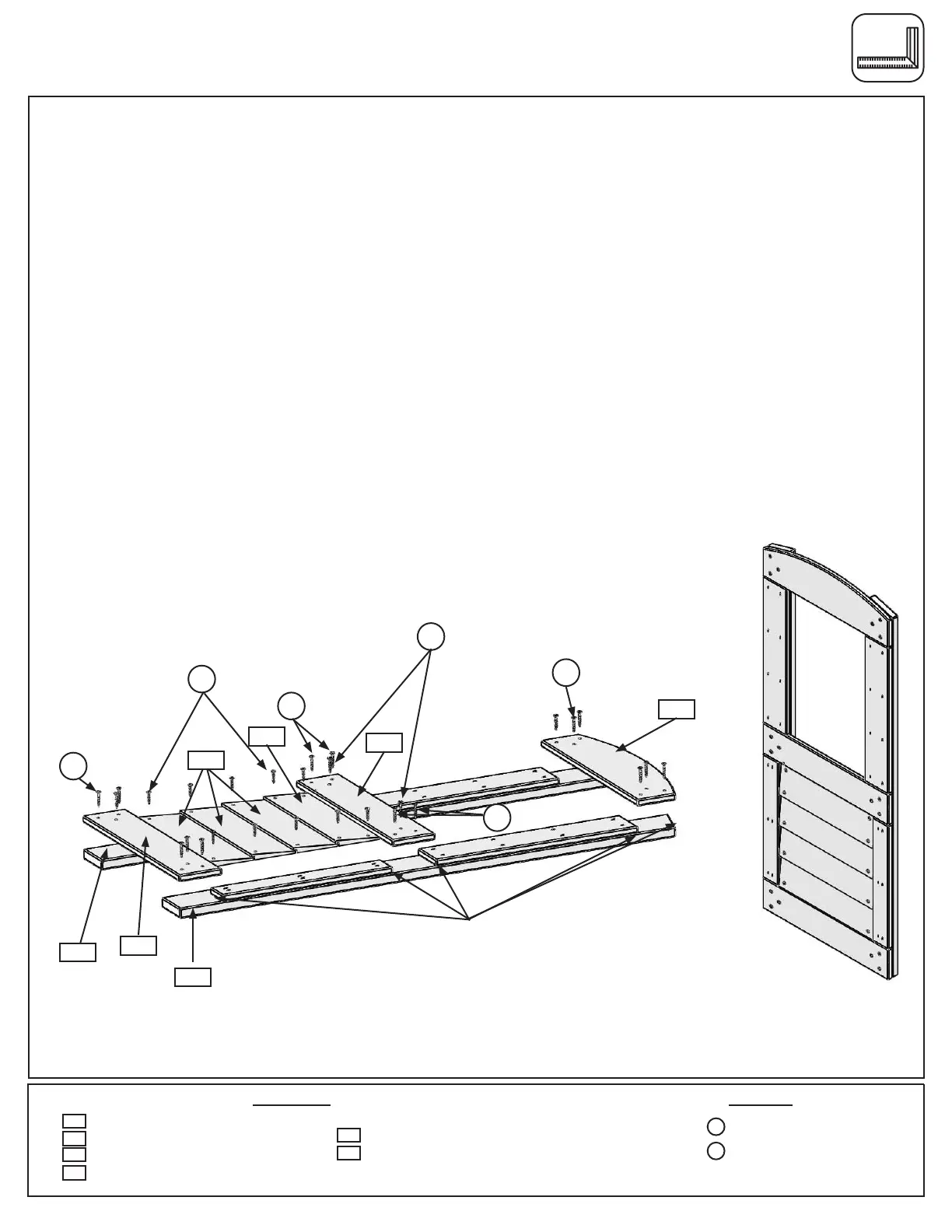

Fig. 25.1
2058
2057
Fig. 25.2
S1
x 6
S0
2231
Flush and
tight
S1
S1
x 6
2233
2230
2230
2232
x 10
S0
S1
