KidKraft WINDALE - Cafe Side Wall Assembly

31
Wood Parts Hardware
Fig. 15.1
20 x #8 x 7/8” Truss Screw
5 x Wall Board 1/2 x 4 x 22”
2227
S0

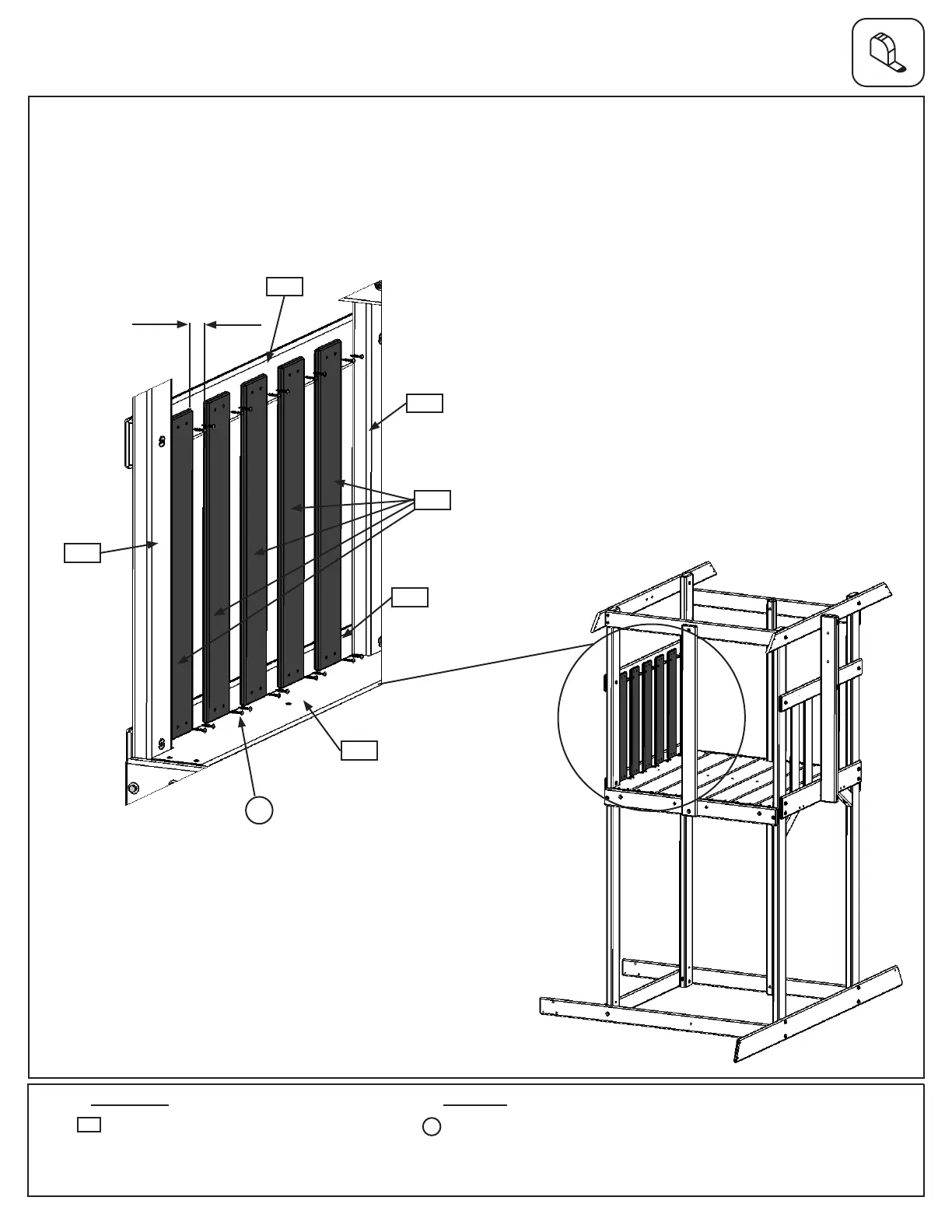

Step 15: Cafe Side Wall Assembly
A: In between both (2215) Posts on Cafe Wall evenly space and attach 5 (2227) Wall Boards to (1934) End Floor
and (2203) Cafe Side Top using 4 (S0) #8 x 7/8” Truss Screws per board. Make sure the bottom of the boards are
tight against (2207) Cedar Gap Board. The distance between boards should not exceed 3-1/4” (g. 15.1 and
15.2)
2203
2215
2207
Fig. 15.2
S0
x 4 per board
2215
1934
2227
Not to
exceed
3-1/4”
