KidKraft WINDALE - Attach Rock Rail to Fort

35
HardwareWood Parts

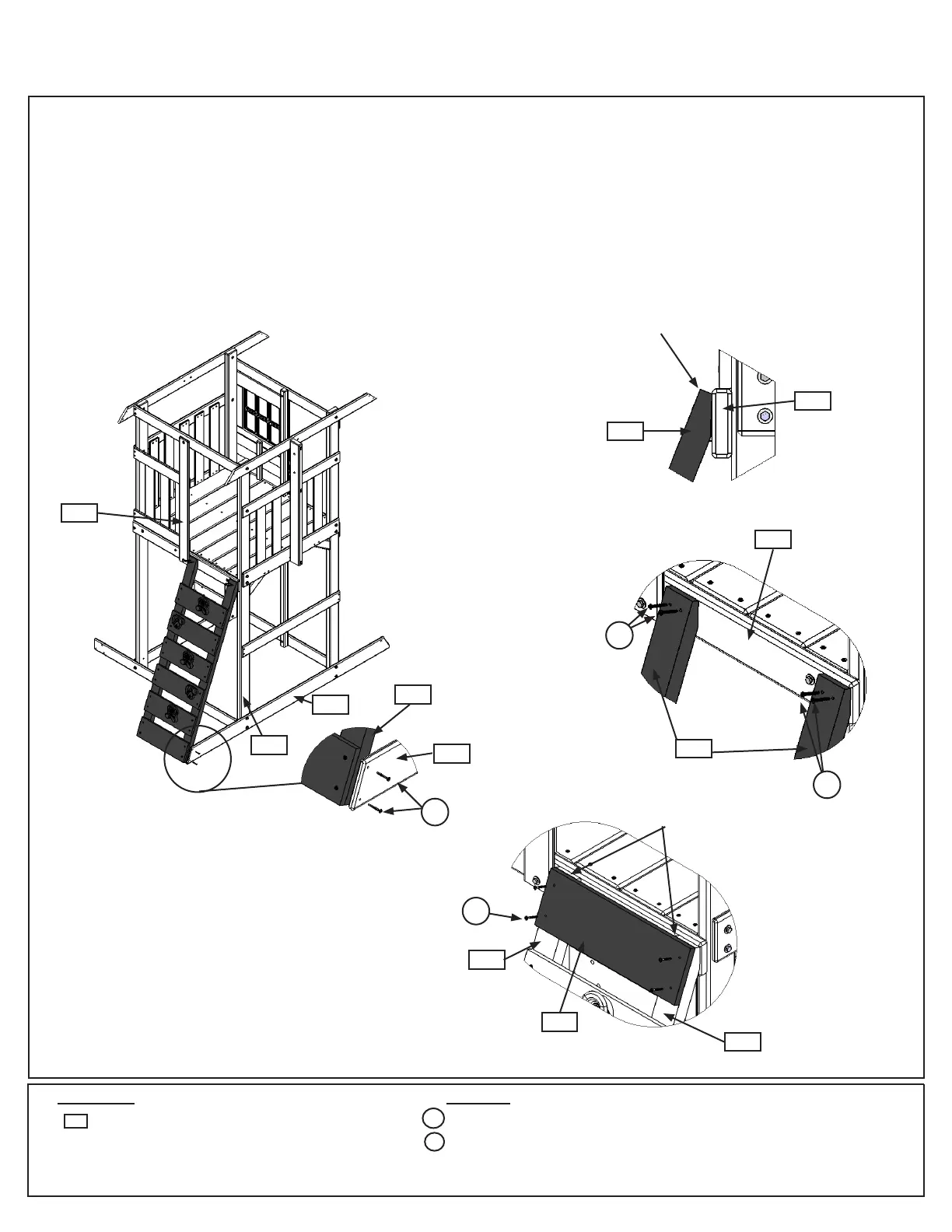

Step 19: Attach Rock Rail to Fort
A: Place Rock Wall Assembly from Step 2 centred between (2215) Post and (2200) Back Divider, ush to top of
(1894) Back Floor (g. 19.1 and 19.2). Attach (0349) Rock Rails to (1894) Back Floor using 4 (S15) #8 x 1-3/4”
Wood Screws as shown in g. 19.3.
B: Attach (2223) SW Ground to bottom of (0349) Rock Rail with 2 (S15) #8 x 1-3/4” Wood Screws. (g. 19.1 and
19.4)
C: Attach (1779) CE Access Board to top of Rock Wall Assembly, ush to top of (0349) Rock Rails using 4 (S2) #8
x 1-1/2” Wood Screws. (g. 19.5)
Fig. 19.1
2200
Flush
Fig. 19.4
Fig. 19.2
Fig. 19.5
0349
0349
0349
1779
0349
6 x #8 x 1-3/4” Wood Screw
4 x #8 x 1-1/2” Wood Screw
S15
1 x CE Access Board 1 x 6 x 17”
1779
S2
1894
Fig. 19.3
Flush
1894
Back Wall
S2
x 4
S15
S15
2215
2223
0349
2223
S15
