KidKraft WINDALE - Cafe Seat Assembly

37
HardwareWood Parts

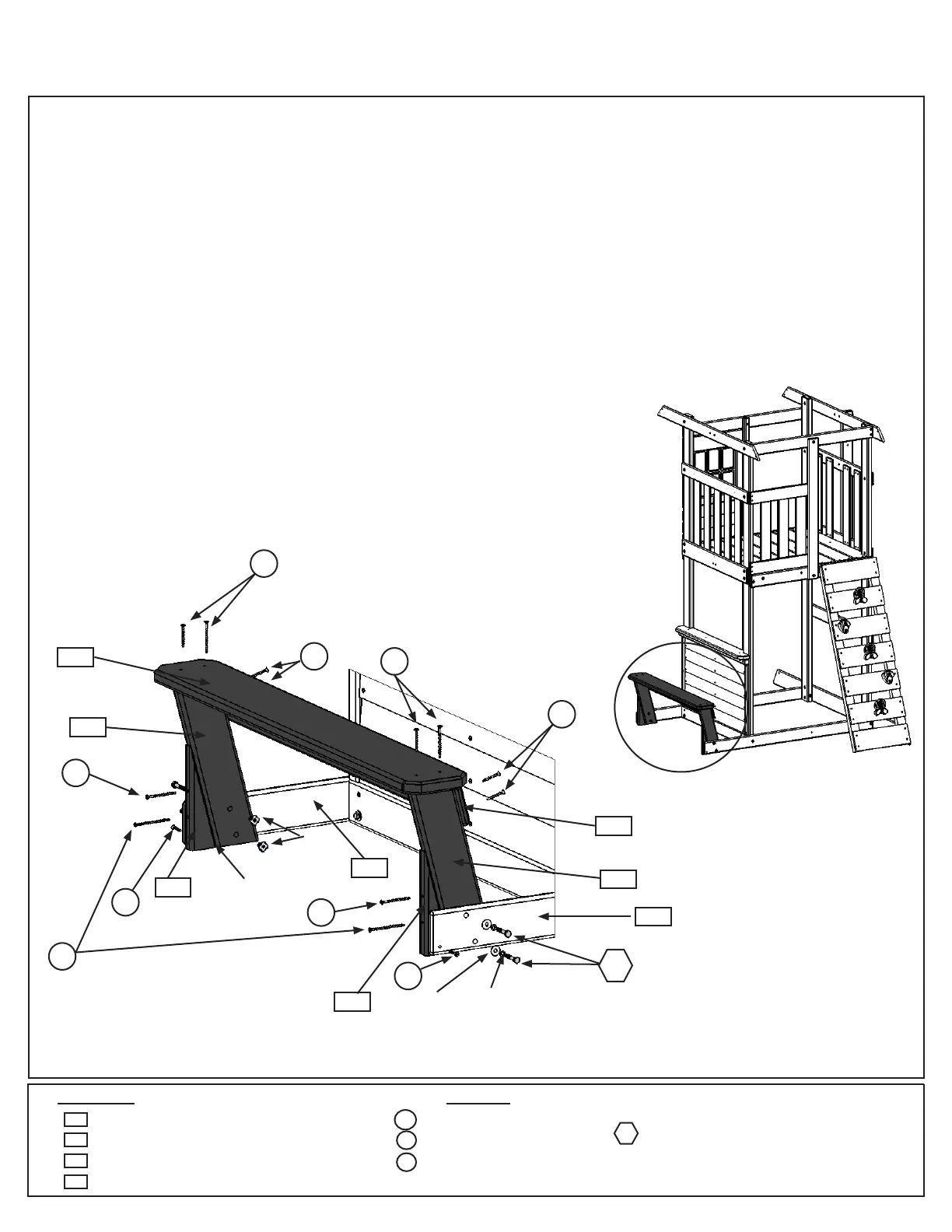

Step 21: Cafe Seat Assembly
A: Loosely attach 1 (2202) Cafe Leg to each (2210) Front Back Ground with 2 (H1) 1/4 x 1-1/2” Hex Bolts (with
lock washer, at washer and t-nut) per board. (g. 21.1 and 21.2)
B: Attach 1 (2201) Cafe Gusset tight to each (2202) Cafe Leg with 1 (S15) #8 x 1-3/4” Wood Screw per board in
the top pilot holes and 1 (S3) #8 x 2-1/2” Wood Screw per board in the bottom pilot holes, and to each (2210) Front
Back Ground with 1 (S2) #8 x 1-1/2” Wood Screw per board. The bottom of each (2201) Cafe Gusset should be
ush to (2202) Cafe Leg and (2210) Front Back Ground. (g. 21.2)
C: Centred over both (2202) Cafe Legs attach (2216) Seat with 4 (S15) #8 x 1-3/4” Wood Screws as shown in g.
21.2.
D: Tight to (2216) Seat, on the inside of the assembly, attach (2217) Seat Support to the legs with 4 (S2) #8 x
1-1/2” Wood Screws. (g. 21.2)
E: Tighten all bolts from this step.
Fig. 21.1
2210
Flush
Fig. 21.2
2216
2210
2217
S15
2202
2201
2201
6 x #8 x 1-3/4” Wood Screw
6 x #8 x 1-1/2” Wood Screw
2 x #8 x 2-1/2” Wood Screw
S15
2 x Cafe Leg 5/4 x 4 x 14-1/4”
2 x Cafe Gusset 5/4 x 2-1/4 x 8”
1 x Seat 5/4 x 6 x 39”
1 x Seat Support 1 x 4 x 35-7/8”
2202
S3
2202
S15
2201
2216
2217
S2
H1
4 x 1/4 x 1-1/2” Hex Bolt
(1/4” lock washer, 1/4” at washer, 1/4” t-nut)
H1
1/4” lock
washer
1/4” at
washer
1/4”
t-nut
S3
S2
S2
S15
S2
S2
S15
