KidKraft WINDALE - Front Lower Wall Assembly

38
Front Lower Wall
Part A
Front Lower Wall
Part A
2 x #8 x 7/8” Truss Screw
16 x #8 x 1-1/2” Wood Screw
Wood Parts
Hardware
1 x Wall Board 1 x 5 x 20”
2 x Side Window 1 x 4 x 12-3/4”
1 x Lower Window 1 x 3 x 20”
1 x Siding 3/8 x 3-1/2 x 20”
2226
2214
Fig. 22.1
2222
S0
Step 22: Front Lower Wall Assembly
Part 1
A: On the Front Wall, tight to the bottom of (1906) Top Front Back and ush to the outside of (2215) Post and
(2213) Front Divider, attach (2226) Wall Board with 4 (S2) #8 x 1-1/2” Wood Screws (g. 22.1 and 22.2)
B: Tight to the bottom of (2226) Wall Board attach 1 (2222) Side Window ush to the outside of both (2215) Post
and (2213) Front Divider with 4 (S2) #8 x 1-1/2” Wood Screws per board. Make sure the pilot holes are closer to
the outside of the boards. (g. 22.2)
C: Tight to the bottom of each (2222) Side Window and ush to the outside of both (2215) Post and (2213) Front
Divider attach (2214) Lower Window with 4 (S2) #8 x 1-1/2” Wood Screws. (g. 22.2)
D: Tight to the top of (2210) Front Back Ground and ush to the outside of (2215) Post and (2213) Front Divider,
attach 1 (2219) Siding with 2 (S0) #8 x 7/8” Truss Screws. (g. 22.2)
2219
2213
1906
1906
2215
2214
2210

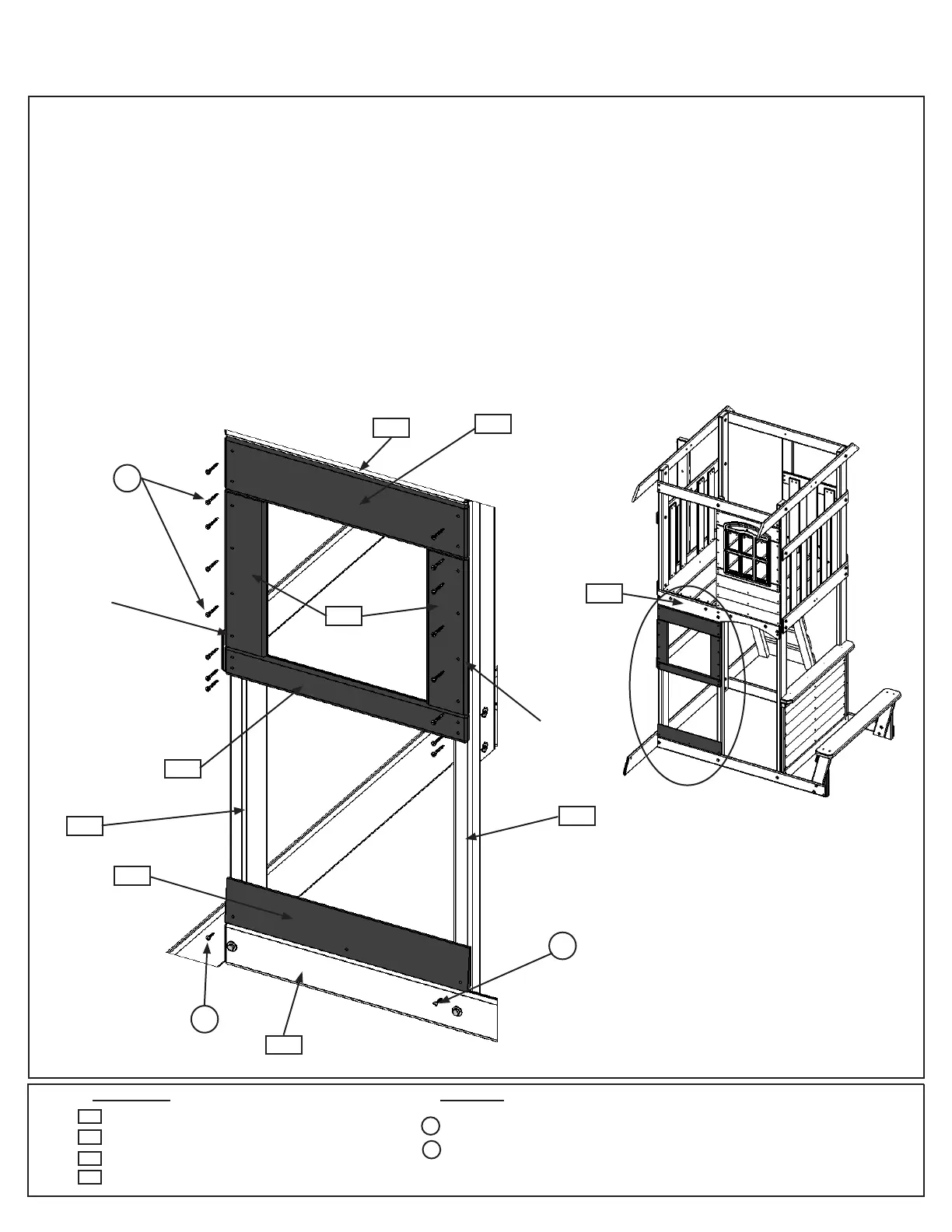

Fig. 22.2
S2
x 4 per board
2219
S2
2222
S0
S0
2226
Notice
position of
pilot holes
Notice
position of
pilot holes
