KidKraft WINDALE - Cafe Wall Assembly

23
Assemble Right Wall
Step 7: Cafe Wall Assembly
Note: Pre-drill all holes using a 1/8” drill bit before installing the lag screws.
A: On the ground lay at 2 (2215) Posts then loosely attach (2221) Side Ground (in the bottom holes), (1934)
End Floor (in the top holes), (2203) Cafe Side Top and (1935) Side Roof using 2 (H2) 1/4 x 2” Hex Bolts (with
lock washer, at washer and t-nut) per board as shown in g. 7.1. Keep bolts loose.
B: Make sure assembly is square and then fasten (2221) Side Ground to (2215) Posts with 2 (S2) #8 x 1-1/2”
Wood Screws and (1934) End Floor to posts with 2 (LS1) 1/4 x 1-1/2” Lag Screws (with at washer). (g. 7.1)
C: Tighten all bolts.
Notice the hole
locations
Wood Parts Hardware
8 x 1/4 x 2” Hex Bolt (1/4” lock washer, 1/4” at washer, 1/4” t-nut)
2 x 1/4 x 1-1/2” Lag Screw (1/4” at washer)
2 x #8 x 1-1/2” Wood Screw
1 x End Floor 1 x 5 x 35-1/4”
1 x Side Ground 1 x 4 x 35-7/8”
2 x Post 2 x 4 x 84-3/8”
1 x Side Roof 1 x 4 x 55-1/8”
1 x Cafe Side Top 1 x 4 x 35-7/8”
1934
1935
2215
2221
LS1
H2
1935
1934

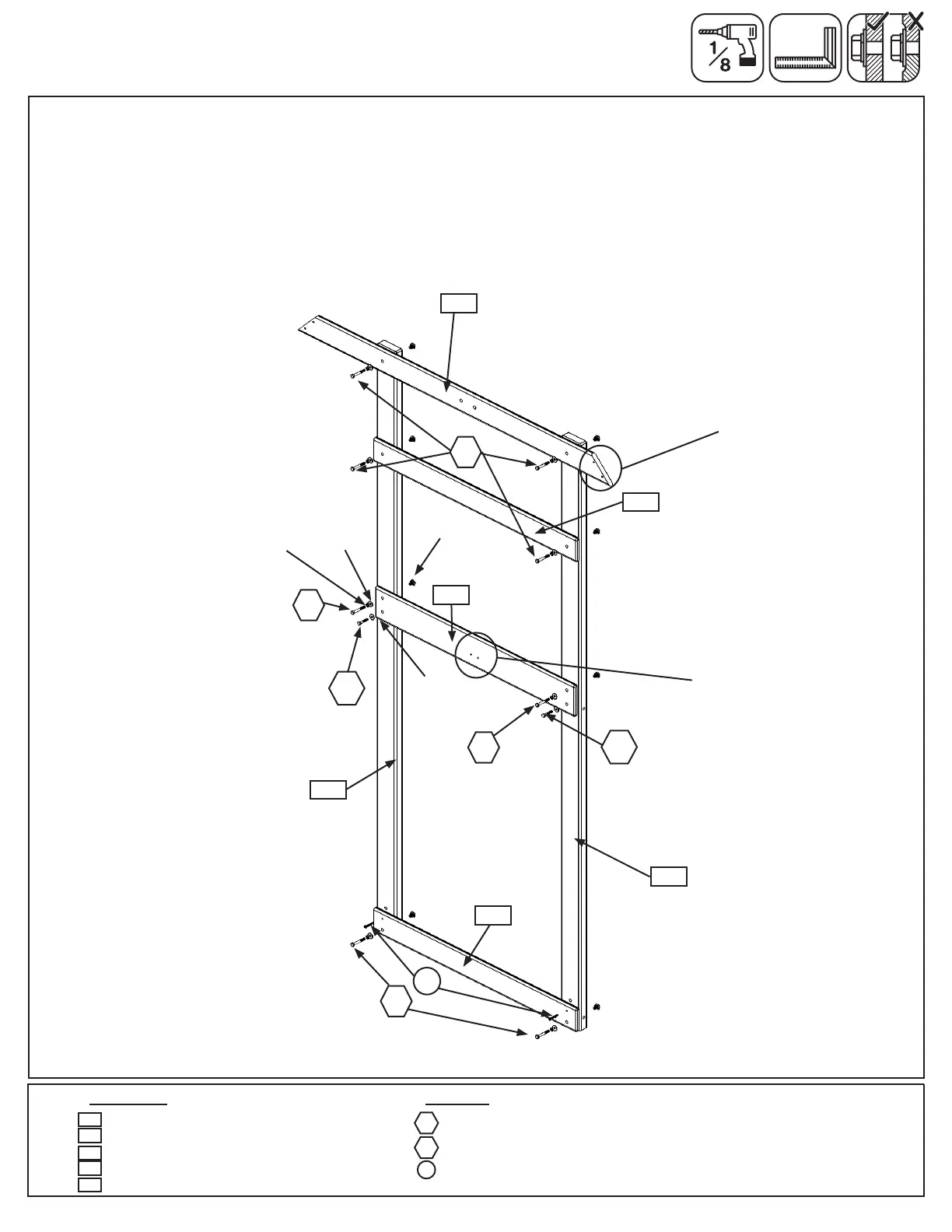

Fig. 7.1
2215
2221
1/4” lock
washer
1/4” at
washer
1/4” t-nut
LS1
H2
LS1
H2
H2
1/4” at
washer
2215
S2
H2
S2
2203
Notice shorter end
on this side and
angle facing up.
2203
