KidKraft WINDALE - Attach Swing Assembly to Fort

50
Hardware

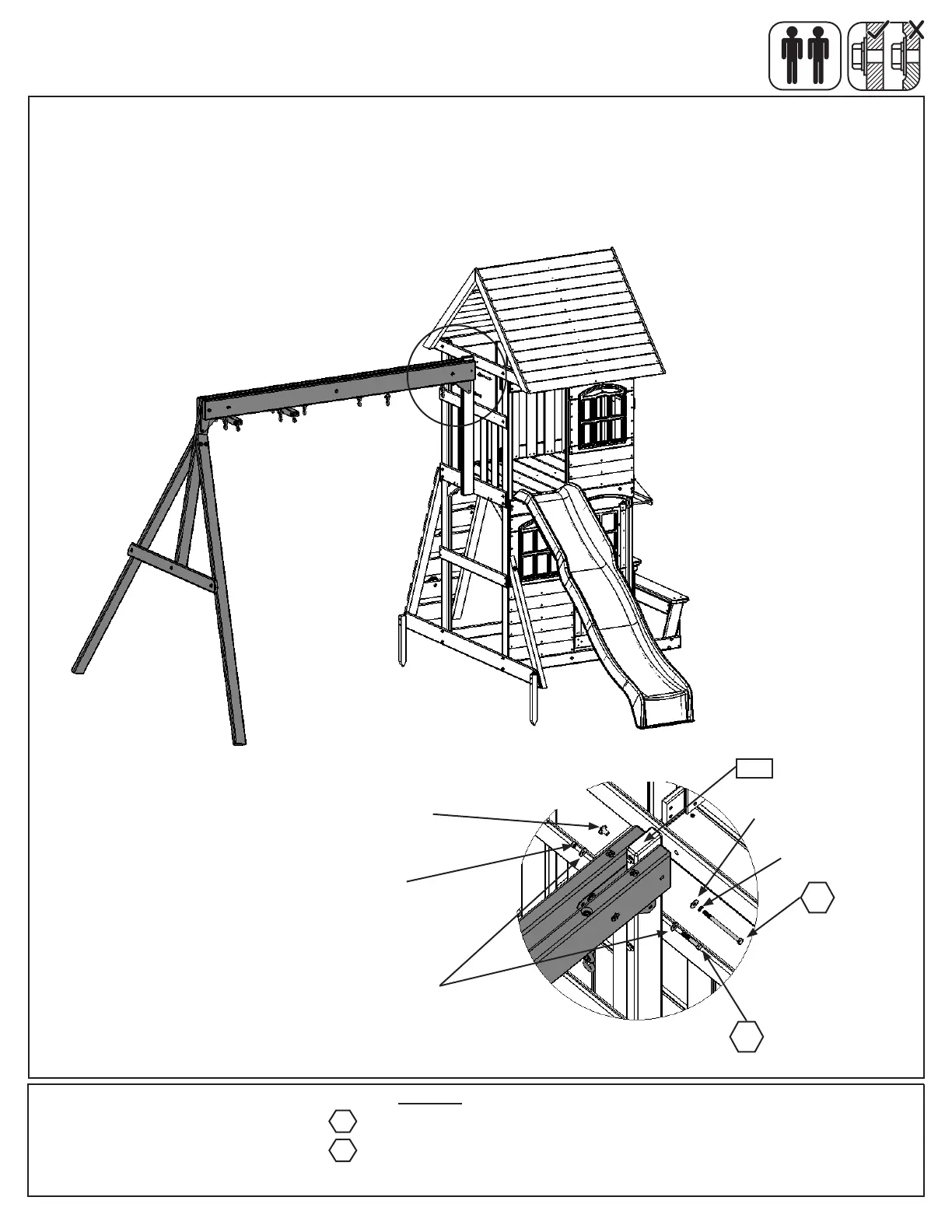

Step 30: Attach Swing Assembly to Fort
A: Attach Swing Assembly from Step 5 to (2228) Wall Mount with 1 (G5) 5/16 x 4-1/2” Hex Bolt (with lock
washer, at washer and t-nut) and 1 (G8) 5/16 x 2” Hex Bolt (with 2 at washers and 1 lock nut) as shown
in g. 30.1 and 30.2.
5/16” Lock
Washer
5/16” Flat
Washer
5/16”
T- Nut
1861
Fig. 30.1
1 x 5/16 x 4-1/2” Hex Bolt (5/16” lock washer, 5/16” at washer, 5/16” t-nut)
1 x 5/16 x 2” Hex Bolt (5/16” at washer x 2, 5/16” lock nut)
G5
G8
Fig. 30.2
5/16”
Lock nut
5/16” Flat
Washer
G5
G8
