KidKraft WINDALE - Attach Floor Gussets

27
Step 11: Attach Floor Gussets
Note: Pre-drill all holes using a 1/8” drill bit before installing the lag screws.
A: Make sure the assembly is square before proceeding.
B: Measure 4-3/8” down from the bottom of (2211) Floor End, place 1 (0367) Floor Gusset against each (2215)
Post on the Swing Wall at measured location and tight against (2211) Floor End. Attach ush to outside edge of
posts using 1 (LS3) 1/4 x 3” Lag Screw (with at washer) per post. (g. 11.1)
C: Attach the other end of each (0367) Floor Gusset to (2211) Floor End with 2 (S2) #8 x 1-1/2” Wood Screws as
shown in g. 11.1.
Hardware
2 x 1/4 x 3” Lag Screw (1/4” at washer)
4 x #8 x 1-1/2” Wood Screw
LS3
S2
Wood Parts
2 x Floor Gusset 2 x 3 x 11”
0367
Assemble Gussets and square fort

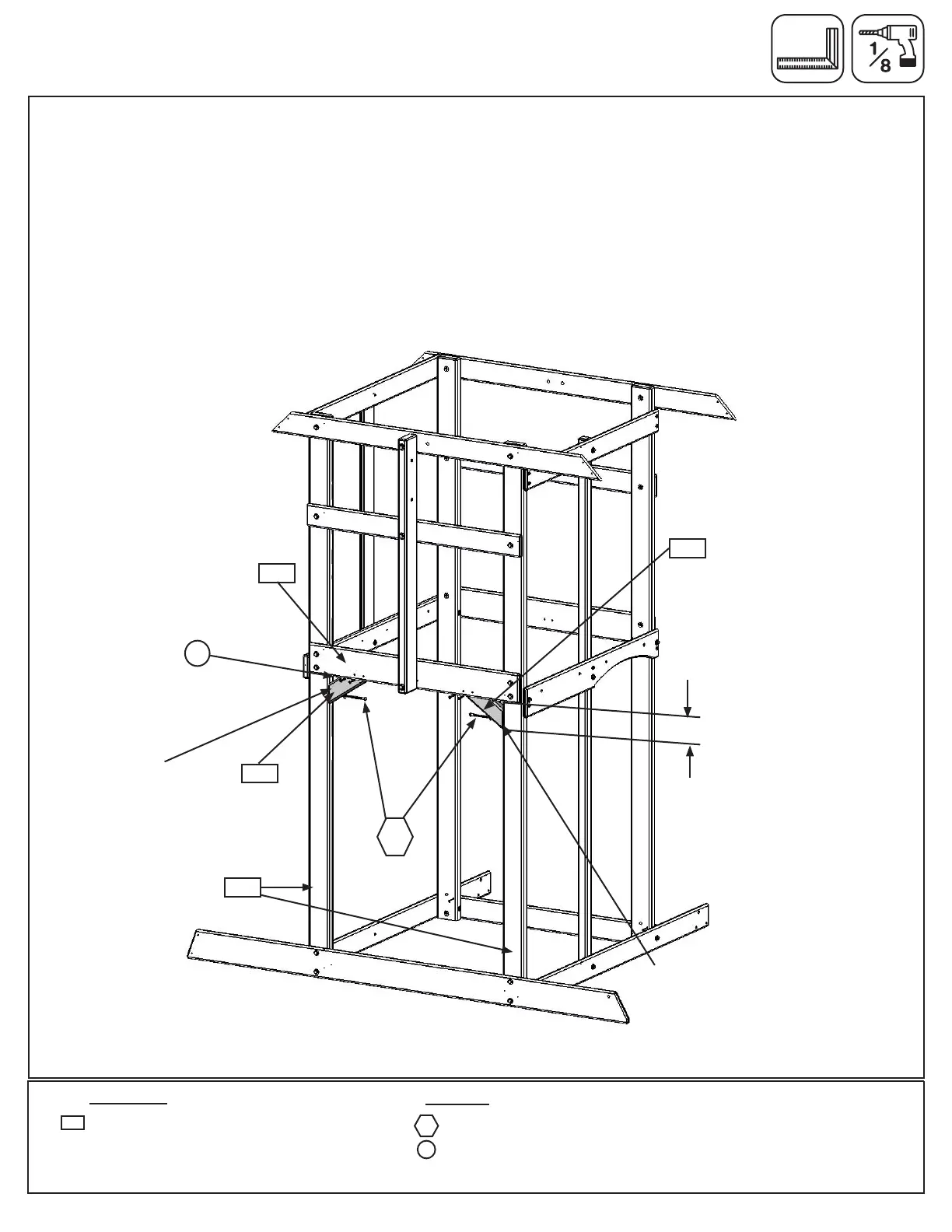

Fig. 11.1
2211
Swing Wall
LS3
x 2 per Gusset
0367
4-3/8”
2215
0367
S2
with 1/4”
at washer
Flush
Flush
