KidKraft WINDALE - Attach Gap and Floor Boards

29
Floor Boards
Wood Parts
Hardware
Fig. 13.1
35 x #8 x 1-1/2” Wood Screw
2 x Cedar Gap Board 1 x 6 x 35-3/4”
1 x Centre Gap Board 1 x 6 x 35-3/4”
4 x Cedar Floor Board 1 x 6 x 35-3/4”
2207
S2
Step 13: Attach Gap and Floor Boards

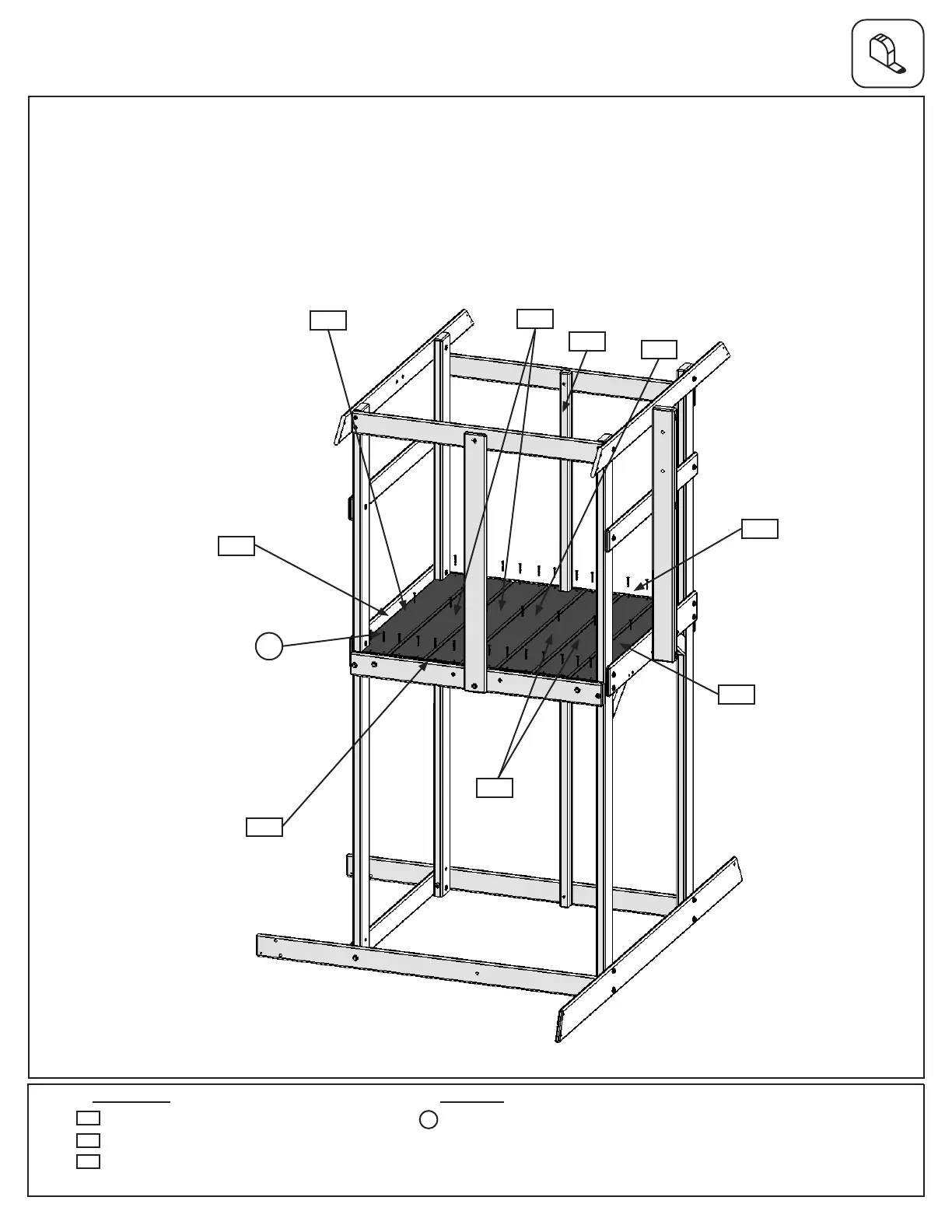

A: Place 1 (2207) Cedar Gap Board at each end of the assembly. Then starting on the Swing Wall side place
2 (2206) Cedar Floor Boards, 1 (2208) Centre Gap Board so the gap in the board ts around the (2213) Front
Divider, and 2 more (2206) Cedar Floor Boards. Make sure all boards are evenly spaced. (g. 13.1)
B: Attach all boards to (1761) Side Joist, (1903) Floor Joist and both (2218) Short Joists with 5 (S2) #8 x 1-1/2”
Wood Screws per board. (g. 13.1)
2207
S2
2218
1903
2206
2208
2206
2208
x 35
(Hidden under boards)
1761
(Hidden under boards)
(Hidden under boards)
Swing Wall
2213
2207
2206
