KidKraft WINDALE - Glider Assembly

52
Glider Rope
and Chain
Glider End
5/16 Flat
Washers
Glider Seat
5/16 x 6” Hex
Bolt
5/16 Flat
Washer-Zinc
5/16 Lock
Nuts
5/16 Flat
Washer-Zinc
5/16 Lock
Nuts
WARNING: Bolt must not
exceed 1/2 thread past the nut
5/16 Lock
Nuts
2 x Glider Ends
1 x Glider Seat
1 x Glider Rope and Chain (pkg of 4)
2 x 5/16 x 6” Hex Bolt
(5/16” at washer x 2, 5/16” lock nut)
8 x 5/16” Flat Washer
4 x 5/16” Lock Nut
Z
Hardware Other Parts

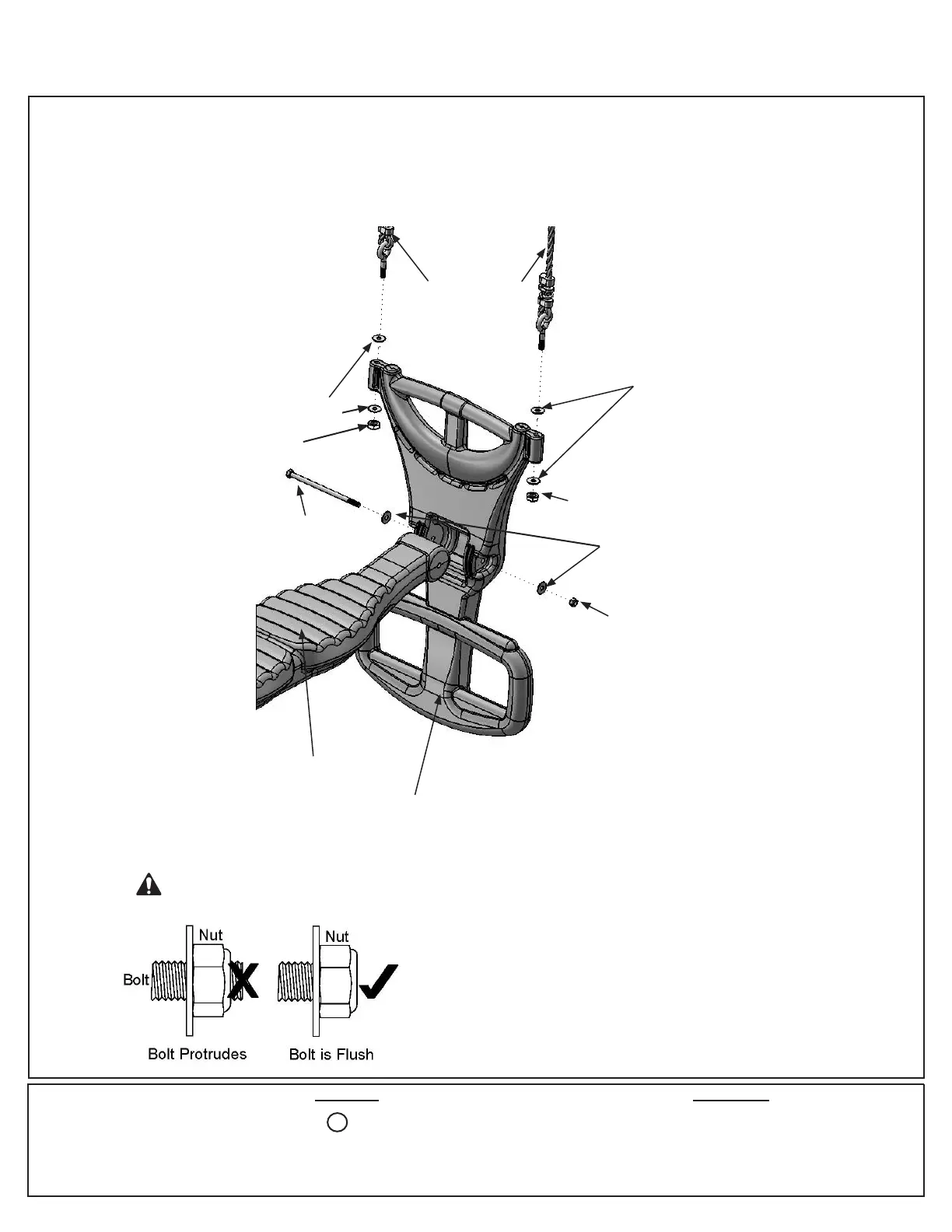

Fig. 32.1
Step 32: Glider Assembly
A: Attach 1 Glider End to the Glider Seat using 1 (Z) 5/16 x 6” Hex Bolt (with 2 at washers and 1 lock nut).
Repeat for the second Glider End. (g. 32.1)
B: Install 2 Glider Rope with Chains into each Glider End using 2 - 5/16” Flat Washers and 1 Lock Nut per rope.
(g. 32.1)
