Assemble Front Wall
Step 9: Front Wall Assembly
A: With both the Front and Back Walls facing each other, on the side with longer extension of (1935) Side Roof,
loosely attach (2210) Front Back Ground to the (2215) Posts with 2 (H4) 1/4 x 4” Hex Bolts (with lock washer, at
washer and t-nut). (g. 9.1)
B: Approximately half way up the wall loosely attach (2212) Floor Front to both (2215) Posts with 2 (H4) 1/4 x 4”
Hex Bolts (with lock washer, at washer and t-nut). The arch should be on the right side of the wall. (g. 9.1)
C: Loosely attach (2213) Front Divider to (2210) Front Back Ground, (2212) Floor Front and (1906) Top Front
Back with 1 (H2) 1/4 x 2” Hex Bolt (with lock washer, at washer and t-nut) per board. (g. 9.1)
Wood Parts Hardware
4 x 1/4 x 4” Hex Bolt (1/4” lock washer, 1/4” at washer, 1/4” t-nut)
7 x #12 x 2 Pan Screw (3/16” at washer)
3 x 1/4 x 2” Hex Bolt (1/4” lock washer, 1/4” at washer, 1/4” t-nut)
1 x Front Back Ground 1 x 4 x 53”
1 x Floor Front 1 x 5 x 38-1/2”
1 x Front Divider 2 x 2 x 81”
1 x Top Front Back 1 x 4 x 38-1/2”
2210
H2
2212
2213
S7
H4
with 3/16”
at washer
1906
D: Make sure (1906) Top Front
Back is level then attach to both
(2215) Posts using 4 (S7) #12
x 2” Pan Screws (with 3/16” at
washers). (g. 9.1)
E: Make sure the assembly is
square, then attach (2212) Floor
Front to the posts and (2213)
Front Divider with 3 (S7) #12 x
2” Pan Screws (with 3/16” at
washers), as shown in g. 9.1.
F: Tighten all bolts.
H2
1935
1906
2213
2212
2210
S7
1935
Notice longer end.
with 3/16”
at washer
H4
S7
1/4” lock
washer
1/4” at
washer
1/4”
t-nut
x 4
H2
H4
with 3/16”
at washer
S7

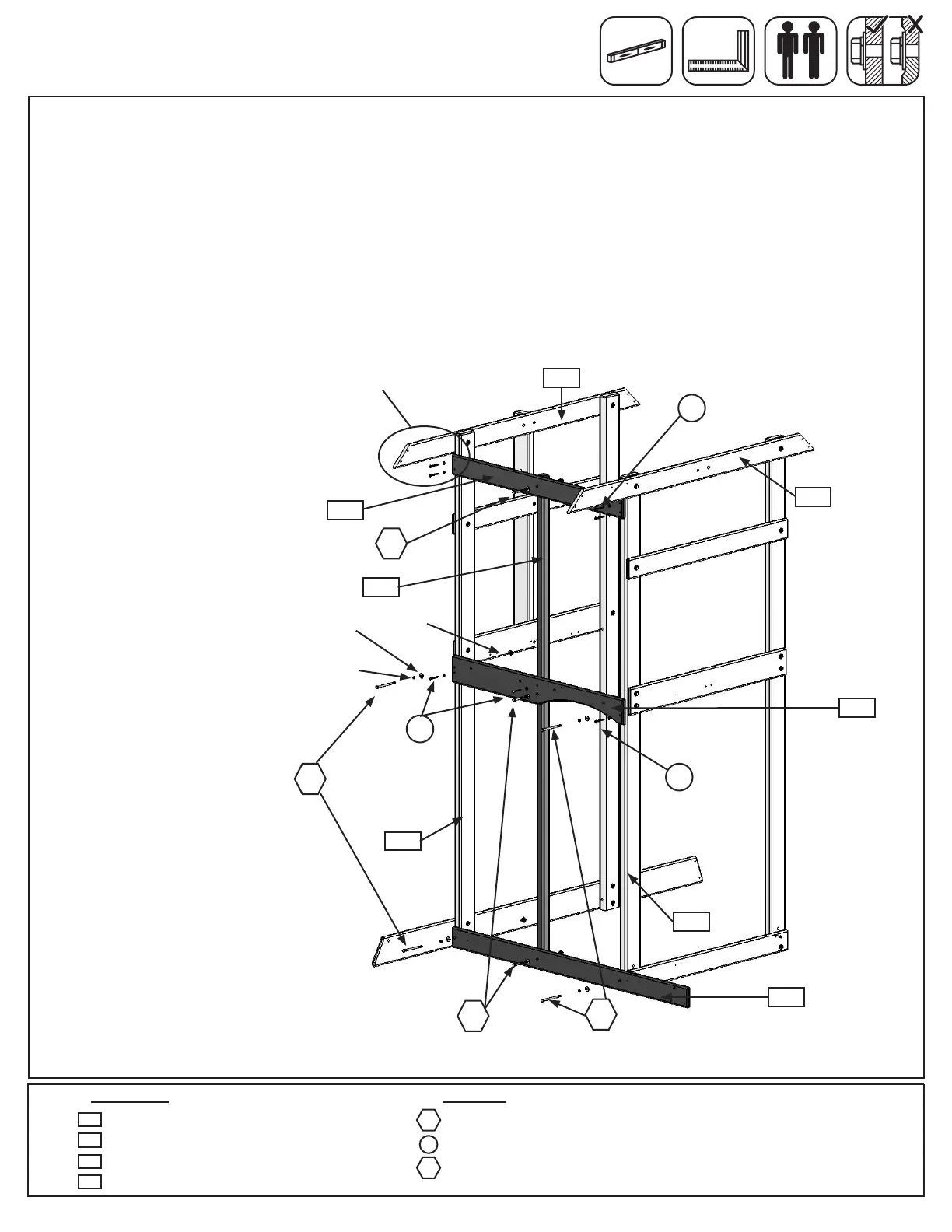

Fig. 9.1
