KidKraft WINDALE - Page 22

22
Flush to edge
Overlap cedar roong
S0
1930
1930
S0
x 36 per side
1-1/2”
for bottom row
only (each side)
Roof Supports
removed for
clarity
Flush to edge
1424
1424

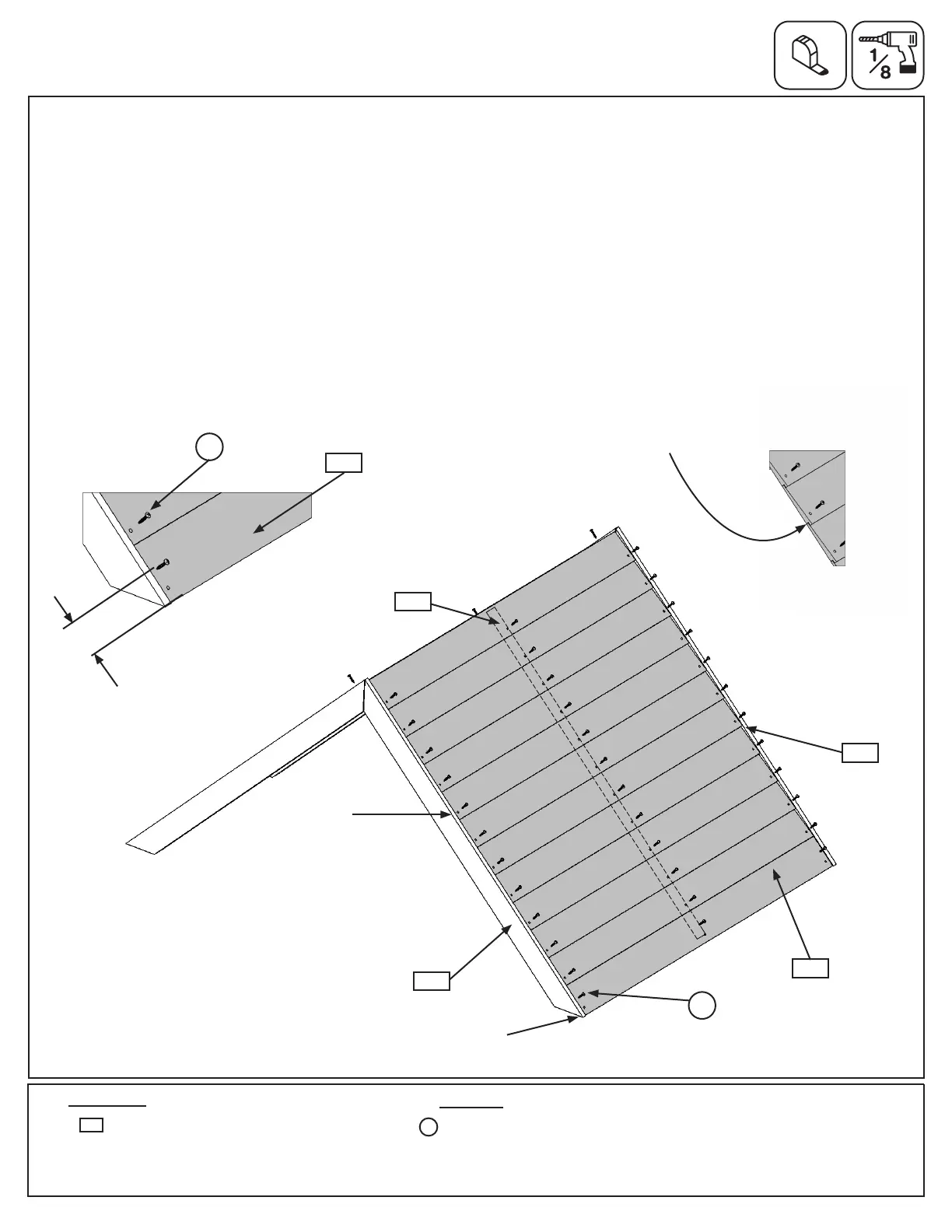

Step 6: Roof Assembly
Part 2
D: Starting at the top of the Roof Support Assembly attach 1 (1930) Siding on each side of the (1424) Roof
Supports and (1425) Roof Joists with 3 (S0) #8 x 7/8” Truss Screws per board. (g. 6.2) Be sure to overlap the top
of the boards so there are no gaps. (g. 6.3)
E: Drill a hole 1-1/2” up from the bottom of the 2 bottom (1930) Siding (for bottom row only). Attach 1 (1930)
Siding at the bottom of the Roof Support Assembly on each side, making sure they are ush to each (1424) Roof
Support with 3 (S0) #8 x 7/8” Truss Screws. (g. 6.2 and 6.4)
F: On one side of the assembly evenly space and attach 10 (1930) Siding, leaving no gaps, with 3 (S0) #8 x 7/8”
Truss Screws per board. There should be 12 (1930) Siding on this side. (g. 6.2)
G: On the other side of the assembly evenly space and attach 10 (1930) Siding, leaving no gaps, with 3 (S0) #8 x
7/8” Truss Screws per board. (g. 6.2)
Fig. 6.2
Wood Parts
Hardware
72 x #8 x 7/8” Truss Screw
24 x Siding 3/8 x 3-1/2 x 41-1/2”
1930
S0
Fig. 6.3
Fig. 6.4
1425
