KidKraft WINDALE - Page 43

43
Step 25: Door Assembly
Part 2
F: On the outside face of the Door Assembly place Small Window in the window gap and attach with 8 (S13) #6
x 5/8” Pan Screws. (g. 25.3)
G: On the outside of the Door Assembly place 1 Door Handle centred over the top (2230) Door Cross, as shown
in g. 25.3, then attach with 2 (S13) #6 x 5/8” Pan Screws.
H: On the opposite side from the Door Handle, on the outside, place 1 Door Hinge ush to the top of the lower
(2230) Door Cross and 1 Door Hinge centred on (2231) Door Arch, as shown in g. 25.3, then attach with 3 (S13)
#6 x 5/8” Pan Screws per hinge.
Note: Hinge stops must be tight to the Door Assembly.
Hardware
16 x #6 x 5/8” Pan Screw
S13
Other Parts
1 x Door Handle
2 x Door Hinge
1 x Small Window
2230

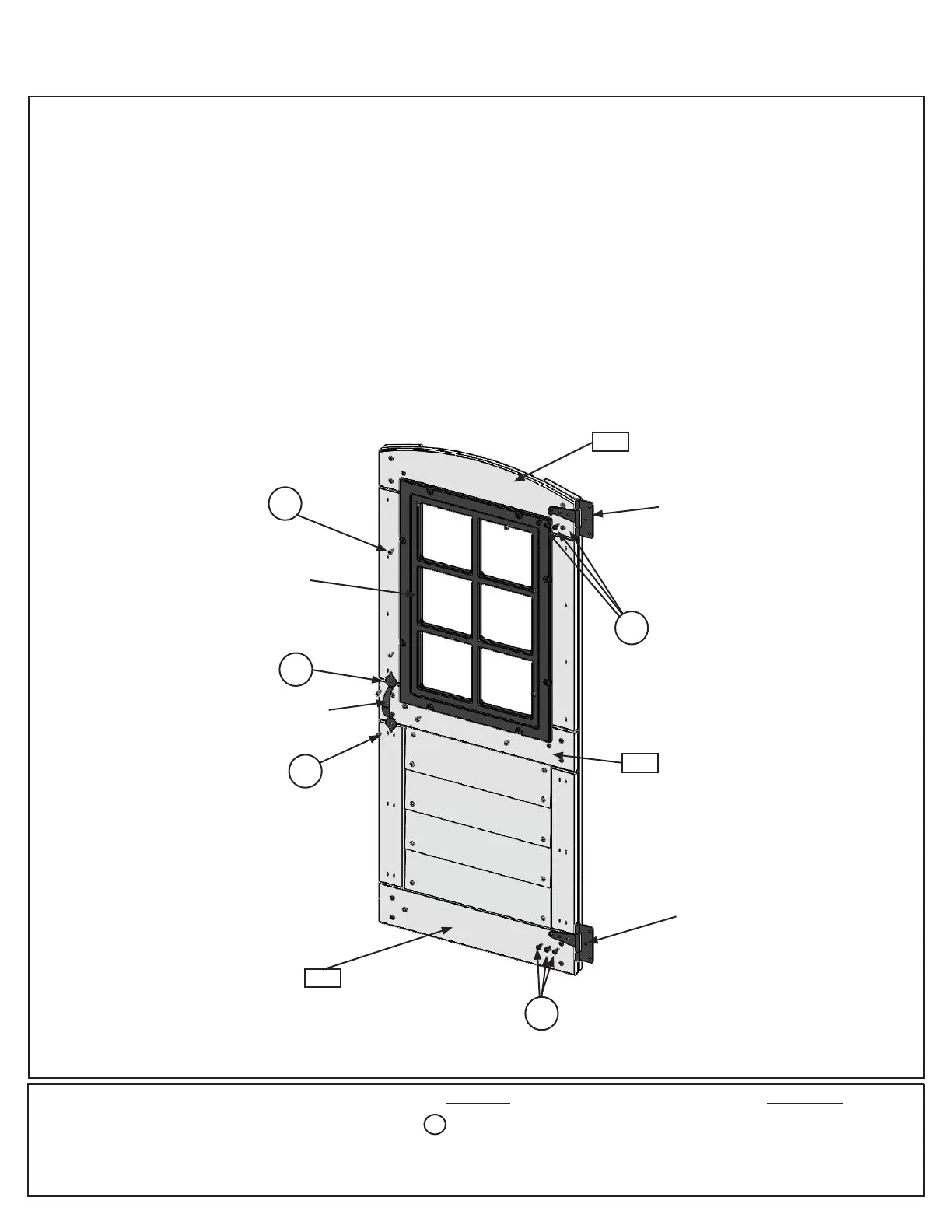

Fig. 25.3
Outside View
Door Handle
2230
2231
S13
S13
S13
S13
Door Hinge
Door Hinge
S13
x 8
Small Window
