Step 25: Door Assembly
Part 3

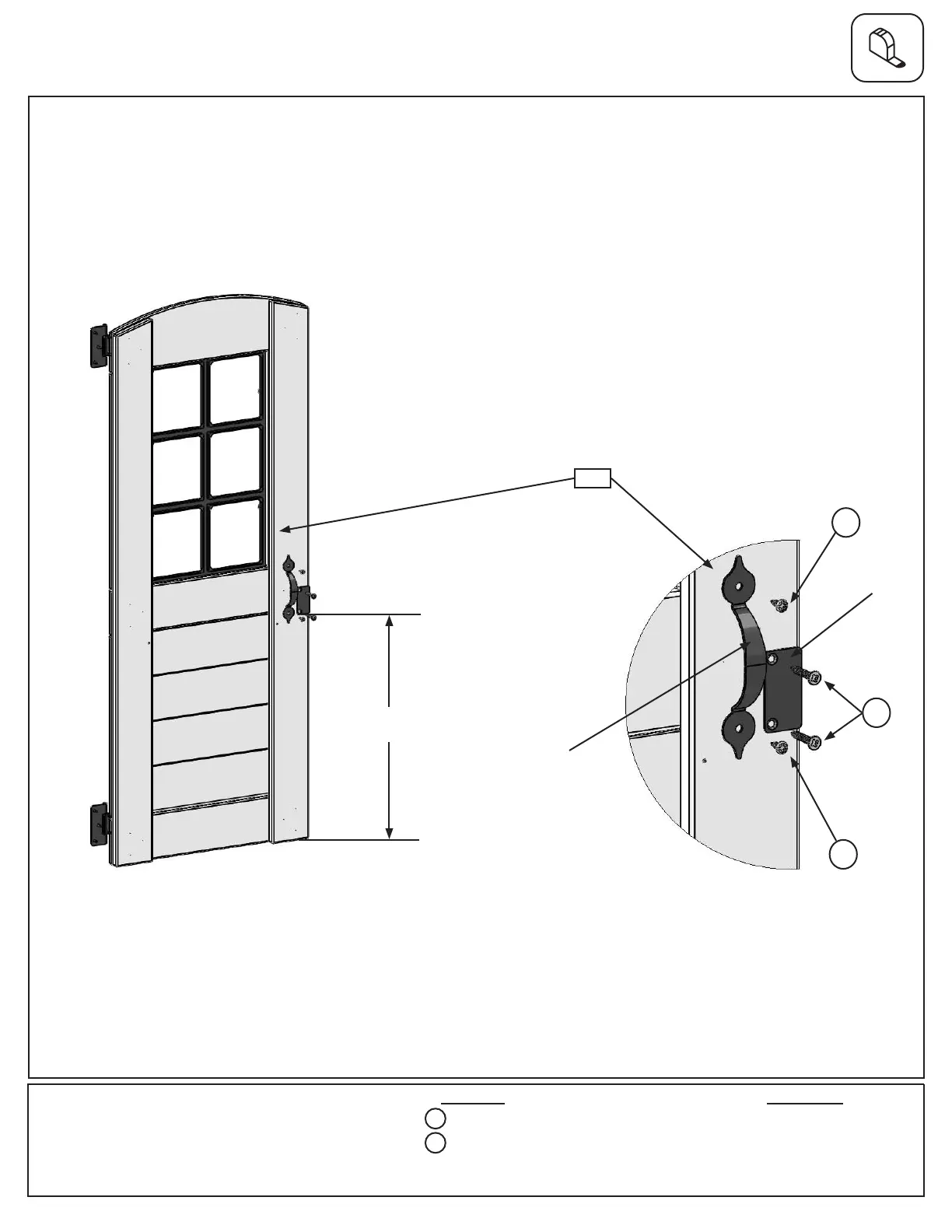

I: On the inside of Door Assembly, measure 16-3/4” up from the bottom of (2058) Door Side Left and attach Catch
Plate using 2 (S18) #6 x 1” Wood Screws. (g.25.4 and 25.5)
J: Place a second Door Handle on the inside of the Door Assembly at approximately the same spot as the rst
then attach with 2 (S13) #6 x 5/8” Pan Screws. (g. 25.4 and 25.5)
Other Parts
1 x Door Handle
1 x Catch Plate
Inside View
Door Handle
Fig. 25.4
Fig. 25.5
Hardware
2 x #6 x 1” Wood Screw
2 x #6 x 5/8” Pan Screw
S18
S13
S18
S13
16-3/4”
S13
2058
Catch Plate
