Step 28: Attach Roof to Fort
Part 2
Hardware
8 x #8 x 1-1/2” Wood Screw
S2

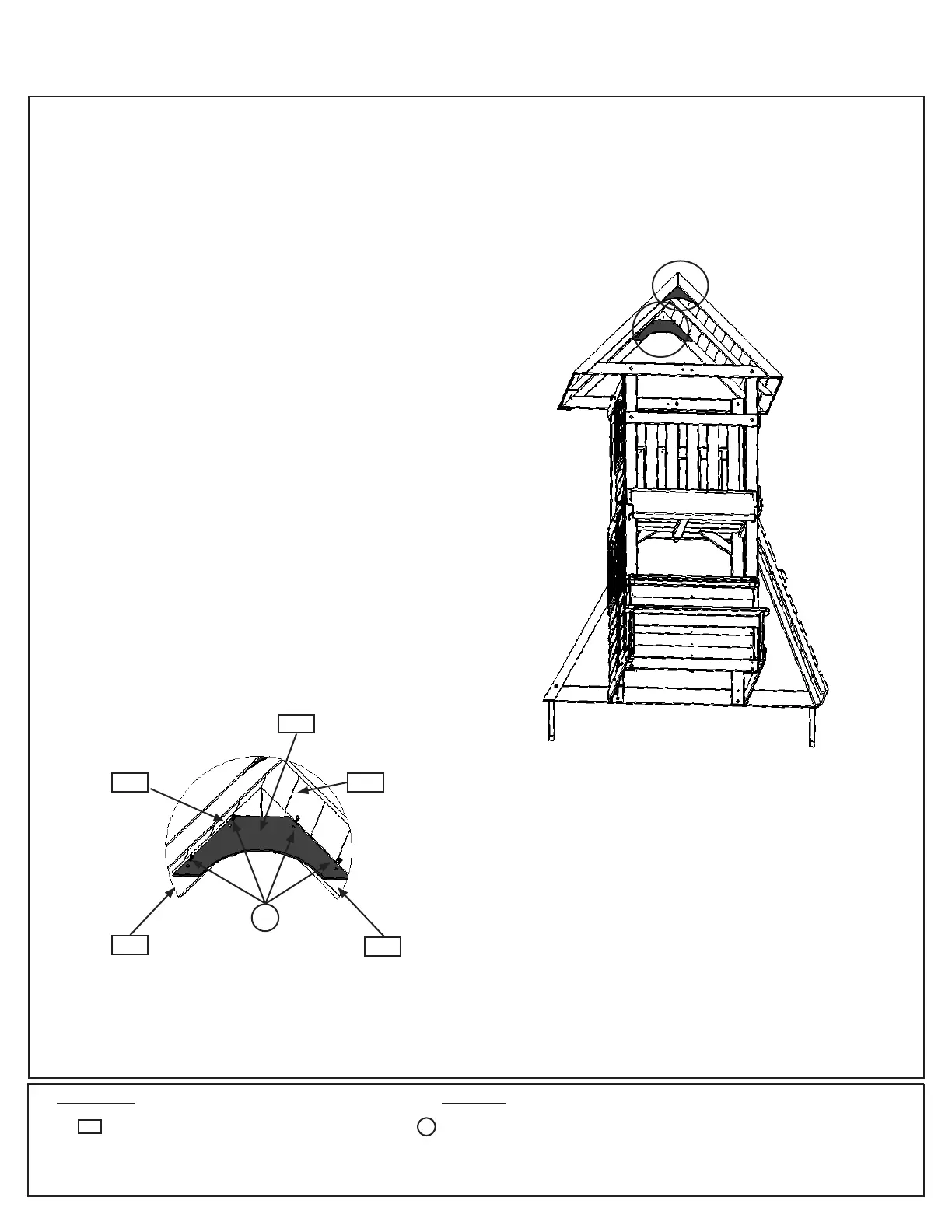

C: On this inside of the assembly attach 1 (1663) Roof Arch to each (1424) Roof Support Assembly with 4 (S2)
#8 x 1-1/2” Wood Screws per arch. The sides of the arch should be tight to the (1930) Siding. (g. 28.3 and
28.4)
Wood Parts
2 x Roof Arch 1 x 6 x 16”
1663
Fig. 28.3
Fig. 28.4
S2
Inside View
1663
1424
1424
19301930
