Kinco SV100 Series User Manual

33
A2.05 Interval of Jog operation
0.0～100.0s【0.0】
Interval of Jog operation (A2.05) is the interval from the
time when the last Jog operation command is ended to
the time when the next Jog operation command is
executed.
The jog command sent during the interval will not be
executed. If this command exists until the end of the
interval, it will be executed.
A2.06 Skip frequency 1
0.00～300.0Hz【0.00Hz】
A2.07 Range of skip
frequency 1
0.00～30.00Hz【0.00Hz】
A2.08 Skip frequency 2
0.00～300.0Hz【0.00Hz】
A2.09 Range of skip
frequency 2
0.00～30.00Hz【0.00Hz】
A2.10 Skip frequency 3
0.00～300.0Hz【0.00Hz】
A2.11 Range of skip
frequency 3
0.00～30.00Hz【0.00Hz】

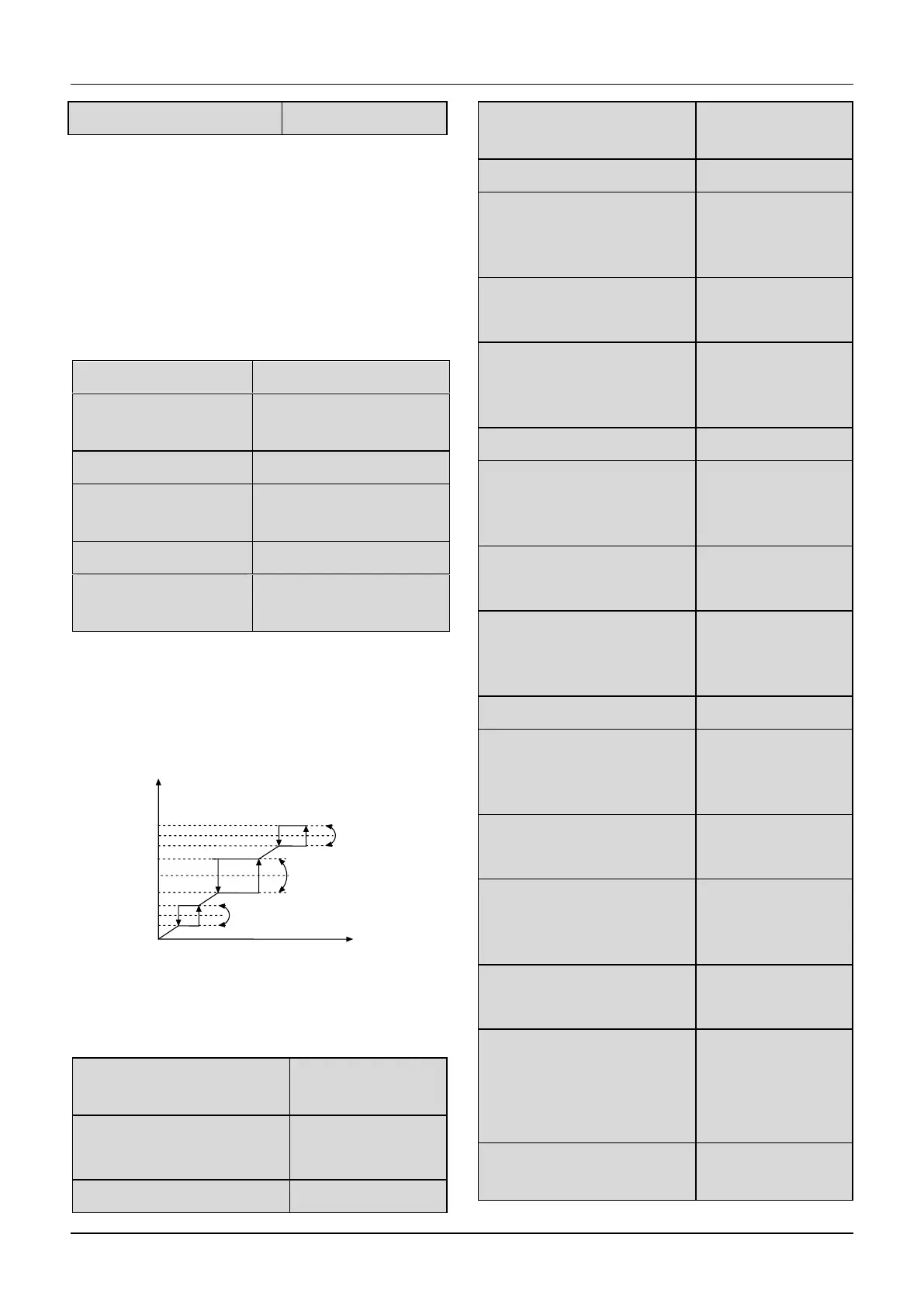

A2.06～A2.11 define the output frequency that will
cause
resonant with the load, which should be avoided.
Therefore, the drive will skip the above frequency as
shown in Fig. 6-7. Up to 3 skip frequencies can be set.
Fig.6-7 Skip frequency and skip range
6.4 Group A3
A3.00 Reference frequency
curve selection
0000～3333H【0000】
A3.01 Max reference of curve
1
A3.03 ～ 110.0%
【100.0%】
A3.02 Actual value
0.0% ～ 100.0%
corresponding to the Max
reference of curve 1
【100.0%】
A3.03 Min reference of curve 1
0.0%～A3.01【0.0%】
A3.04 Actual value
corresponding to the Min
reference of curve 1
0.0% ～ 100.0%
【0.0%】
A3.05 Max reference of curve
2
A3.07 ～ 110.0%
【100.0%】
A3.06 Actual value
corresponding to the Max
reference of curve 2
0.0% ～ 100.0%
【100.0%】
A3.07 Min reference of curve 2
0.0%～A3. 05【0.0%】
A3.08 Actual value
corresponding to the Min
reference of curve 2
0.0% ～ 100.0 ％
【0.0%】
A3.09 Max reference of curve
3
A3.11 ～ 110.0%
【100.0%】
A3.10 Actual value
corresponding to the Max
reference of curve 3
0.0% ～ 100.0%
【100.0%】
A3.11 Min reference of curve 3
0.0%～A3. 09【0.0%】
A3.12 Actual value
corresponding to the Min
reference of curve 3
0.0% ～ 100.0 ％
【0.0%】
A3.13 Max reference of curve
4
A3.15 ～ 110.0%
【100.0%】
A3.14 Actual value
corresponding to the Max
reference of curve 4
0.0% ～ 100.0%
【100.0%】
A3.15 Reference of inflection
point 2 of curve 4
A3.17 ～ A3.13
【100.0%】
A3.16 Actual value
corresponding to the Min
reference of inflection point 2
of curve 4
0.0% ～ 100.0%
【100.0%】
A3.17 Reference of inflection
point 1 of curve 4
A3.19～A3.15【0.0%】
Skip
Frequency 1
Skip
Frequency 2
Skip
frequency 3
Adjusted preset
frequency
Skip range 1
Skip range 2
Skip range 3
Preset
frequency
