Kinco SV100 Series User Manual

20
Chapter 5 Operation Instructions of Kinco VFD
In this chapter we introduce the necessary knowledge of Kinco VFD and related operations.
5.1 Using Operation Panel
5.1.1 Operation panel appearance and keys’ function description
Operation panel is used to setup the drive and display parameters, it is LED display . As shown in Fig.5-1

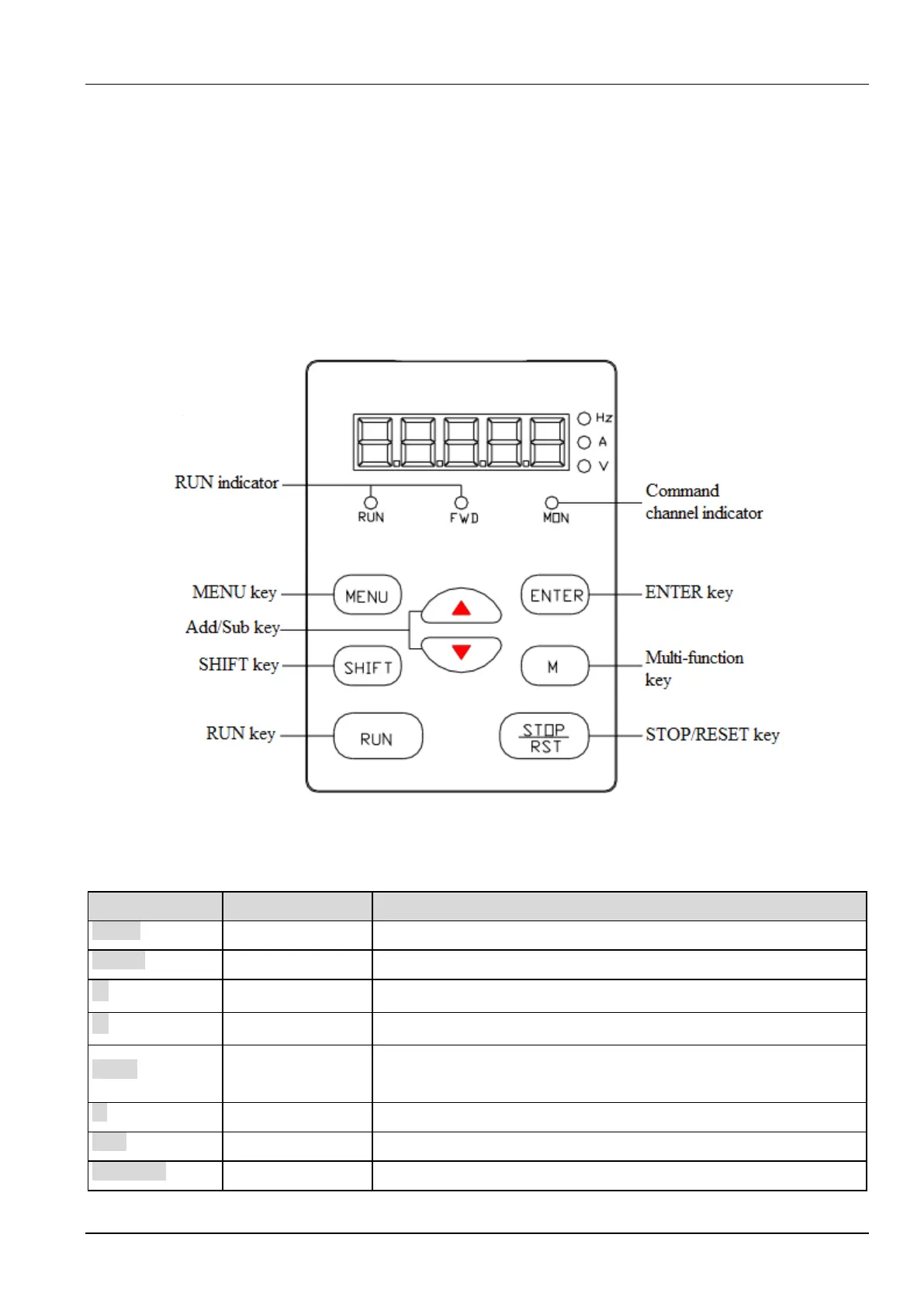

Fig.5-1 Illustration of operation panel
There are 8 keys on the operation panel and functions of each key are shown in Table 4-1.
Table 5-1 Function list of operation panel
Key
Name
Function
MENU
Program/ exit key
Enter or exit programming status
ENTER
Function/ data key
Enter next level menu or confirm data
∧
Increase key
Increase data or parameter
∨
Decrease key
Decrease data or parameter
SHIFT
Shift key
In editing status, pressing this key select the Bit to be modified. In other
status, this key is used to scroll through the parameters.
M
Multi-function key
Use the b4.02 to cofigure thw function of this key
RUN
Run key
In panel control mode, press this key to run the drive.
STOP/RST
Stop/reset key
Press this key to stop or reset the drive.
