Kinco SV100 Series User Manual

13
Applicable Model: SV100-4T-0055G～SV100-4T-0220G
Applicable Model: SV100-4T-0300G～SV100-4T-0900G

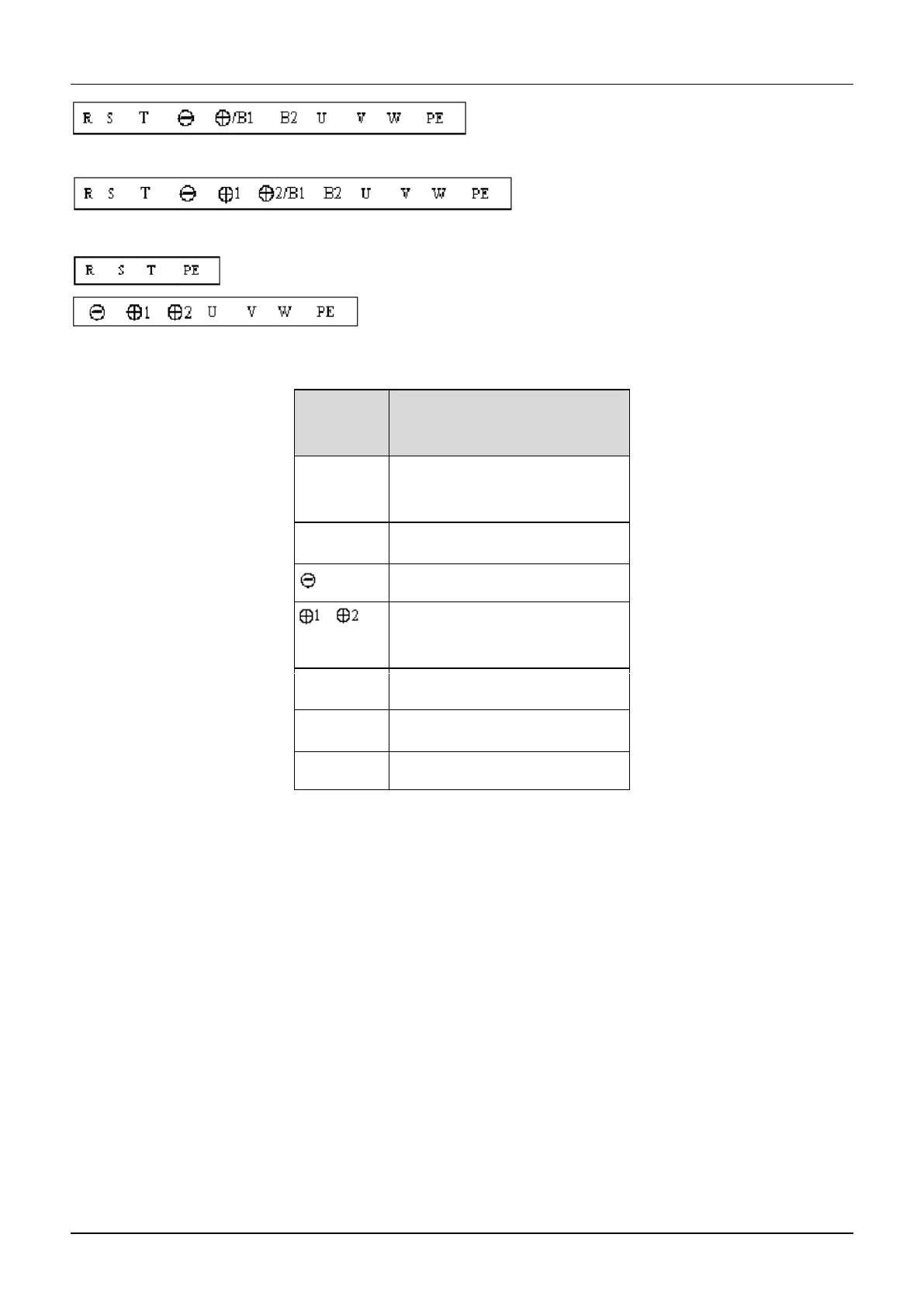

Table 4-1 Description of main loop terminal
Terminal
name
Function description
L、N
Single phase 220VAC input
terminal
R、S、T
3-phase 380V AC input termianl
DC negative bus output terminal
、
Resvered terminal for extermianl
DC reactor
B1、B2
Braking resistor terminal
U、V、W
3-phase AC output terminal
PE
Shield PE terminal
4.1.2 Wiring of VFD for Basic Operation
Applicable model: SV100-4T-045G/0550G
