5.1.4 Panel Operation
Varous operations can be completed on the operation panel; the following are 5 common examples. Refer to function
code list in chapter 9 for detail function code description.
Example 1：Set parameters
Example: Change the value in A0.03 from 50.00Hz to 30Hz
1. In the stop parameter displaying state, press MENU to enter the fiest level A0.00;
2. Press ∧ to change A0.00 to A0.03;
3. Press ENTER to enter the second level menu
4. Press the SHIFT to change the marker to the highest bit
5. Press the ∨ to change the 50.00 to 30.00
6. Press the ENTER to confirm above change and back to the fist level menu. Then the parameter is changed
successfully.

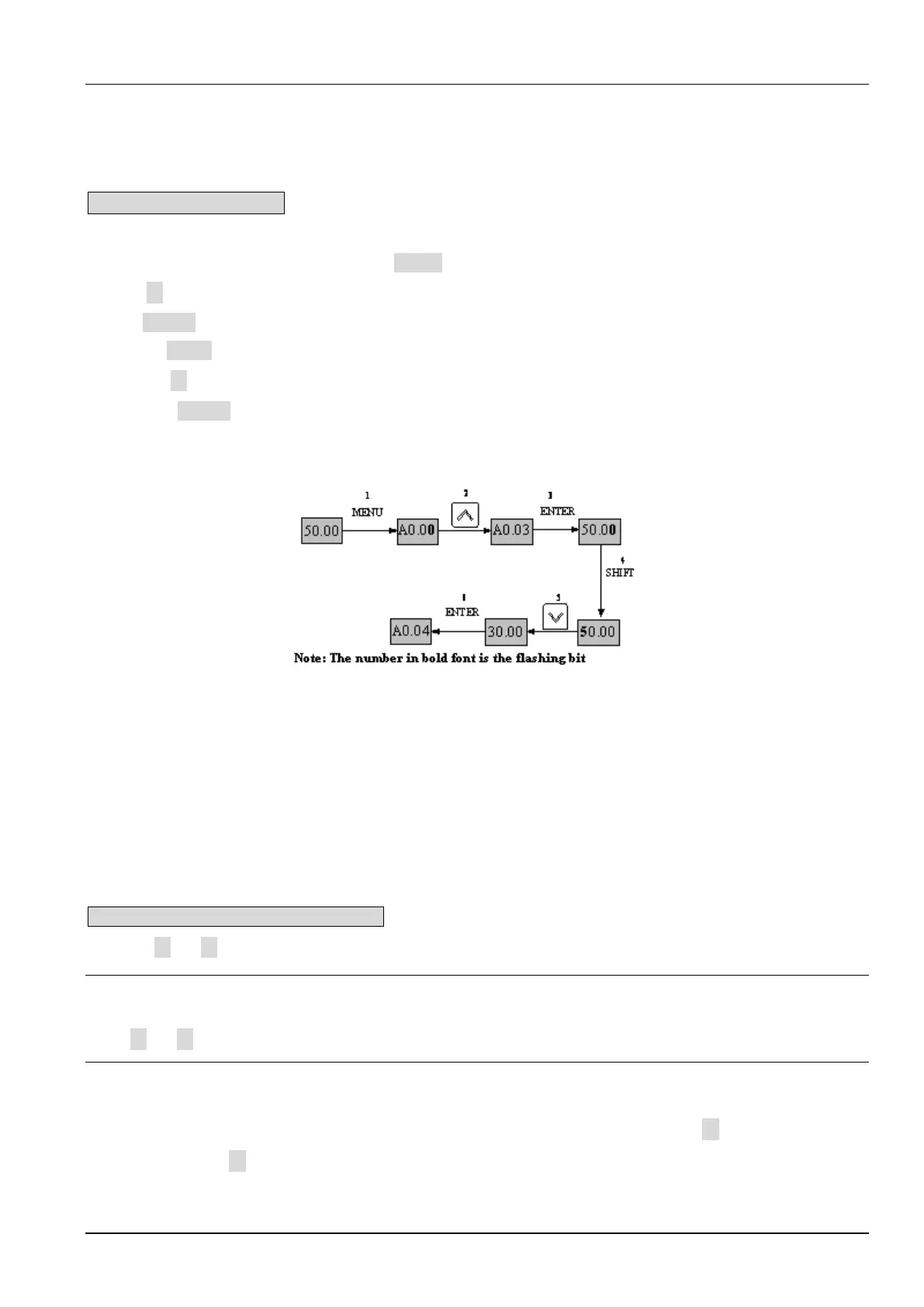

The above operations are shown in following picture.
Fig 5-2 Example of setting parameter
In function parameter displaying status, if there is no bit flashing. It means that this function code can not be changed,
the possible reason are:
1. This function code is unchangeable parameter. Like actual detected parameter, operation log parameter and so on
2. This parameter can not be changed when operating; you need stop the VFD to edit the parameter
3. The parameters are protected. When the b4.02 is 1, function code can not be changed. It is to protect the VFD from
wrong operatingon. If you want to edit this parameter, you need set function code b4.02 to 0.
Example 2: Regulate the setting frequency
Press the ∧ or ∨ to change the setting frequency directly when power on VFD
Note:
When the Operating Speed, Setting Speed, Operating Line Speed, and Setting Line Speed is displayed on the panel.
Press ∧ or ∨ is to modify the value of Setting Speed and Setting Line Speed.
Example: changing the setting frequency from 50.00Hz to 40.00Hz.
After the VFD power on (in this example the LED is in voltage display status AI1), Press ∨ to modify the setting
frequency (Holding ∨ can speed up the modification) from 50.00Hz to 40.00Hz. So the setting frequency is
modified.
