Kinco SV100 Series User Manual

53
C0.03 Preset frequency 4
Lower limit of
frequency~upper limit of
frequency【30.00Hz】
C0.04 Preset frequency 5
Lower limit of
frequency~upper limit of
frequency【40.00Hz】
C0.05 Preset frequency 6
Lower limit of
frequency~upper limit of
frequency【45.00Hz】
C0.06 Preset frequency 7
Lower limit of
frequency~upper limit of
frequency【50.00Hz】
C0.07 Preset frequency 8
Lower limit of
frequency~upper limit of
frequency【5.00Hz】
C0.08 Preset frequency 9
Lower limit of
frequency~upper limit of
frequency【10.00Hz】
C0.09 Preset frequency
10
Lower limit of
frequency~upper limit of
frequency【20.00Hz】
C0.10 Preset frequency
11
Lower limit of
frequency~upper limit of
frequency【30.00Hz】
C0.11 Preset frequency
12
Lower limit of
frequency~upper limit of
frequency
【
40.00Hz
】
C0.12 Preset frequency
13
Lower limit of
frequency~upper limit of
frequency
【
45.00Hz
】
C0.13 Preset frequency
14
Lower limit of
frequency~upper limit of
frequency
【
50.00Hz
】
C0.14 Preset frequency
15
Lower limit of
frequency~upper limit of
frequency
【
50.00Hz
】
These frequencies will be used in multi-step speed
operation, refer to the introductions of No.27,28,29 and
30 function of A6.00～A6.04.
6.16 Group C1
Process close-loop control
The process closed-loop control type of SV100 is analog

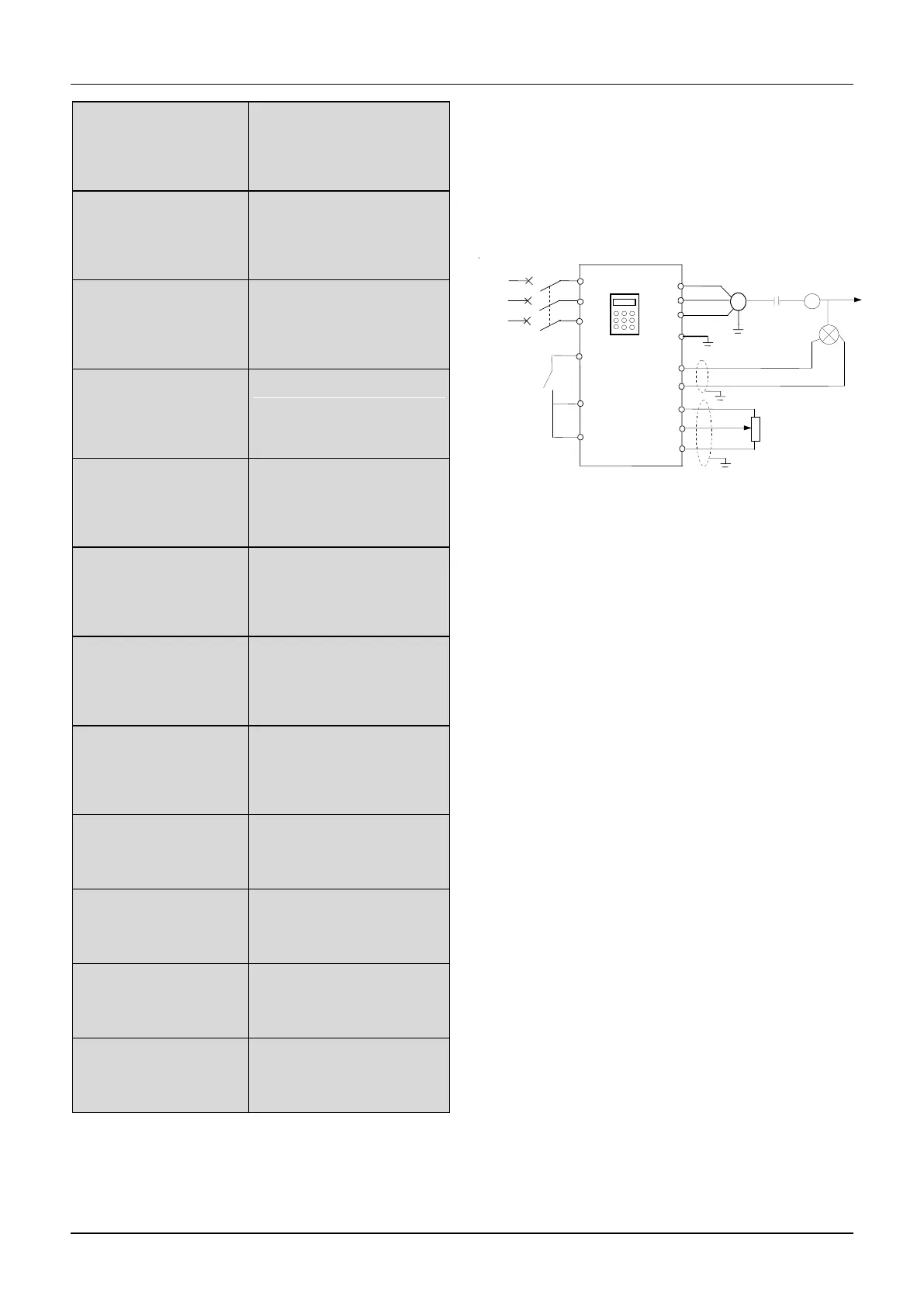

close-loop control. Fig.6-38 shows the typical wiring of
analog close-loop control.
Fig.6-38 Analog feedback control system with
internal process close-loop
Analog feedback control system:
An analog feedback control system uses a pressure
transmitter as the feedback sensor of the internal
close-loop.
SV100
U
M
QF
+10V
+10V
AI1
Xi
COM
P
AC
input
Pressure
transmitter
Output
V
W
PE
-10V
AI2
R
S
T
GND
