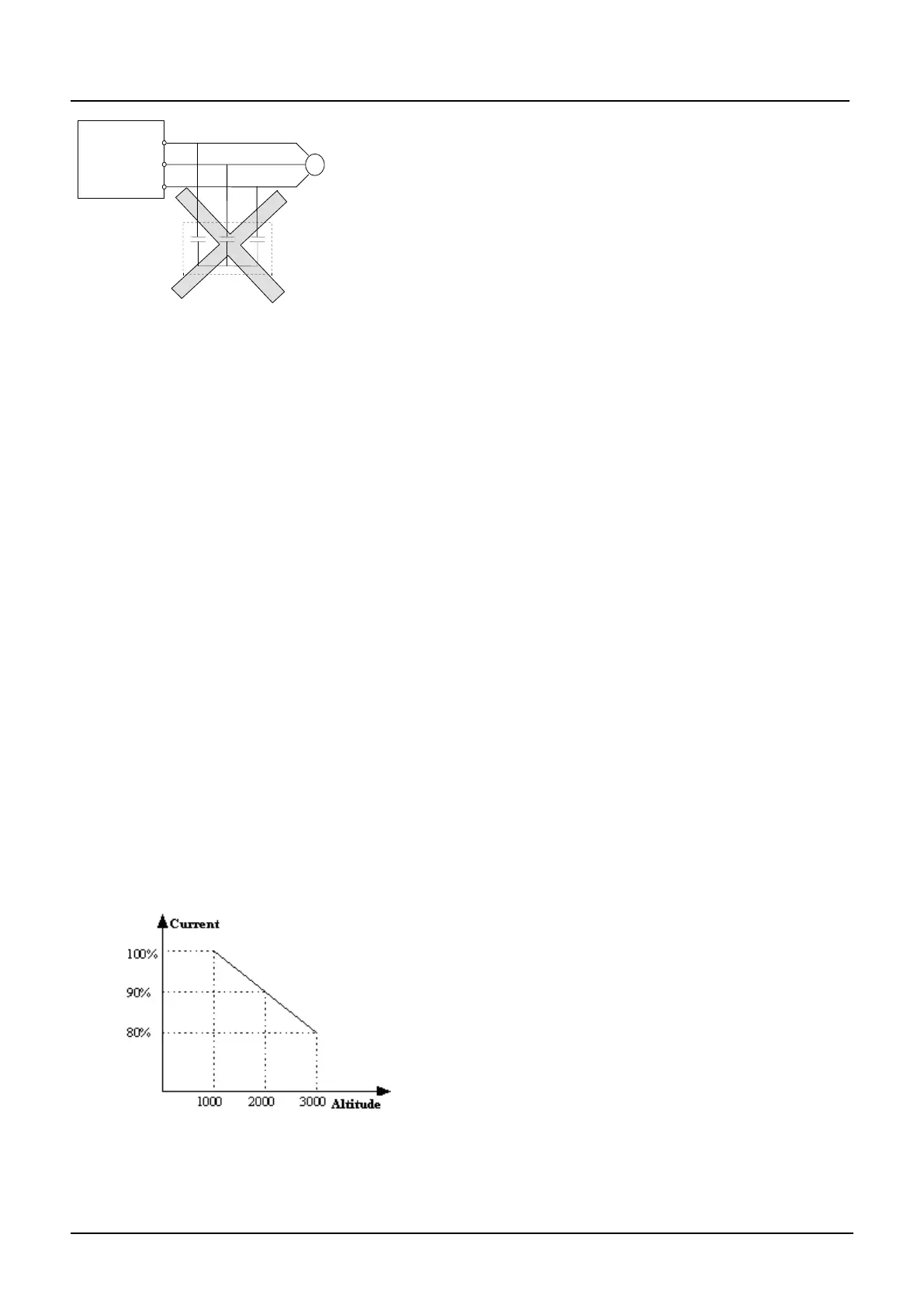

Fig. 1-2 Capacitors are prohibited to be used.
Circuit breakers connected to the output of VFD
If circuit breaker or contactor needs to be connected
between the drive and the motor, be sure to operate these
circuit breakers or contactor when the drive has no
output, to avoid damaging of the drive.
Using VFD beyond the range of rated voltage
The drive is not suitable to be used out of the
specified range of operation voltage. If needed, please
use suitable voltage regulation device.
Protection from lightning
There is lightingstrike overcurrent device inside the
Drive which protects it against lighting.
Derating due to altitude
Derating must be considered when the drive is
installed at high altitude, greater than 1000m. This is
because the cooling effect of drive is deteriorated due to
the thin air, as shown in Fig.1-3 that indicates the
relationship between the altitude and rated current of the
driver.
Fig. 1-3 Derating Drive's output current with altitude
1.4 Disposing Unwanted Driver
When disposing the VFD, pay attention to the following
issues:
The electrolytic capacitors in the driver may explode
when they are burnt.
Poisonous gas may be generated when the plastic parts
like front covers are burnt.
Please dispose the drive as industrial waste.
