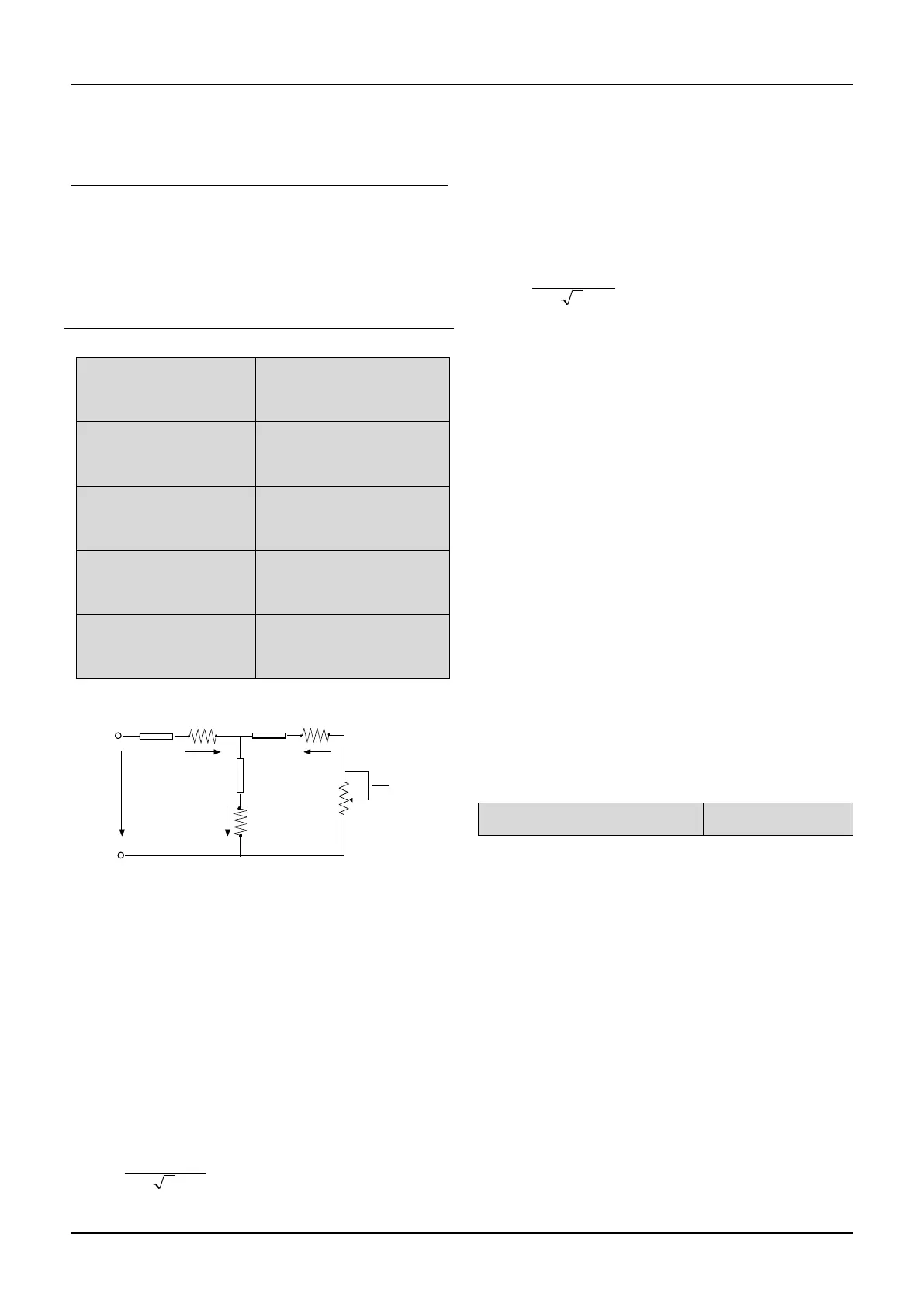

Kinco SV100 Series User Manual

47
In order to ensure the control performance, please set
b0.00~b0.05 with reference to the values on the motor’s
nameplate.
Note:
The motor’s power should match that of the
drive.Generally the motor’s power is allowed to be
lower than that of the drive by 20% or bigger by 10%,
otherwise the control performance cannot be ensured.
b0.06 Resistance of
stator %R1
0.00～50.00％【dependent
on drive’s model】
b0.07 Leakage
inductance %Xl
0.00～50.00％【dependent
on drive’s model】
b0.08 Resistance of
rotor %R2
0.00～50.00％【dependent
on drive’s model】
b0.09 Exciting
inductance %Xm
0.0～2000.0％【dependent
on drive’s model】
b0.10 Current without
load I0
0.1～999.9A【dependent
on drive’s model】
See Fig. 6-33 for the above parameters.
R
1
jX
11
R
2
jX
21
I
1
I
2
I
0
X
m
U
1
1-S
S
R
2
Fig. 6-33 Motor’s equivalent circuit
In Fig. 6-33, R1, X1l, R2, X2l, Xm and I0 represent
stator’s
resistance, stator’s leakage inductance, rotor’s resistance,
rotor’s leakage inductance, exciting inductance and
current without load respectively. The setting of b0.07 is
the sum of stator’s leakage inductance and rotor’s
inductance.
The settings of b0.06 ~b0.09 are all percentage values
calculated by the formula below:
％％ 100
)3/(



IV
R
R
（1）
R: Stator’s resistance or rotor’s resistance that is
converted to the rotor’s side;
V: Rated voltage;
I: Motor’s rated current
Formula used for calculating inducatance (leakage
inductance or exciting inductance):
％％ 100
)3/(



IV
X
X
（2）
X: sum of rotor’s leakage inductance and stator’s
leakage inductance (converted to stator’s side)or the
exciting inductance based on base frequency.
V: Rated voltage;
I: Motor’s rated current
If motor’s parameters are available, please set
b0.06~b0.09 to the values calculated according to the
above formula. b0.10 is the motor current without
load,the user can set this parameter directly.
If the drive performs auto-tuning of motor’s
parameters,the results will be written to b0.06~b0.10
automatically.After motor power (b0.00) is changed, the
drive will change b0.02~b0.10 accordingly(b0.01 is the
rated voltage of motor,user need to set this parameter by
manual according to the value on the motor’s
nameplate.)
b0.11 Auto-tuning
0～3【0】
0: Auto-tuning is disabled
1: Stationary auto-tuning (Start auto-tuning to a
standstill motor)
Values on the motor’s nameplate must be input correctly
before starting auto-tuning （ b0.00 ～ b0.05 ） .When
starting auto-tuning to a standstill motor, the stator’s
resistance (%R1), rotor’s resistance (%R2) and the
leakage inductance (%X1) will be detected and written
into b0.06、b0.07 and b0.08 automatically.
2: Rotating auto-tuning
Values on the motor’s nameplate must be input correctly
before starting auto-tuning （ b0.00 ～ b0.05 ） .When
starting a rotating auto-tuning, the motor is in standstill
