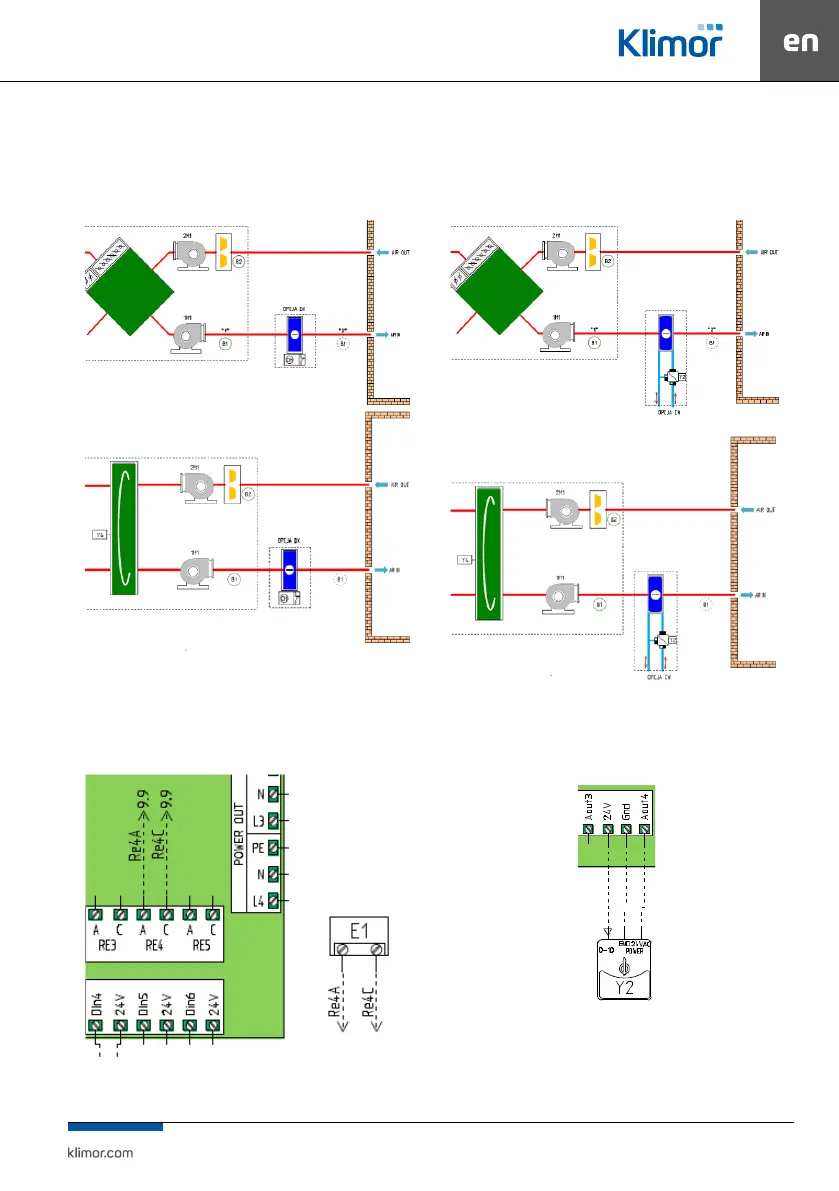

14.2.5 DX cooler [not within delivery]
Install a freon cooler in the supply air section.
Move the air supply temperature sensor from the EVOT+
(„1”) unit downstream the cooler („2”)
Fig. 59
Connect the start signal of the freon cooler from the EVOT
controller (LIYY 2x1 lead)
Fig. 60
14.2.6 Water cooler [not within delivery]
Install the water cooler in the air supply section.
Move the air supply temperature sensor from the EVOT+
(„1”) unit downstream the cooler („2”)
Fig. 61
Install and connect the three-way valve actuator of the wa
-
ter cooler (LIYCY 3x1 lead).
Fig. 62
