Switching from the main page screen to the HMI menu is
done by scrolling the main screen from top to bottom. If
the controller to which the HMI is connected does not con-
tain the main pages, the HMI menu is displayed by default
after switching on the device.

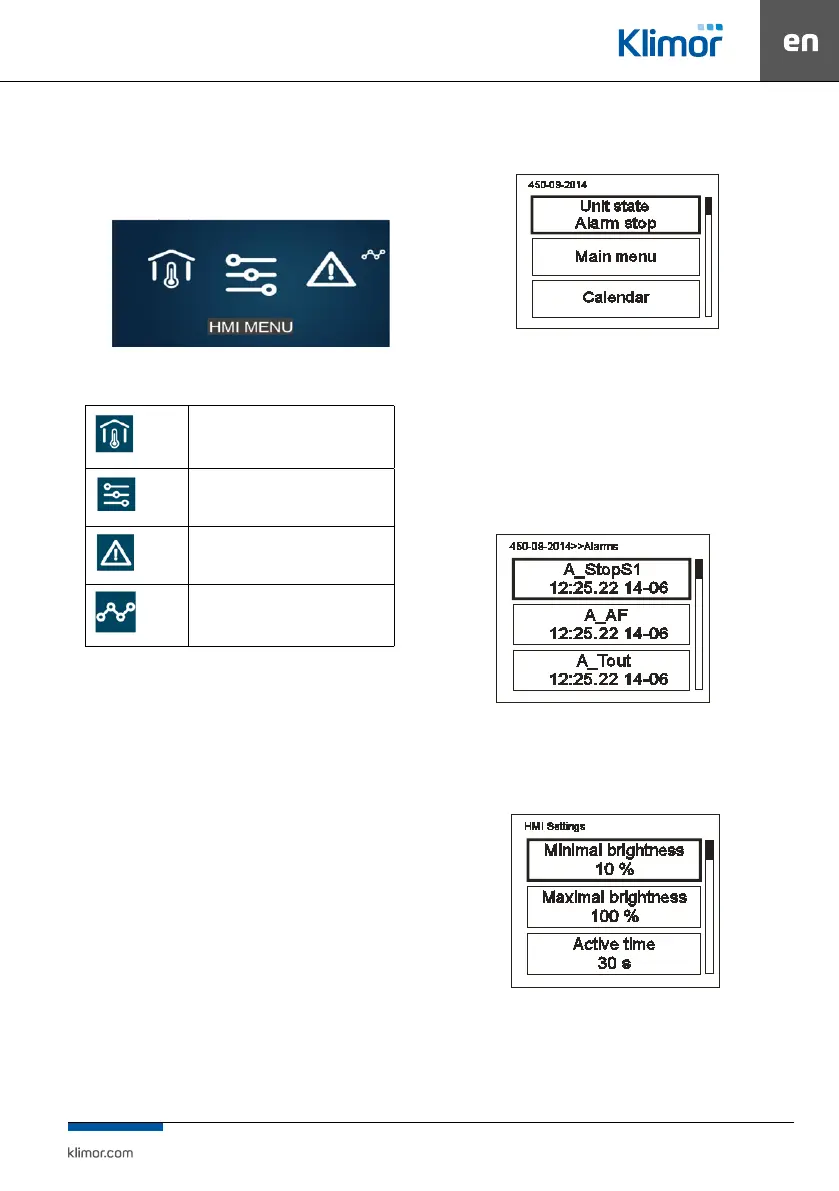

Fig. 24 Navigating through the panel screens
ACCESS TO MAIN SCREENS SCREENS
ACCESS TO MAIN MENU HMI MENU
ACCESS TO ALARM LIST ALARMS.
MOVING TO THE CHART EDITOR CHARTS
The HMI menu contains all parameters enabled by the con-
troller for user review and editing. The menu contains two
types of elements: node and parameter. Nodes are entry
points into the menu. Parameters contain values that can
be read and some of them can also be modied. To enter
the menu or to edit a parameter, press on the selected
HMI item. Alarm status is indicated by red background
colour of HMI menu. To check the alarm status, go to the
Alarm menu.
11.1.1 HMI Control
Switching from the main page screen to the HMI menu is
done by scrolling the main screen from top to bottom. If
the controller to which the HMI is connected does not con-
tain the main pages, the HMI menu is displayed by default
after switching on the device.
The HMI menu contains all parameters made available
by the controller for viewing and editing by the user. The
menu contains two types of elements: node and parame-
ter. Nodes are entry points into the menu. Parameters con-
tain values that can be read and some of them can also be
modied. To enter the menu or to edit a parameter, press
OK. Pressing the C key will exit the menu or cancel the
edition of the parameter. Alarm status is indicated by red
background colour of HMI menu. To check the alarm status,
go to the Alarm menu.
Fig. 25
11.1.2 Alarm menu
You can access the alarm menu by pressing the ALARMS
icon from the SLIDEBAR menu screen. If there is an alarm at
the moment, its name and the date and time of its occur-
rence is in the list. A conrmed alarm is additionally sym-
bolized by an asterisk „*” next to the date and time of occur-
rence. At the end of the list there is a node called „Alarms
history”. Alarms history presents a chronological list of the
last occurrences of each alarm.
Fig. 26
11.1.3 Settings menu
The setting menu is displayed by pressing the screen with
three ngers and holding down for 3 seconds.
Fig. 27
